Description

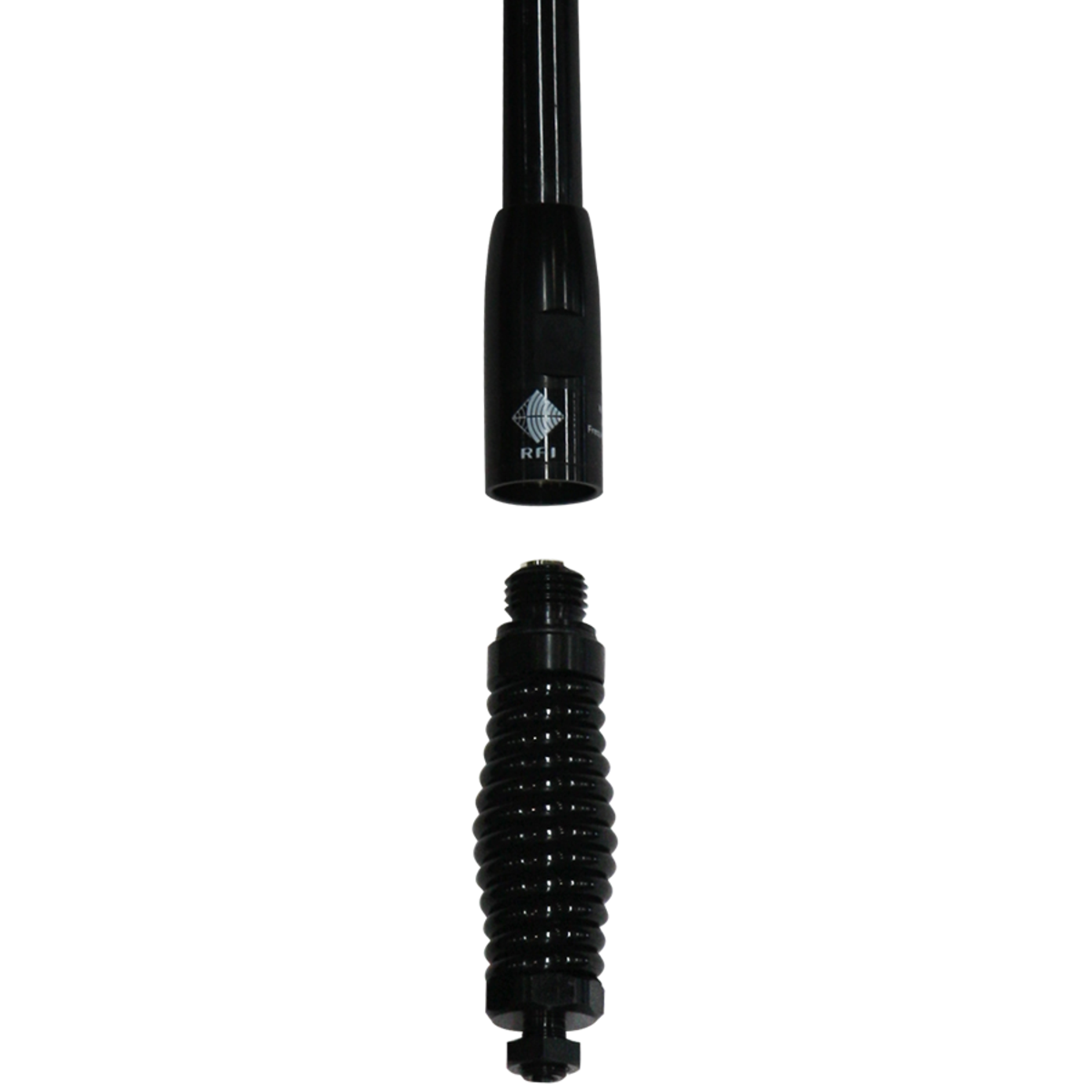

Feature: The new compact CDQ3000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. These antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed. With a heavy-duty electro-polished stainless steel spring, the CDQ3000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four-wheel drives and trucks. Features: – Patented PCB-based Meander™ collinear design offering the ultimate in pattern and gain stability. – 3dBi gain across the full 477 MHz UHF CB band. – Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security. – Ground Independent
Specifications:
| Packaging | Clear hanging bag |
| Whip Material | PCB radiating element housed in tapered high impact fiberglass |
| Cable And Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Tuning | Supplied pre-tuned |
| Band | 477MHz |
| Frequency Range | 470 – 490 |
| Power w | 25 |
| Nominal Gain Dbi | 3 |
| VSWR | <1.5:1 |
| Radome Diameter Mm | 22.5 – 18.5 |
| Tuned bandwidth | Full. No tuning required |
| Frequency MHz | 477 |
| Length [mm] | 515 |
| Mounting | Spring Assembly with threaded stud & nut |
| Brand | RFI |
