Description
Features:
– Covers all 4G LTE & 3G cellular bands

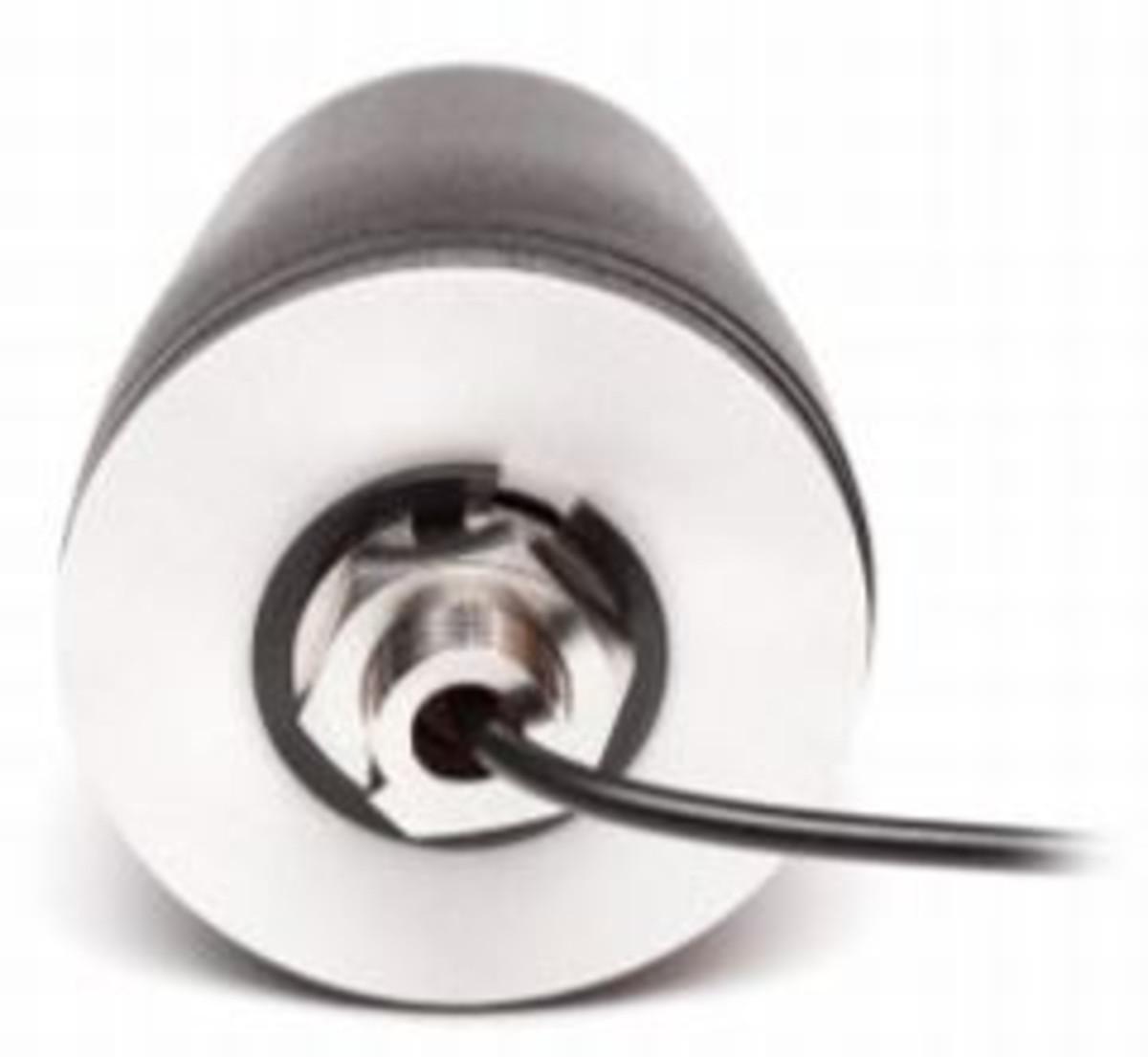

– Screw mount with anti-rotation mechanism
– Ground plane independent

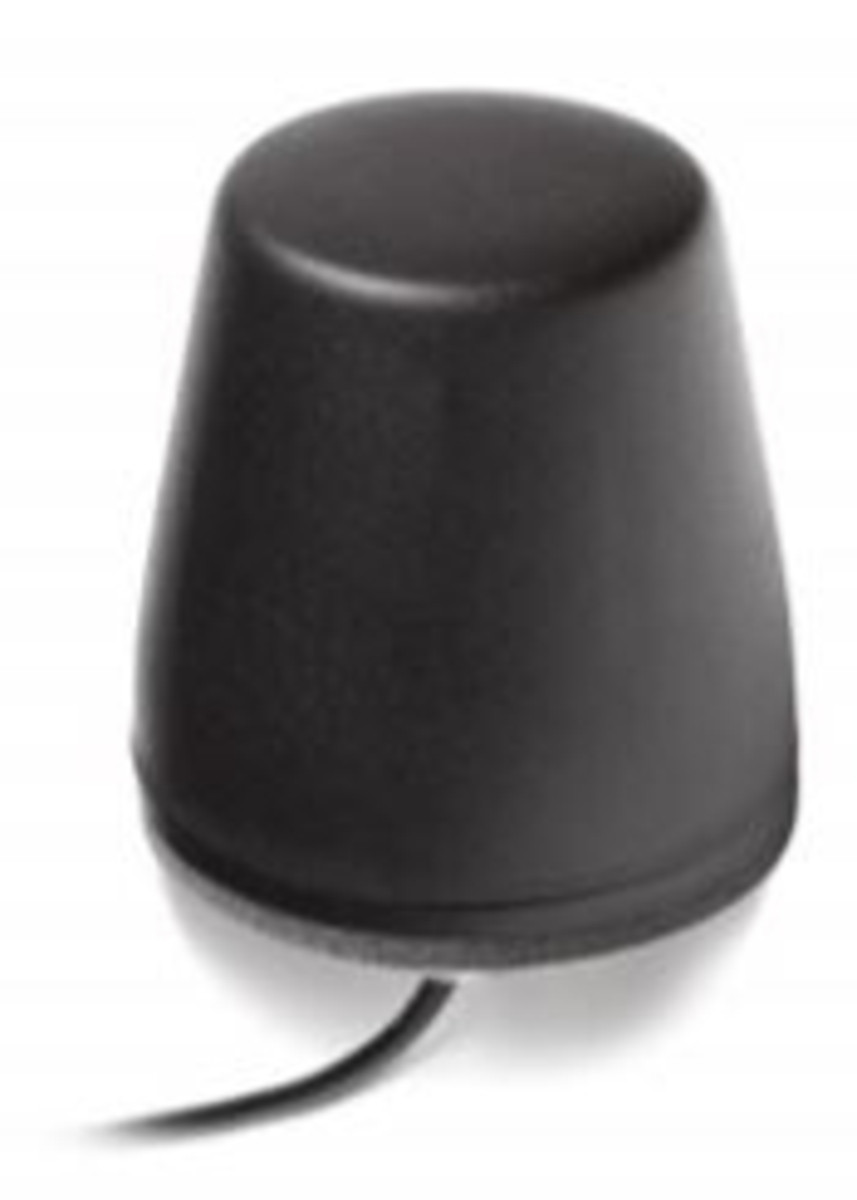

– Ultra-compact design: Ø 50 x 50.8 mm
– Weatherproof: IP69
Other standard versions available:
– CSM500 with 1.5M LL100 coax terminated with SMA male connector
– CSM500 with 5.0M LL100 coax terminated with FME female connector
Other cable/connector configurations available upon request. MOQ will apply.
Specifications:
| Cable And Connector | 5m LL100 terminated with SMA male connector |
| Tuning | Not required |
| IP Protection Category | IP69 |
| Connector | SMA(M) |
| Frequency | 698-960 / 1710-2170 / 2500-2700 MHz |
| Nominal impedance | 50 |
| Power w | 25 |
| Nominal Gain Dbi | 3.6 / 4.1 / 1.9 |
| Polarisation | Vertical |
| VSWR | <2.1:1 |
| Brand | RFI |
