Description

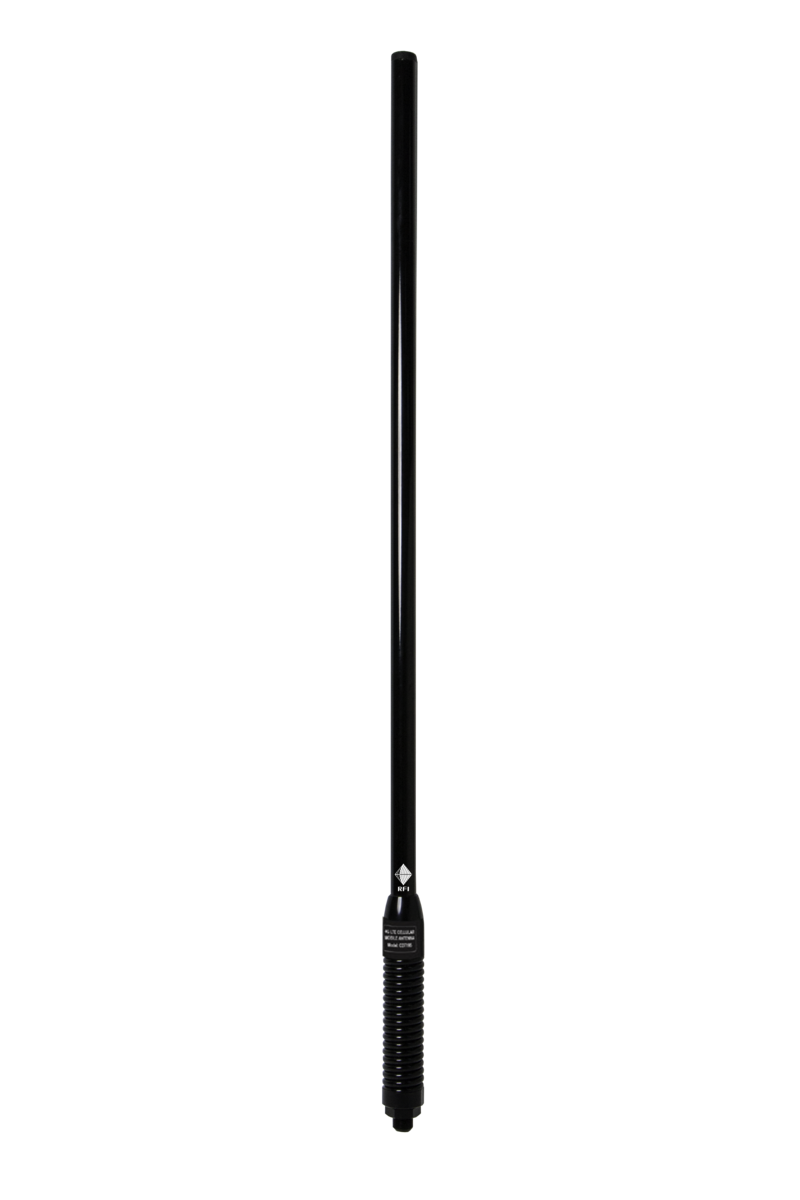

With a 13mm stud mount on a heavy-duty black chrome stainless steel spring, the CD7100 Series can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four-wheel drives and trucks.
Features:
– Patented PCB based collinear design offering the ultimate in pattern and gain stability
– Ideal for all new 4G networks with true multi-band coverage
– High gain across 4Gx/4G+ band suiting fringe and rural applications
Specifications:
| Cable Type | RG58 |
| Packaging | Retail Bag |
| Whip Material | Fiberglass |
| Cable And Connector | 5m of 9006 low loss cable with SMA(M) |
| Band | 4G LTE |
| Connector | SMA(M) |
| Frequency Range | 1710 – 2170, 2300 – 2700, 698 – 960 |
| Frequency | 698-960 / 1710-2170 / 2300-2700 MHz |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 5.0 / 4.5 / 5.5 |
| VSWR | <2.5:1 |
| Radome Diameter Mm | 15.6 |
| Tuned bandwidth | Full. No tuning required |
| Length [mm] | 655 |
| Brand | RFI |
