Description

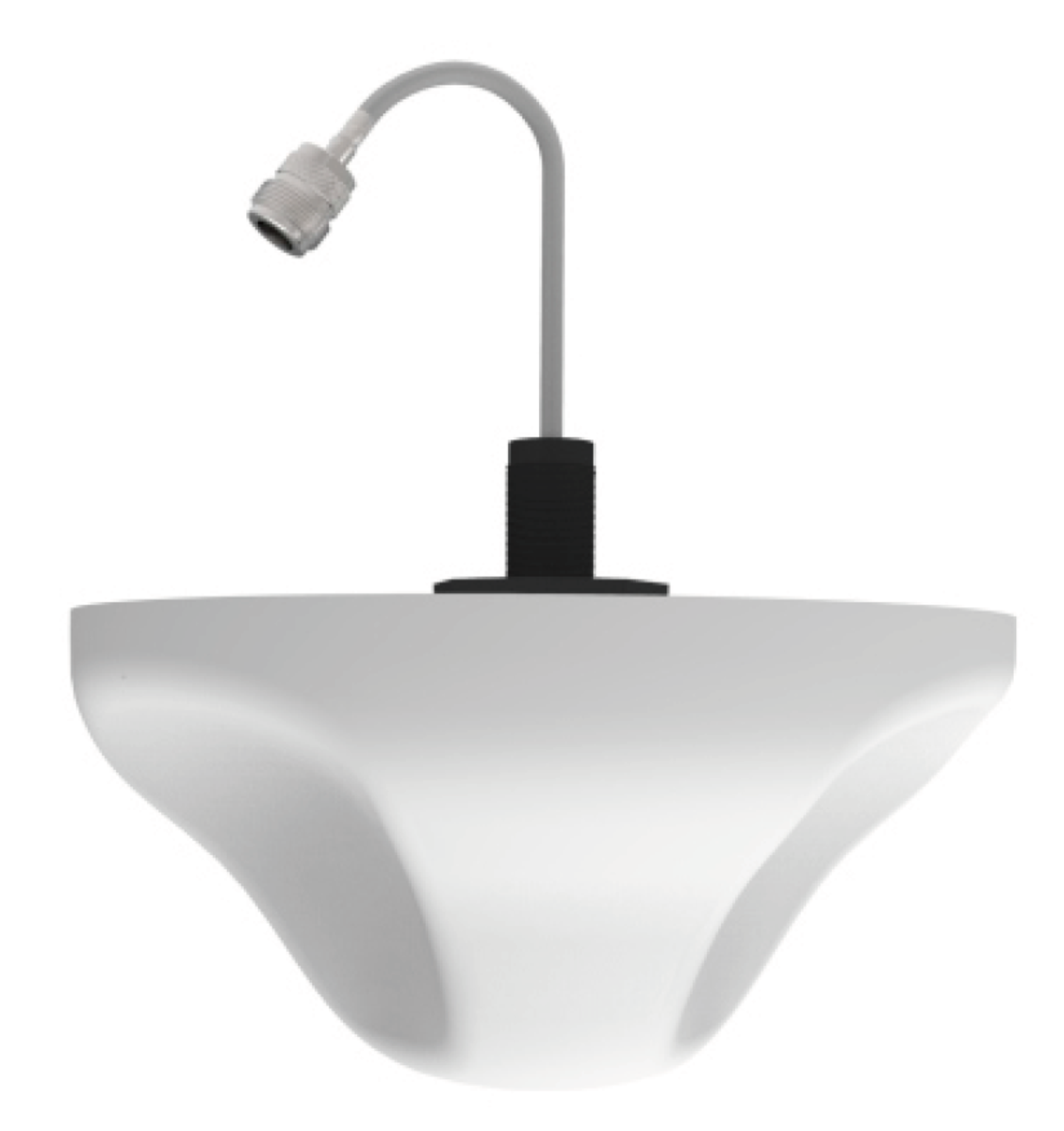

RFI’s Low PIM DAS range is a high-performance, PIM rated DAS antenna range, offering indoor or outdoor panel antennas with great directional beam control, and a range of indoor and outdoor omnidirectional solutions to suit indoor, outdoor requirements, with the optional low profile aesthetic. The multi-band capability of each offering covers at least 690-960MHz & 1710-6000MHz and eliminates the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications Features Include:
• Low Profile compact form factor
• Coverage across multiple cellular and WLAN bands
• Ideal for DAS deployment for in-building coverage solutions
• Excellent -153dBc PIM performance
• Single stud mount with 1 x 300mm tails terminated with 4.3-10 female connector
Specifications:
| Frequency Range | 1710-2700, 3500-3600, 5200-6000, 698-960 |
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 2.0 / 4.0 / 4.0 / 6.0 |
| VSWR | <1.7:1 / <1.7:1 / <1.6:1 / <1.7:1 |
| Termination | Single 300mm tail with 4.3-10 (F) connector |
| Radome Diameter Mm | 184 |
| Construction | UV resistant White ABS |
| Passive IM 3rd Order (2x20W) dBc | -153 |
| Horizontal Beamwidth | 360 |
| Brand | RFI |
| Weight [kg] | 0.25 |
