Description

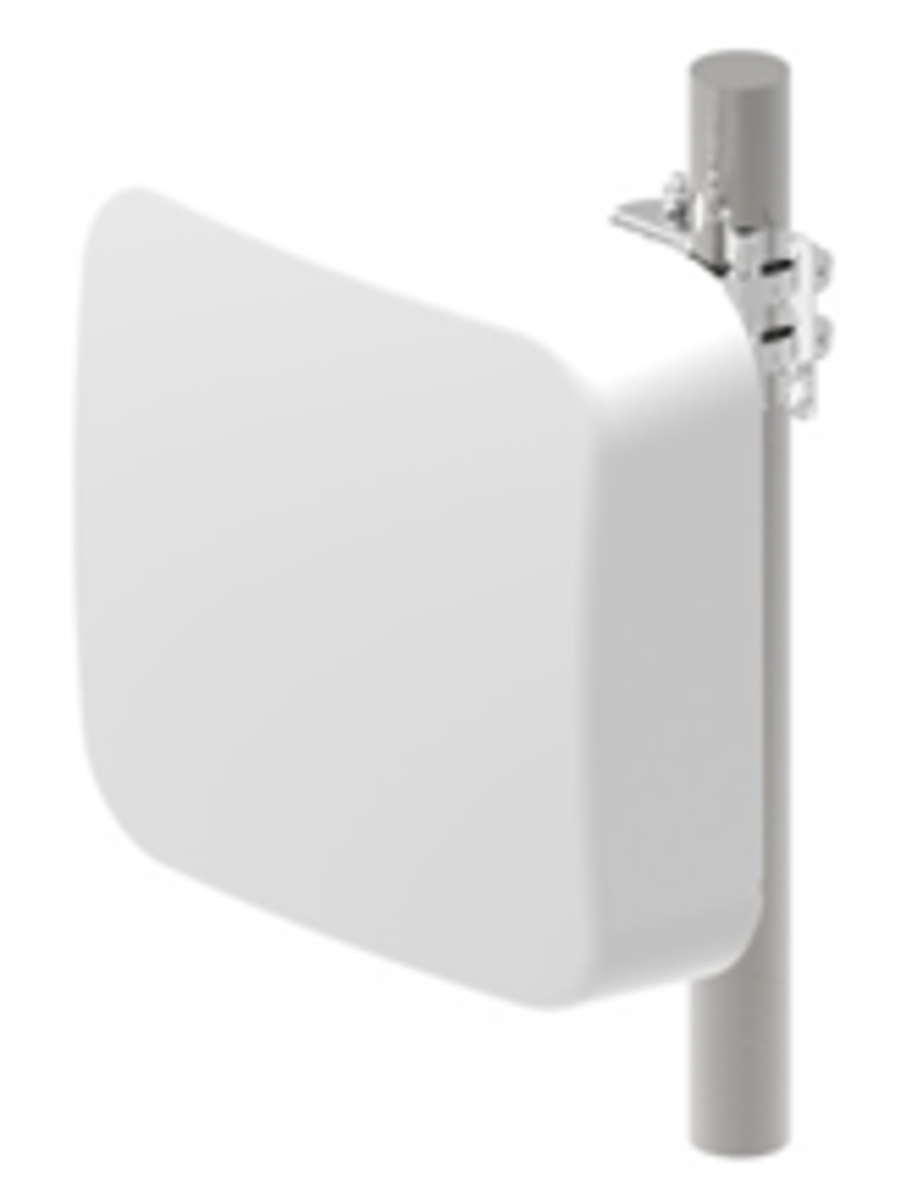

RFI’s Low PIM DAS range is a high-performance, PIM rated DAS antenna range, offering indoor or outdoor panel antennas with great directional beam control, and a range of indoor and outdoor omnidirectional solutions to suit indoor, outdoor requirements, with the optional low profile aesthetic. The multi-band capability of each offering covers at least 690-960MHz & 1710-2700MHz and eliminates the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications Features Include: • Low Profile compact form factor • Coverage across multiple cellular and WLAN bands • Ideal for DAS deployment for in-building coverage solutions • Excellent -153dBc PIM performance • Pole mount with 2 x 4.3-10 type female bulkhead connectors
Specifications:
| Connector | 4.3-10(F) |
| Frequency Range | 1710 – 2170, 2300 – 2700, 3300 – 3800, 698 – 960 |
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 6.0 / 6.0 / 8.0 / 8.0 |
| Dimensions | 305(L) x 305(W) x 112(H) |
| VSWR | <1.5:1 |
| Termination | 2 x 4.3-10 female bulkhead |
| Construction | White PC, IP67 |
| Passive IM 3rd Order (2x20W) dBc | -153 |
| Horizontal Beamwidth | 70 / 70 / 60 / 60 |
| Front Back ratio dB | >20 |
| Brand | RFI |
| Weight [kg] | 0.7 |
