Description

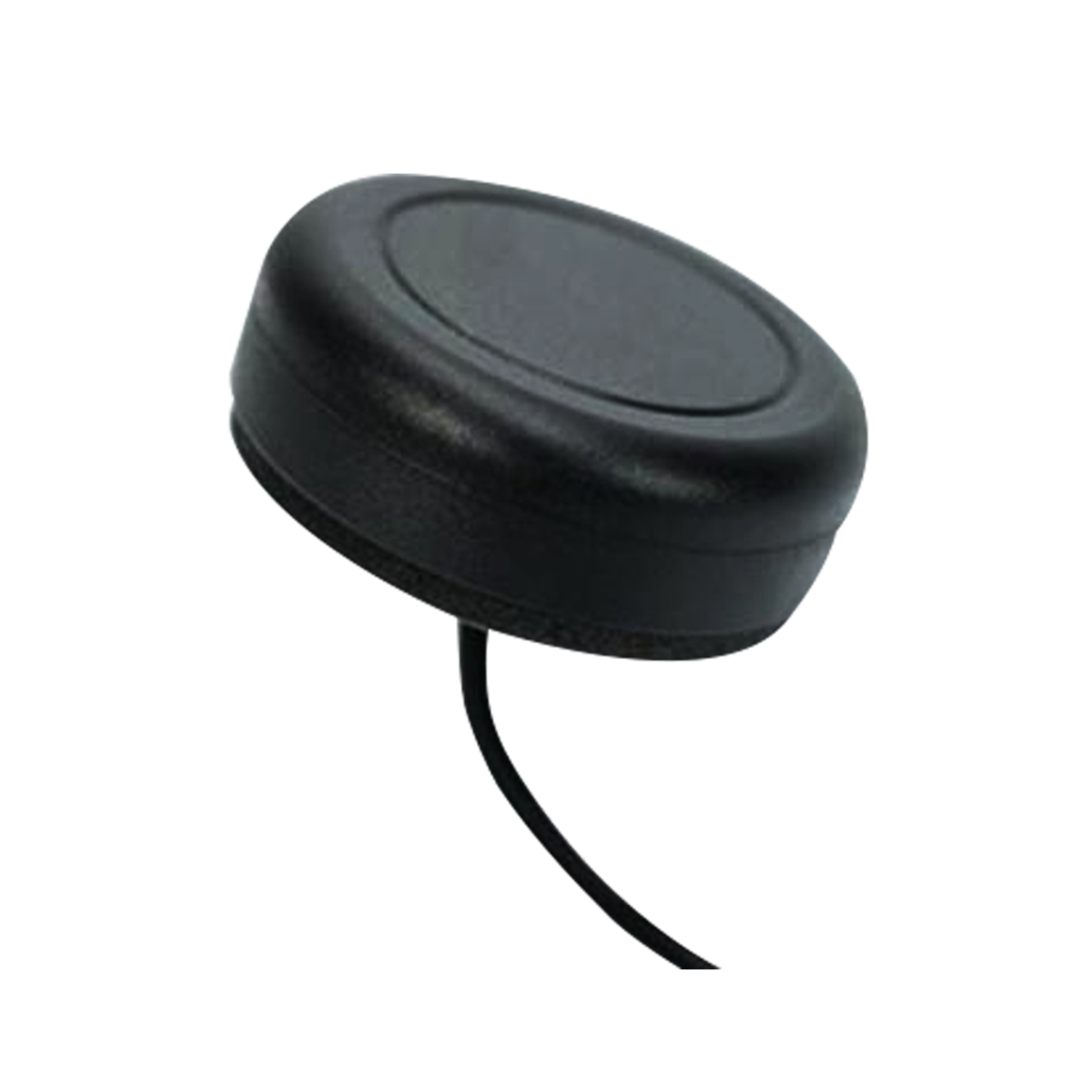

At just 15mm high, this low profile multiband antenna offers excellent GPS/GLONASS performance. Ideally suited for telematics, this antenna has 7m RG174 cable fitted with SMA male connector.
– Unique LNA operation providing good gain and excellent carrier noise
– IP69K
Specifications:
| Packaging | Plastic bag |
| Cable And Connector | 7m RG174 terminated with SMA(M) |
| Band | GPS/GLONASS/QZSS/Galileo |
| Frequency | 1575-1606 MHz |
| Nominal impedance | 50 |
| Polarisation | Right Hand Circular |
| VSWR | <1.5:1 |
| Construction | US Stable ABS |
| Tuned bandwidth | Full |
| Length [mm] | 52 |
| Width [mm] | 52 |
| Operating Temperature Range [°C] | -40 to +85 |
| IP Rating | IP69K |
| Brand | RFI |
| Height [mm] | 18.5 |
