Description

Features:

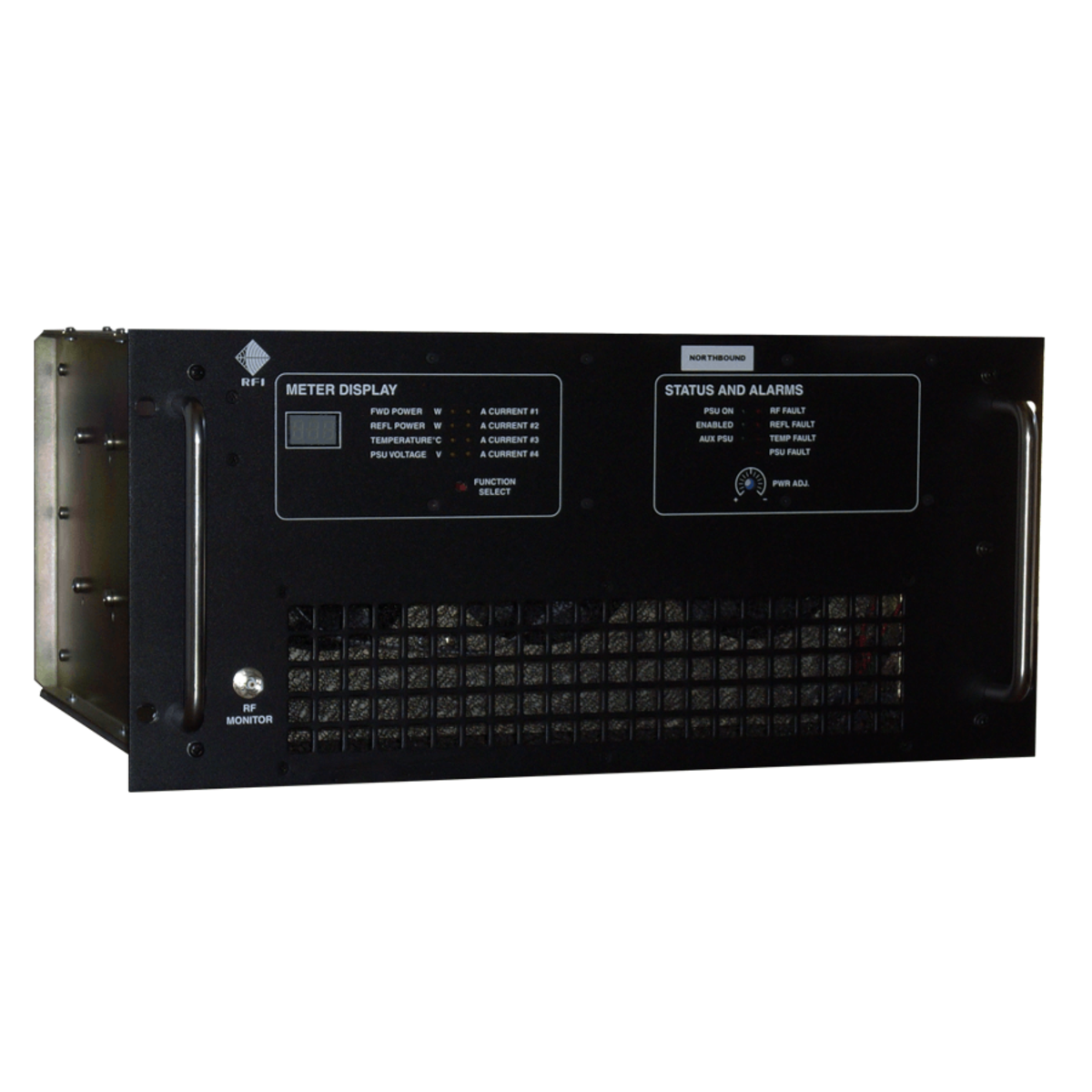

It features a state-of-the-art 4-stage LDMOS solid-state output that can provide up to 100w RF output power in single carrier applications. For Multiple Carrier Power Amplifier (MCPA) applications, such as multi-channel FM rebroadcast systems, the excellent linearity of this amplifier optimizes the number of RF carriers and their individual RF output powers that can be provided – subject to the allowable Intermodulation Products (IM) performance. This full-featured, high-performance RF power amplifier is compatible with narrowband and wideband modulation schemes and is self-contained with an integral PSU and high-volume fan cooling system. Dry relay alarm contacts are provided for connection to external monitoring equipment if desired. The unit is housed in a compact 5RU 19-inch rack-mount enclosure for convenient installation and maintenance.

-100W single carrier or Multiple Carrier Power Amplifier (MCPA) operations
-High-linearity, 4-stage, 5th generation “State of the Art” LDMOS design.
-ALC built-in for absolute control of RF output power
-3 Digit, 7 segments digital display
-Integral fan cooling system
-Remote telemetry with voltage free contacts and sample voltages
-Space-efficient 5RU 19in rack-mount enclosure

Note 1. The number of RF carriers and the per-carrier RF Output power capability in multiple carrier (MCPA) applications is subject to the allowable resulting Intermodulation Products (IM) and RF Spurious Suppression performance.

Specifications:
