Description

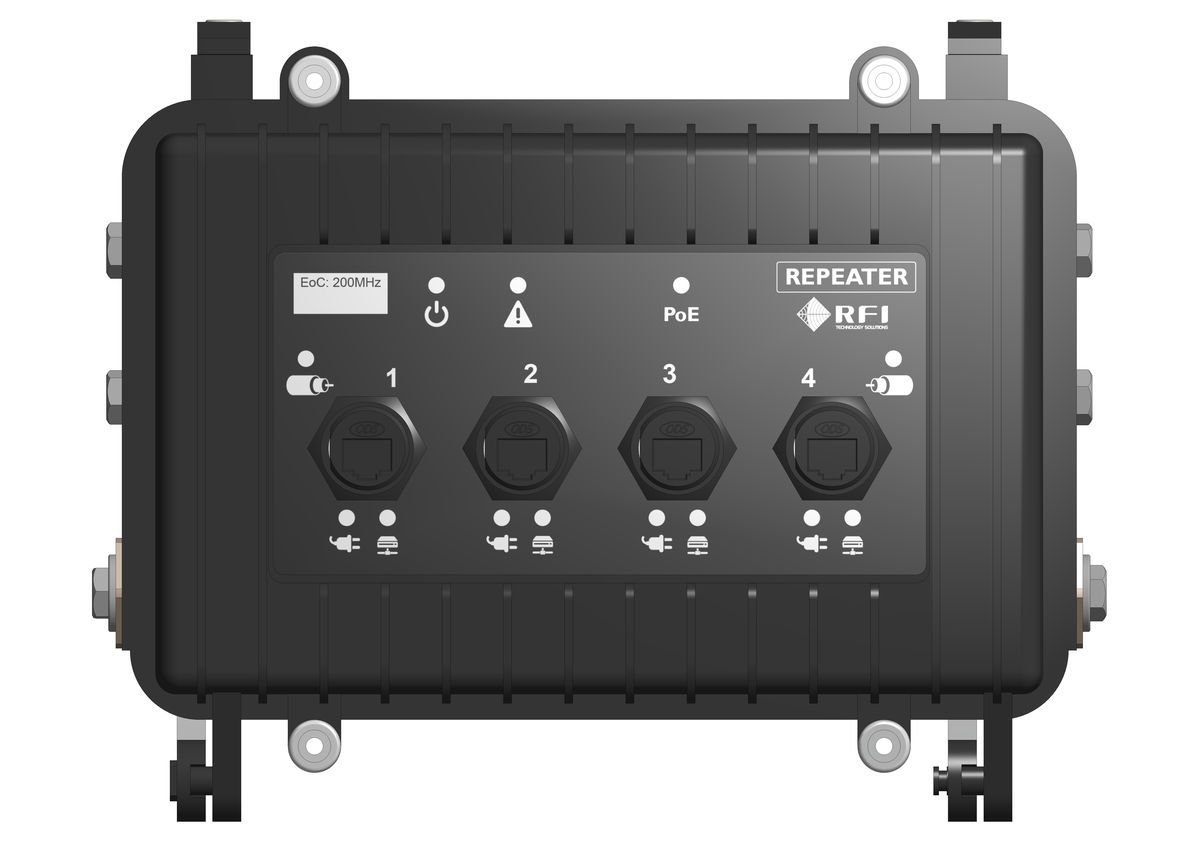

The Repeater 2 digitally re-generates the Ethernet over Coax (EoC) data signal, enabling coaxial segments to be extended indefinitely. At the same time, it breaks out standards-compliant Ethernet ports, supplying power and data backhaul for any industrial Ethernet device.
Features:
- Can be installed in-line on either Digital Drift non-leaking coax (hardline or flexible) or broadband leaky coax for radiating Wi-Fi / LTE
- Breaks out 4 x IEEE 802.3bt GbE ports
- IP66 (Dust-tight and protection against powerful water jets)
- 200 MHz Eoc band plan
- Operates from 10 to 60 V DC
Specifications:
| Input Voltage Range V | 10 to 60 V DC |
| Operational Temperature Range | -10° to +60°C |

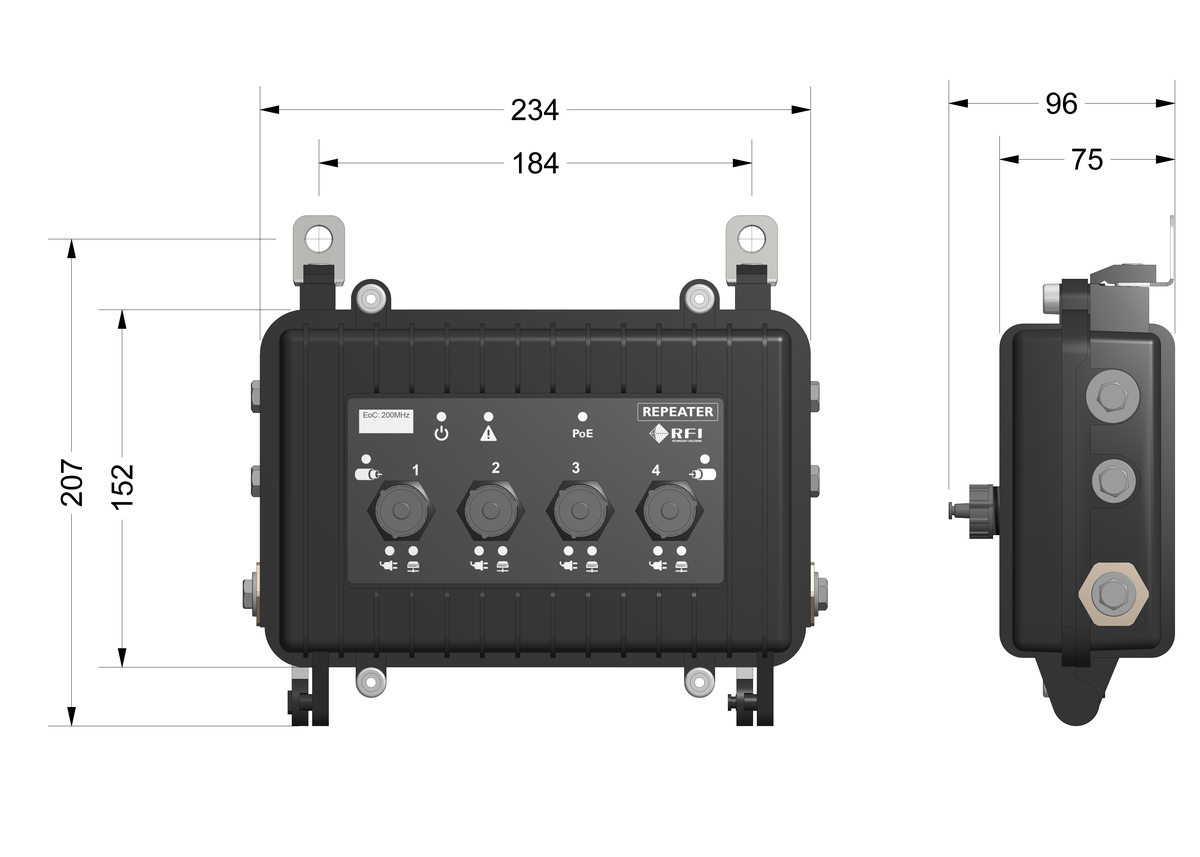

| Dimensions | 234 mm (W) x 207 mm (H) x 96 mm (D) |
| IP Rating | 66 |
