Description

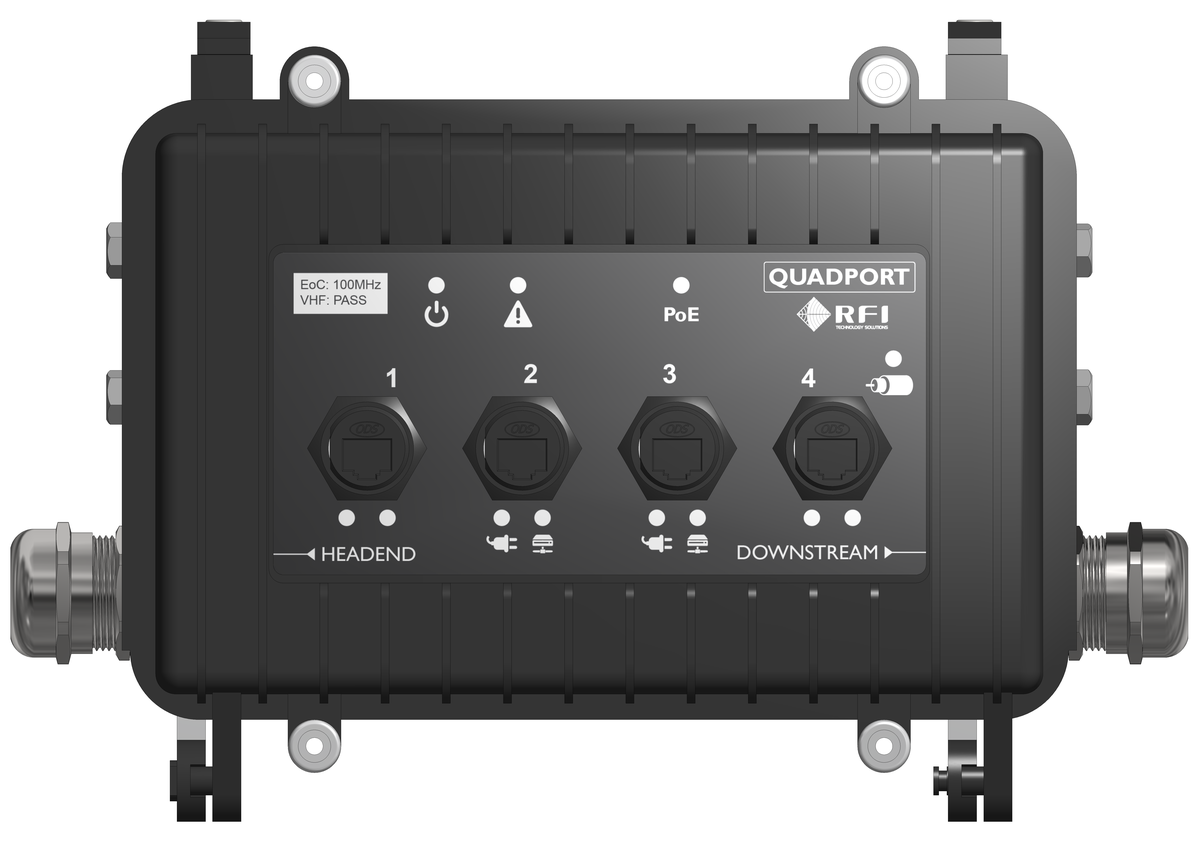

The QuadPort 2 for VHF leaky feeder systems breaks out standards-compliant Ethernet ports right where they are needed, supplying power and data backhaul for any industrial Ethernet device, while also passing VHF voice radio communications.
Features:
- Installed in-line on the VHF leaky feeder cable
- Passes VHF 2-way radio signals
- Breaks out 4 x IEEE 802.3bt GbE ports
- IP66 (Dust-tight and protection against powerful water jets)
- 100 MHz Eoc band plan
- 3.0 dB VHF insertion loss
- Operates from 10 to 60 V DC
Specifications:
| Input Voltage Range V | 10 to 60 V DC |
| Operational Temperature Range | -10° to +60°C |

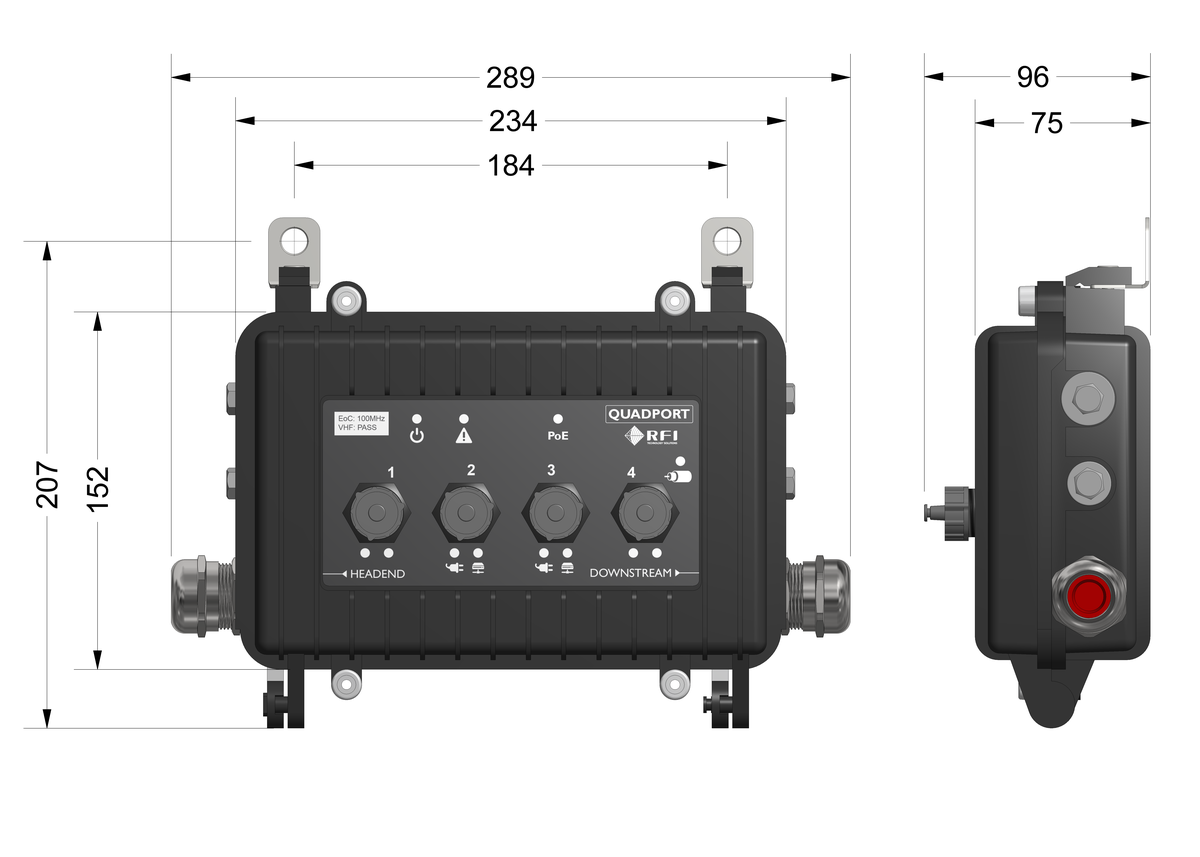

| Dimensions | 289 mm (W) x 207 mm (H) x 96 mm (D) |
| IP Rating | 66 |
