Description

Features:

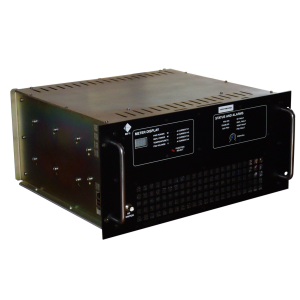

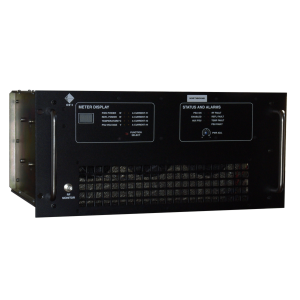

It features a state-of-the-art LDMOS solid-state output that can provide up to 30W (average) or 50W (peak) composite RF output power in single carrier applications. For Multiple Carrier Power Amplifier (MCPA) applications, such as multi-channel DAB/DAB+ rebroadcast systems, the excellent linearity of this amplifier optimizes the number of RF carriers and their individual RF output powers that can be provided – subject to the allowable Intermodulation Products (IM) performance. This full-featured, high-performance RF power amplifier is compatible with narrowband and wideband modulation schemes and is self-contained with an integral PSU (an optional redundant dual-PSU model is also available) and high-volume fan cooling system. Dual front-panel digital displays indicated RF Fwd and Rev composite output powers. Dry relay alarm contacts are provided for connection to external monitoring equipment if desired. The unit is housed in a compact 3RU 19-inch rack-mount enclosure for convenient installation and maintenance.

-30W (average) 50W (peak) single carrier or Multiple Carrier Power Amplifier (MCPA) operations
-High-linearity, “State of the Art” LDMOS design.
-Integral isolator protects the amplifier from output mismatches.
-Dual front-panel digital displays (RF Fwd and Rev Pwr)
-Integral fan cooling system
-Alarm monitoring via voltage-free contacts
-Space-efficient 3RU 19in rack-mount enclosure

Note 1. The number of RF carriers and the per-carrier RF Output power capability in multiple carrier (MCPA) applications is subject to the allowable resulting Intermodulation Products (IM) and RF Spurious Suppression performance.

Specifications:
