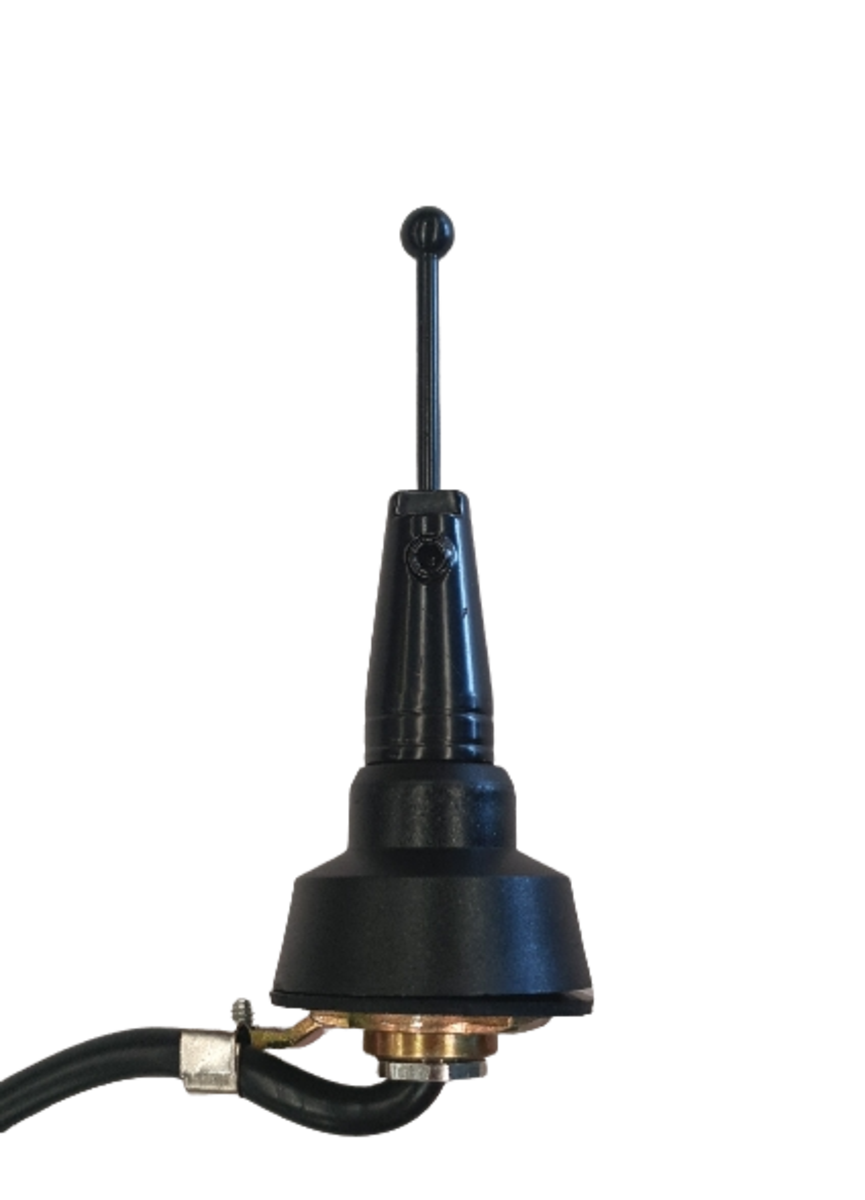

Features: At the heart of each RFI roof mount antenna is the MB14 base. The base is intricately constructed, much like a coaxial connector. The precisely controlled termination is reliable electrically and mechanically provides a superb match resulting in a broad bandwidth. • Roof mounting for optimum performance • Black finish will not scratch or peel • Limited lifetime warranty • SW1495 (CDMA only) offers 5 dB gain for maximum range in-country or fringe areas • SW1486/1686 Magnetic base versions available for portable applications complete with protective rubber boot
Specifications:
| Nominal Gain dBq | Unity |
| Whip Material | 17-7 PH stainless steel with brass ferrule, black finish |
| Whip Length mm | 65 |
| Cable And Connector | Supplied with 5.0m Cellfoam® cable. Please specify mini UHF, FME or TNC connector |
| Tuning | Supplied pre-tuned |
| Band | 890 – 960MHz |
| Frequency Range | 890 – 960 |
| VSWR | <1.9:1 |
| Tuned bandwidth | Entire specified band @ <1.9:1 VSWR |
| Frequency MHz | 890 – 960 |
| Brand | RFI9 |
