Description
Features:
Our range of RF Loads, Terminations and Attenuators are ideally suited for multicoupling, distributed antenna and radiating cable systems, testing and other laboratory purposes.
• Termination of unused ports on multicoupling devices
• General purpose termination or attenuation of multicoupling devices, cables and other systems components
• Suited to test equipment applications
RFI supplies a range of natural convection, air cooled dry RF Loads, Terminations and Attenuators.

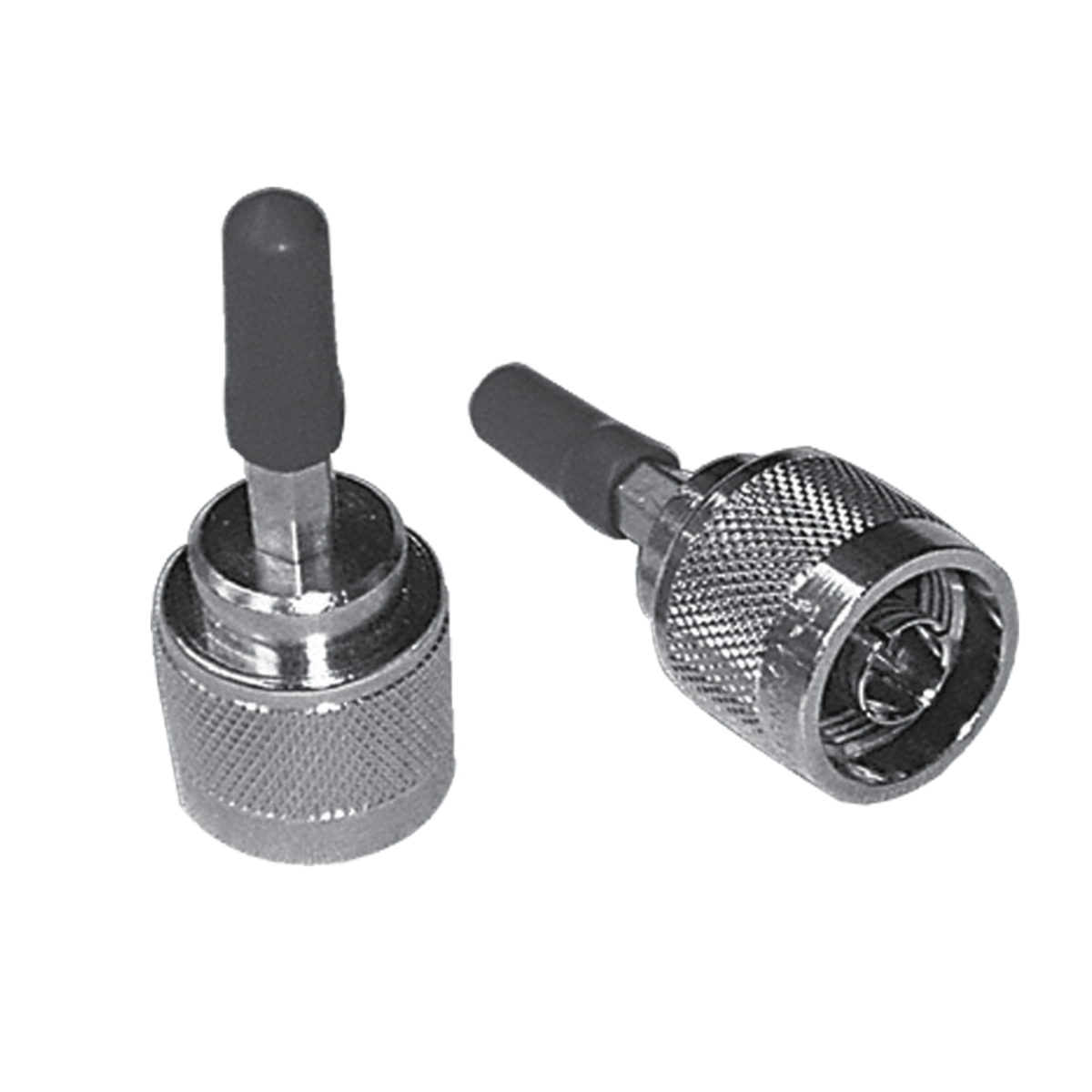

RF Terminations are designed as general purpose, low power terminations to be used to correctly terminate unused ports on devices such as receiver multicouplers, etc.
RF Loads are especially designed as heavy duty, precision 50ohm terminations for coaxial cables and multicoupling devices, with models available to suit requirements at various input power ratings and frequencies from DC – 2500MHz.
Specifications:
| Return Loss VSWR | 20 dB (1.2:1) |
| Finish | As per connector |
| Impedance | 50 ohms |
| Power Rating Watts | 0.25 |
| Operational Temperature Range | -30 to +60°C (-22 to +140°F) |
| Connector | N(M) |
| Frequency Range | 800 – 1000 |
| Dimensions | N male Connector Housing |
| Frequency MHz | 800-1000 |
| Brand | RFI |
| Component Type | Load |
