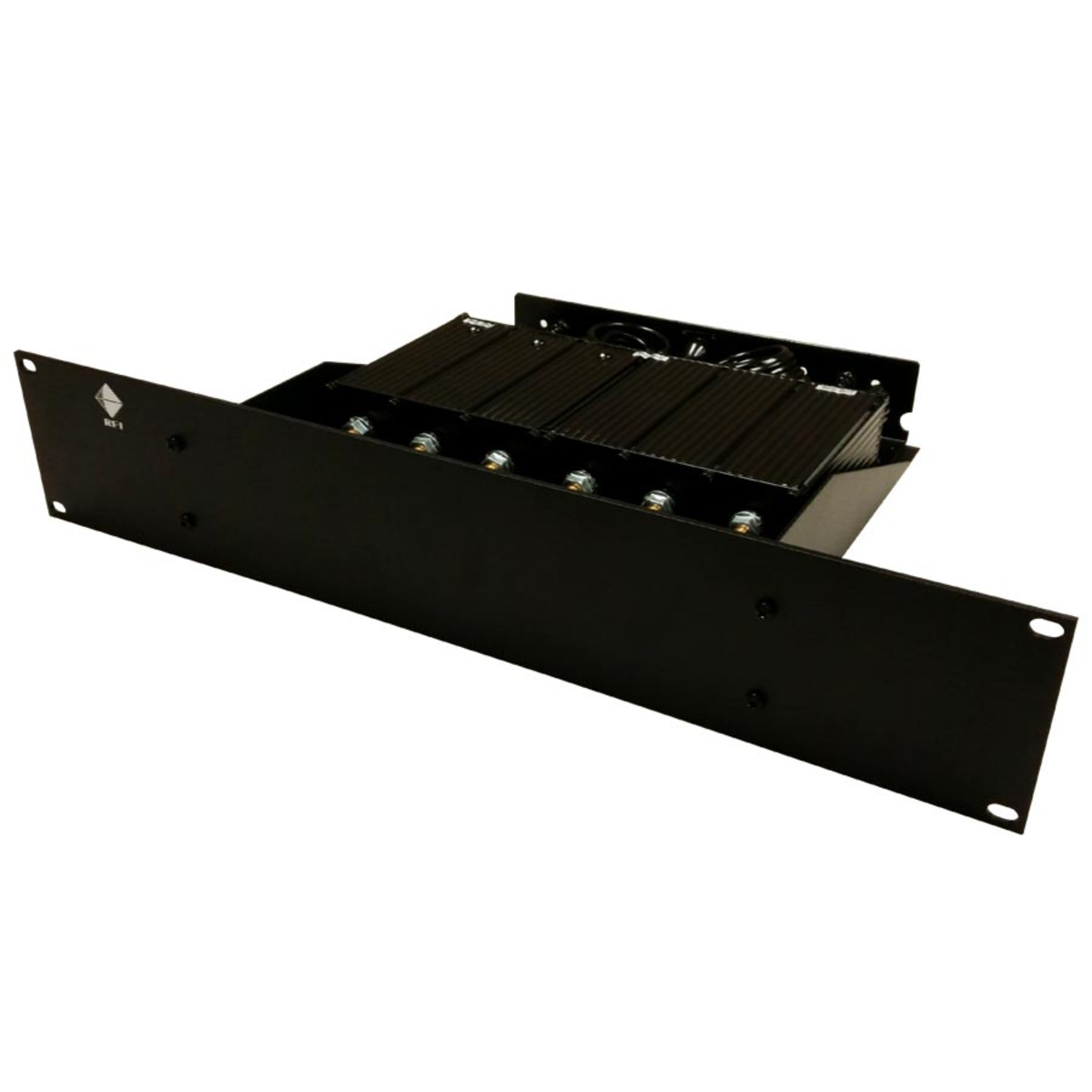

Description
Features:
As a global supplier of RF Multi-coupling equipment, RFI caters to a number of duplexer filtering characteristics, passbands, port to port isolation, power ratings and physical size constraints to mention a few of the important technical considerations.
• High Power 125W
• Tx / Rx reversible on Lo / Hi ports
• Typical 2.5MHz Tx to Rx split
• Low insertion loss
• Very high >100dB Lo to Hi port isolation
• 3RU 19” rack mounting
Specifications:
| Input Power CW Max | 125W |
| Return Loss VSWR | 18 dB (min) / 1.29:1 |
| Finish | Painted Black |
| Impedance | 50 ohms |
| Operational Temperature Range | -30 to +60°C -22 to +140°F |
| Connector | N(F) |
| Frequency Range | 75 – 88 |
| Dimensions | D 300 (11.8″) x W 483 (19″) x H 133 (5.23″) |
| Mounting | 3RU Canter Lever tray |
| Brand | RFI |
