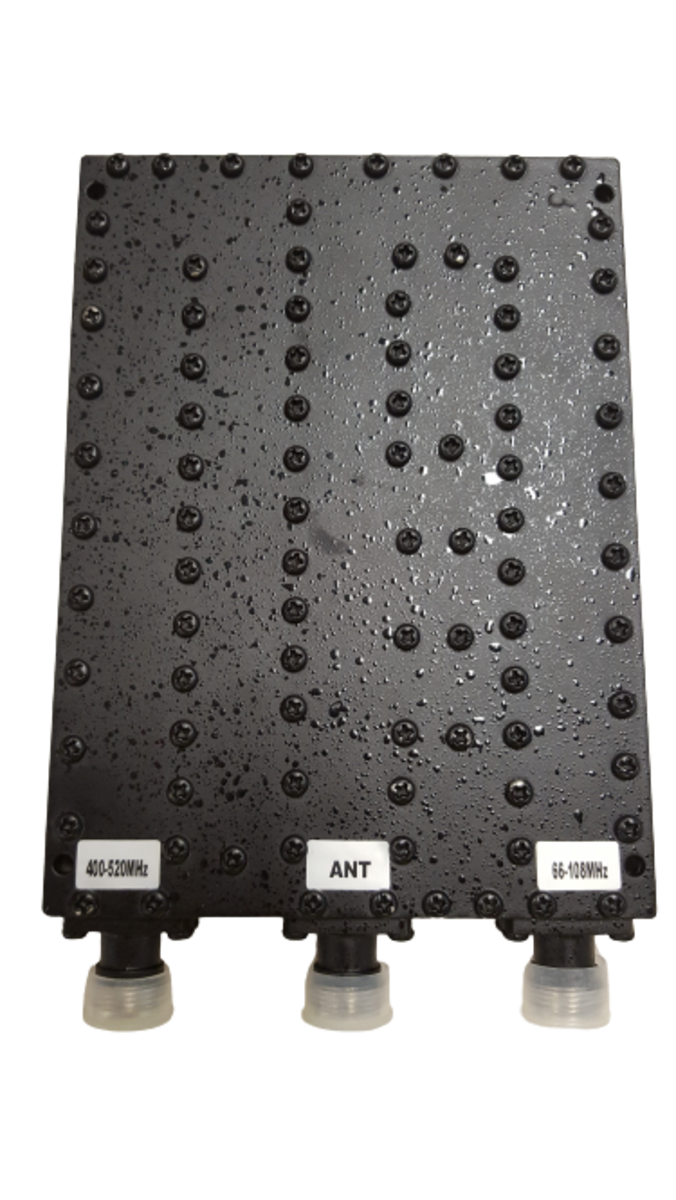

Description
Features:
These models feature compact size, low insertion loss, high isolation between bands and excellent temperature stability. Silver-plated connectors are utilized to improve multi-carrier Passive Intermodulation (PIM) performance. Models are available to suit other frequency band combinations or to provide cascaded combining of multiple frequency bands from 60MHz to 2500MHz thereby providing for the combining or separation of VHF, UHF, Cellular and WLAN services.
• 250W Power Rating
• Compact Package Size
• Ideal for Radiating Cable Systems
• Rugged Construction Style
Specifications:
| PIM 3rd Order 2x43dBm | -140dBc(max) |
| Isolation | 40dB (min) |
| Impedance | 50 |
| Return Loss dB | 15(min) |
| Insertion Loss dB | 0.5(max) |
| Power Rating Watts | 250 |
| Connector | N(F) |
| Frequency | 66-180 / 400-520MHz |
| Dimensions | 170 x 152 x 24mm |
| Operating Temperature Range [°C] | -25 to+65 |
| Brand | RFI |
| Component Type | Crossband Coupler |
