Description
Features:

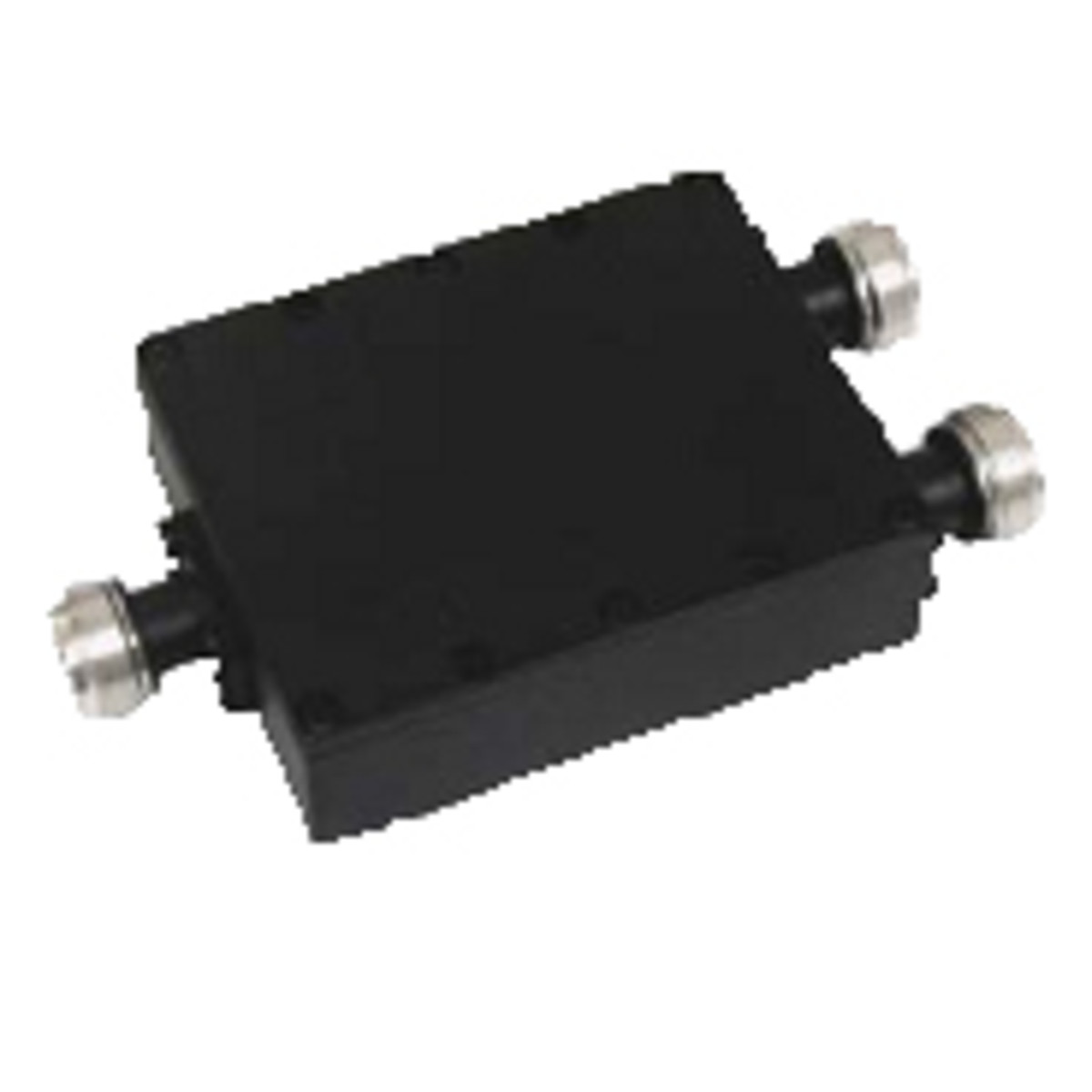

These models feature small size, low insertion loss, high isolation between bands and excellent temperature stability. Silver-plated connectors are utilized to improve multi-carrier Passive Intermodulation (PIM) performance. Models are available to suit other frequency band combinations or to provide cascaded combining of multiple frequency bands from 60MHz to 2500MHz thereby providing for the combining or separation of VHF, UHF, Cellular and WLAN services.
• Compact Package Size
• Ideal for Radiating Cable Systems
• Suits Mobile Applications
• Rugged Construction Style
Specifications:
| Isolation | 40dB (min) |
| Impedance | 50 Ohms |
| Return Loss dB | 20dB (min) |
| Insertion Loss dB | 0.8 (typ) |
| Power Rating Watts | 50 |
| Operational Temperature Range | -20 to +60°C / -4 to +140°F |
| Connector | N(F) |
| Frequency Range | 140 – 180, 60 – 110 |
| Dimensions | H=23 W=105.5 L=78.5 / H=1 W=4.1 L=3 |
| Construction | Milled aluminium, painted black |
| Frequency MHz | 60-110/140-180 |
| Brand | RFI |
| Component Type | Crossband Coupler |
