Description

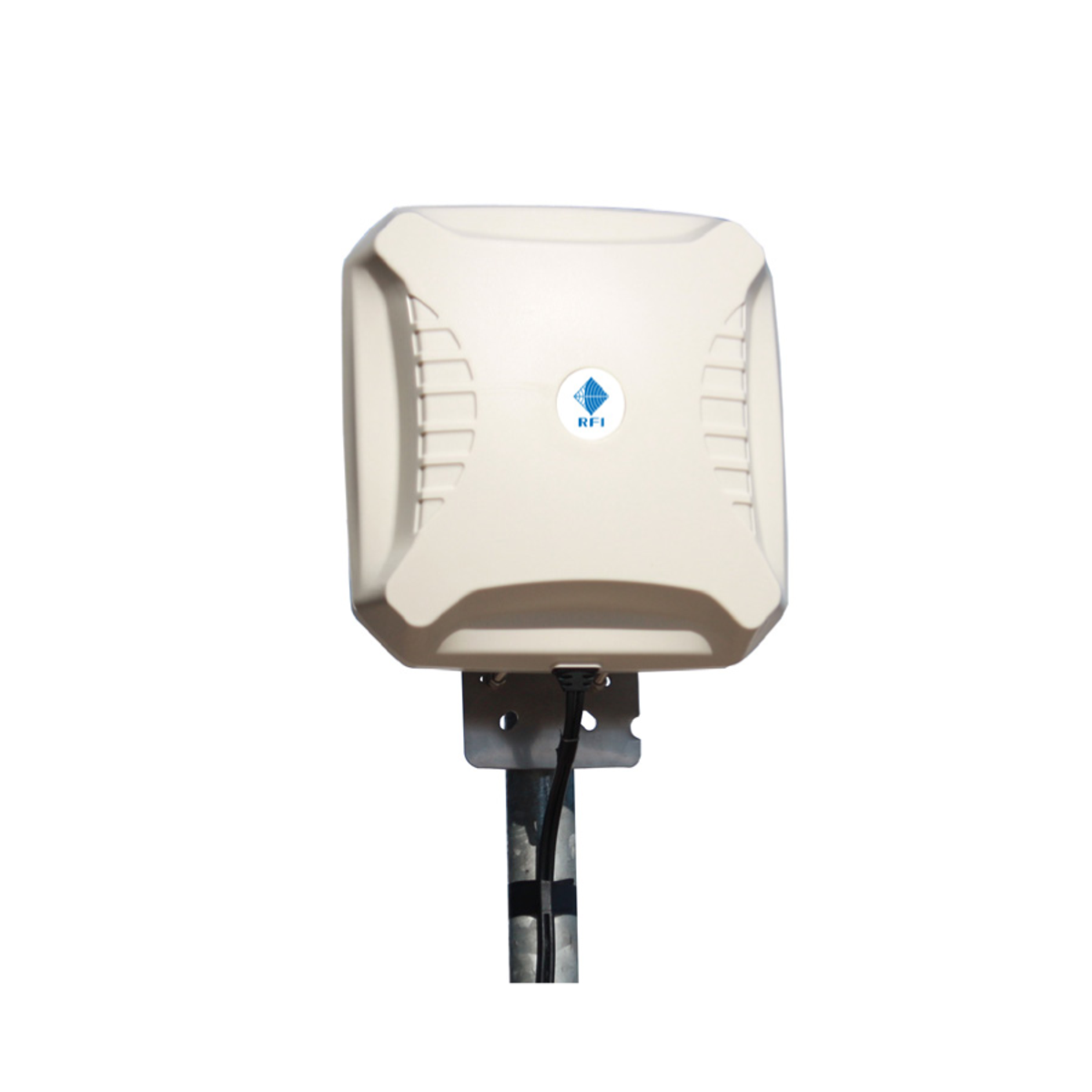

This antenna includes the newer 3400 – 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! The weatherproof housing is designed for mast or wall mounting and is supplied with 2 x 10 meters of low loss RG58 cable terminated with SMA male connectors.
Features:
– 2-3dB higher gain over all the bands compared to “V2”
– New 3400MHz-3800MHz, 5G band with 11dBi gain
– Consistent broadband performance
– X-Polarised 2×2 MIMO antenna
– Wall or pole mountable
– Lightweight & rugged
– Weatherproof & waterproof (IP65)
– High pattern consistency across bands for 4G/5G carrier aggregation
Specifications:
| Connector | SMA(M) |
| Frequency Range | 1710 – 2170, 2300 – 2700, 3300 – 3800, 698 – 960 |
| Base Gain | 4 to 7 dBd |
| Nominal Gain Dbi | 9 dBi @ 698-960MHz , 10 dBi @ 1710-2700MHz , 11 dBi @ 3400-3800MHz |
| Dimensions | H 260, W 260 |
| VSWR | < 1.5:1 (over 95% of the band) |
| Termination | 10m of RG58 fitted with SMA (M) connector per feed |
| Construction | Cream ABS |
| Tuned bandwidth | Full. No tuning required |
| Brand | RFI |
