Description
Features:

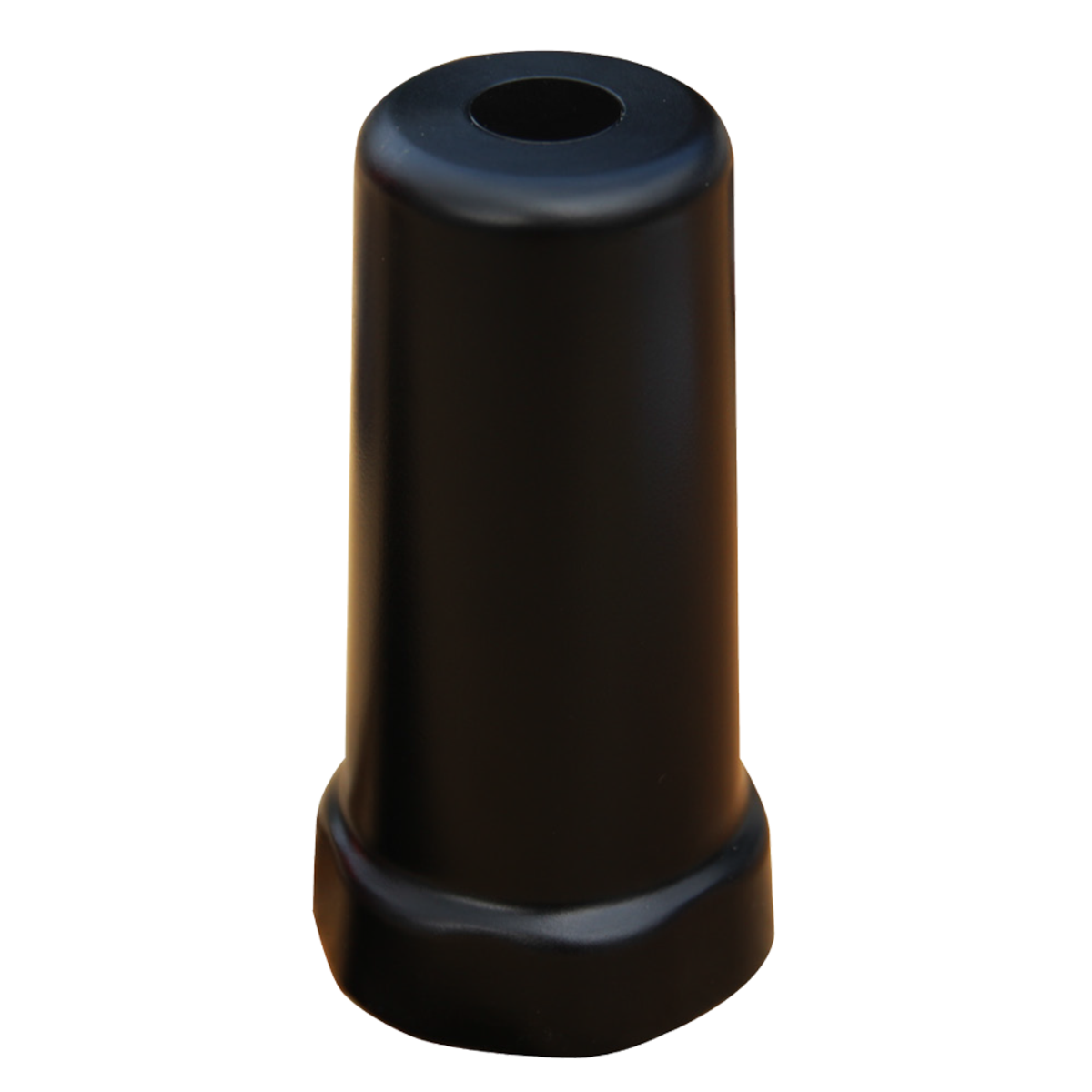

– Polycarbonate radome is ideal for outdoor use
– Attractive, low profile design for maximum overhead clearance
– Stud mounting offers ease of installation in the field
– Ingress protection to IP65
– Other cable/connector configurations available upon request
SPECIFICATIONS:
| Cable And Connector | 5.0m RG58 Terminated with SMA(M) |
| Connector | SMA(M) |
| Frequency | 698-960 / 1710-2170 / 2300-2700 / 3300-3800 MHz |
| Nominal impedance | 50 |
| Nominal Gain Dbi | 2 / 3 / 5 / 5 |
| Polarisation | Vertical |
| VSWR | <2.5:1 |
| Radome Diameter Mm | 50 |
| Construction | UV Stable Black Polycarbonate Radome |
| Tuned bandwidth | Full |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3500-3800 |
| IP Rating | IP65 |
| Brand | RFI |
| Weight [kg] | 0.17 without cable |
| Height [mm] | 80 |
