RFI 5G Compact Low-Profile Omnidirectional LTE 698-3800 MHz; 1.25m FME(F)

RFI 5G Compact Low-Profile Omnidirectional LTE 698-3800 MHz; 1.25m FME(F)

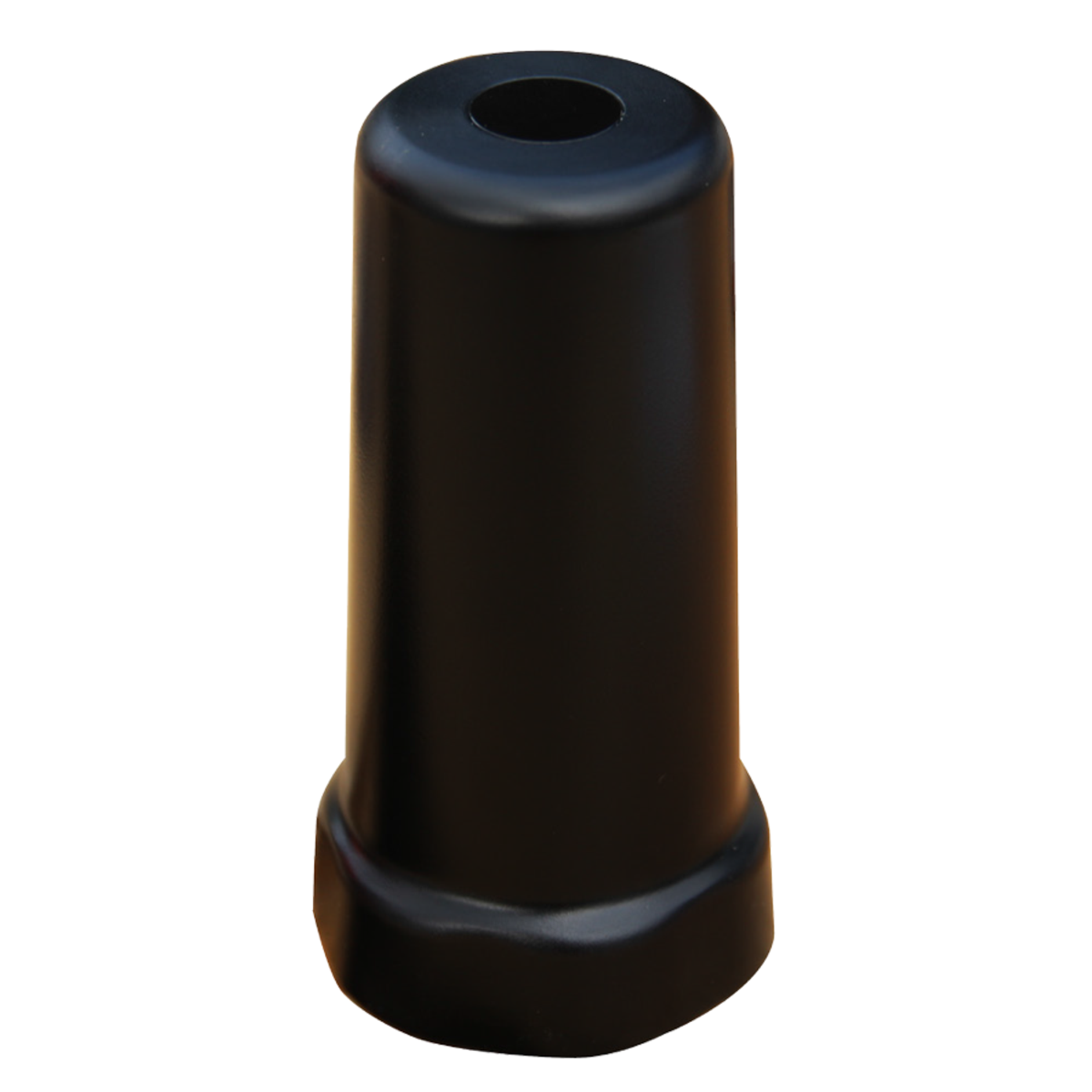

This is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 3.8 GHz. The antenna features an attractive, compact housing that can be used in both indoor and outdoor applications. It is fitted with a 13mm stud mount incorporating an integrated rubber O-ring seal and is IP65 rated.

$53.66

Categories: , Tag:

Description

Features:
– Polycarbonate radome is ideal for outdoor use
– Attractive, low profile design for maximum overhead clearance
– Stud mounting offers ease of installation in the field
– Ingress protection to IP65



SPECIFICATIONS:

Cable And Connector 1.25m RG58 Terminated with FME(F)
Frequency Range 1710 – 2170, 2300 – 2700, 3300 – 3800, 698 – 960
Nominal impedance 50
Power w 10
Nominal Gain Dbi 2 / 3.5 / 5 / 5
Polarisation Vertical
VSWR <2.5:1
Radome Diameter Mm 50
Construction UV Stable Black Polycarbonate Radome
Tuned bandwidth Full
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3500-3800
Brand RFI
