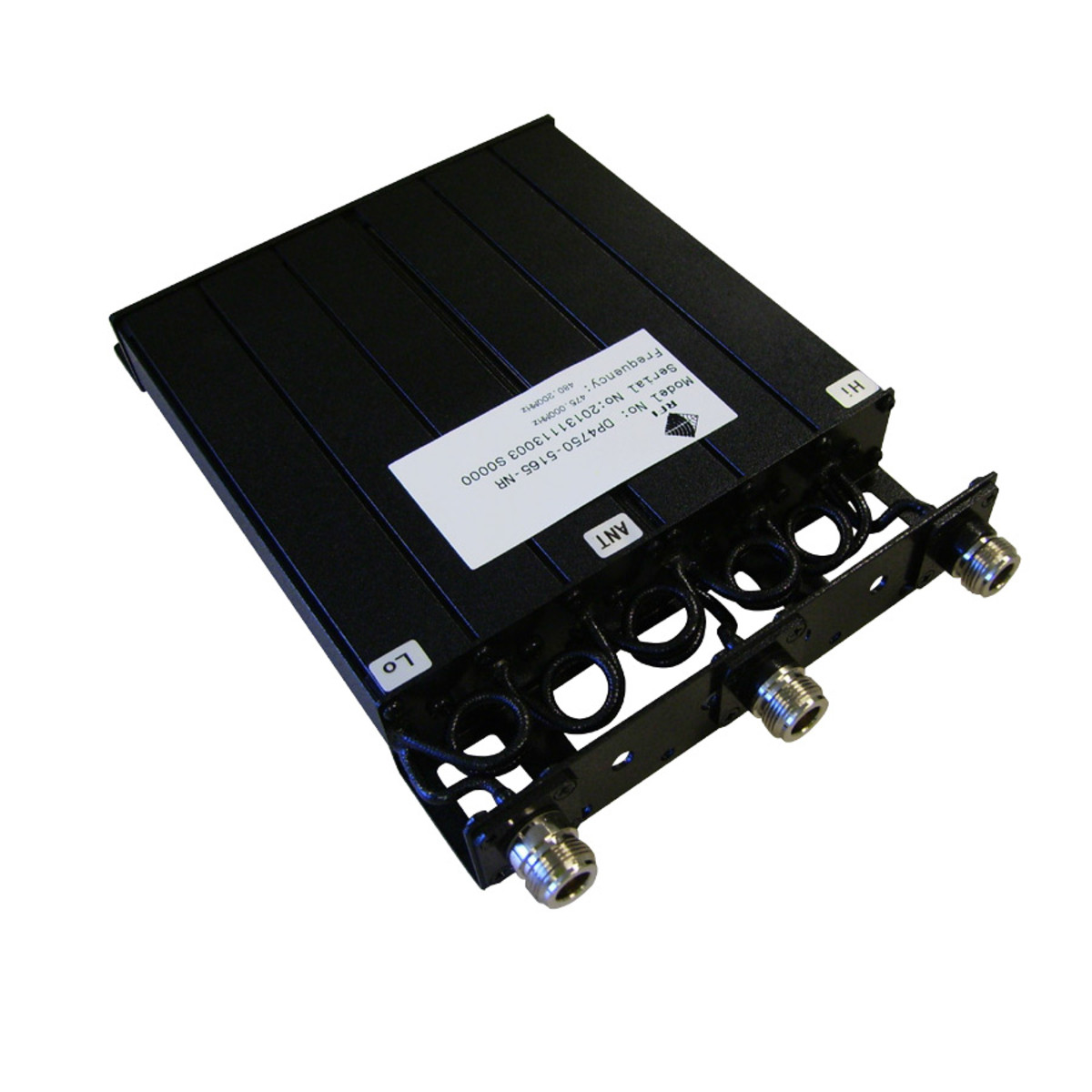

RFI 470-500MHz 50W Mobile Notch Duplexer 5.2MHz TR With N(F) Connector

RFI 470-500MHz 50W Mobile Notch Duplexer 5.2MHz TR With N(F) Connector

Where space is restricted and temperatures can vary considerably, RFI’s range of rugged six resonator mobile notch duplexers are ideal for use as a single duplex channel duplexer. The good Lo to Hi port-to-port isolation reduces the risk of carrier desensitisation in the nominated Rx port. A range of different Tx to Rx splits in the common UHF subbands are available.

$508.78

Category: Tag:

Available on backorder

Description

Features:

• RUGGED, compact temperature-stable design
• Various banded Tx to Rx split options
• Low insertion loss
• Typically 75dB port to port isolation
• 50W (CW) power rating
• Flat surface mounting holes provided
• Tx / Rx reversible on Lo / Hi ports



Specifications:

Input Power CW Max 50W
Return Loss VSWR 14 dB (min) / 1.5:1
Port To Port Isolation 75dB (min)
Minimum Separation MHz 5.2
Finish Painted Black
Impedance 50 ohms
Power Rating Watts 50
Operational Temperature Range -30° C to +60° C / -22° F to 140° F
Connector N(F)
Frequency Range 470 – 500
Dimensions W 155 (6.1″) x H 32.5 (1.28″)
Mounting Flat Surface Mounting
Brand RFI
