Description

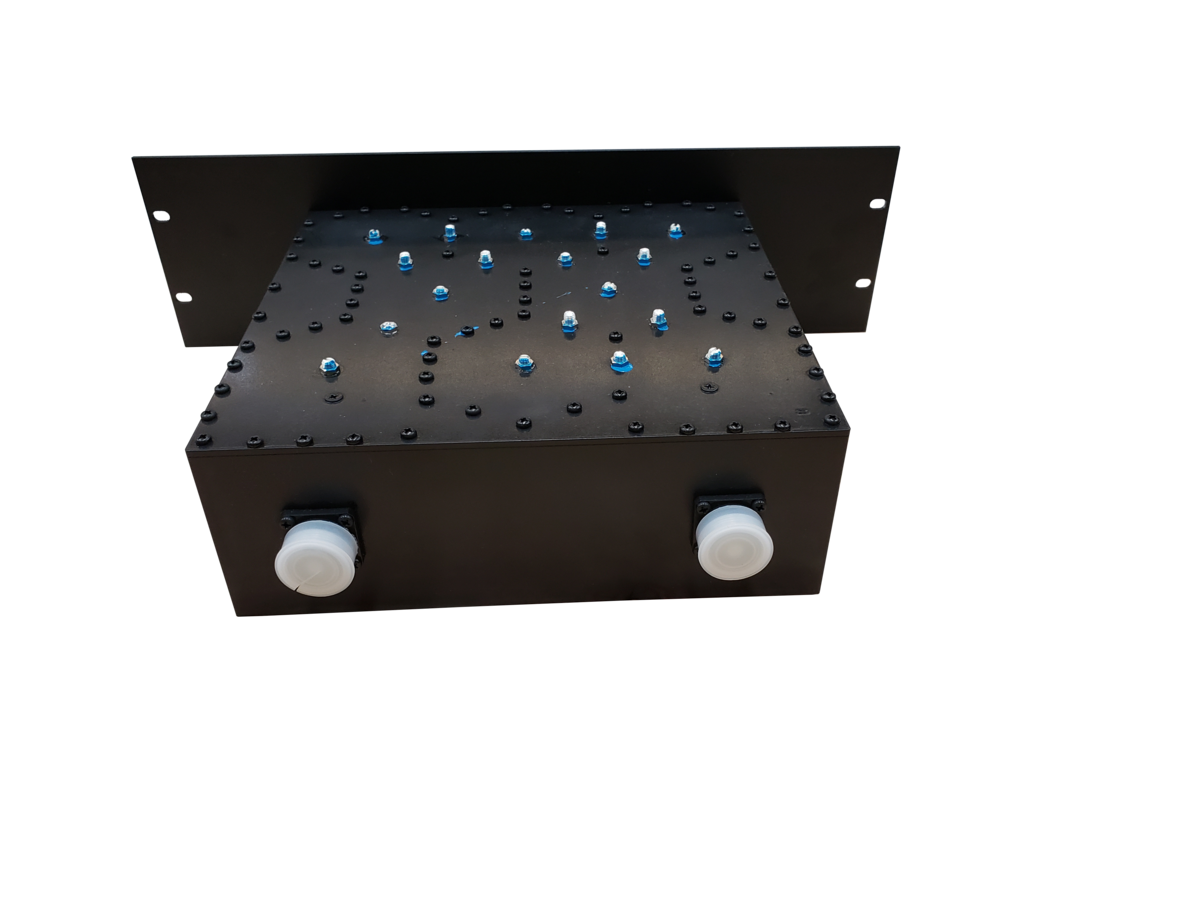

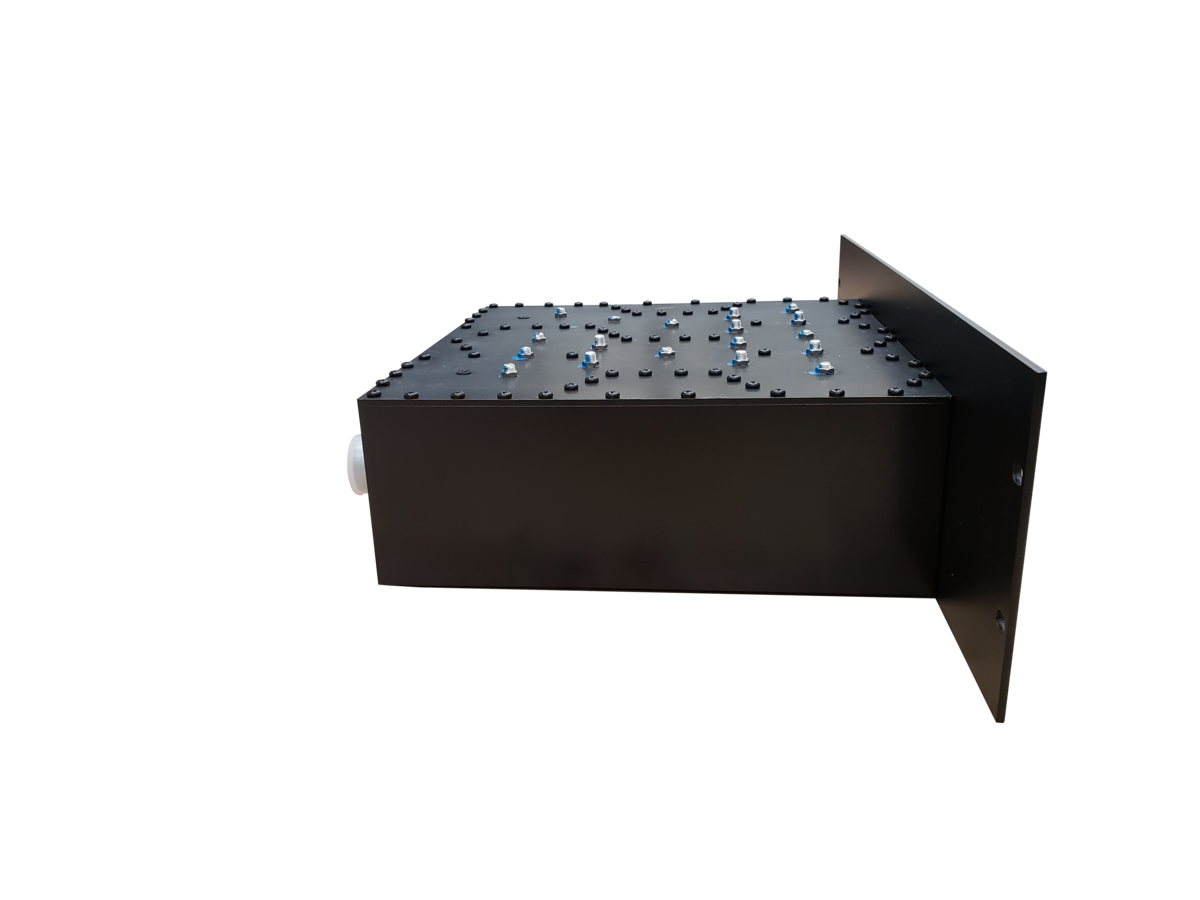

RFI’s range of high power compact multi-resonator milled aluminum bandpass filters are ideal for use where space is restricted or at a premium and where a 19” rack mounting facility is available. The sharp skirt response, high power rating and low passband insertion loss make these filters ideal for use as post filters cleaning up transmitter carriers or Tx sub-bands. The temperature stable resonators provide a wide operational temperature range ensuring important electrical specifications are maintained in extreme temperature conditions.
• Compact temperature-stable design
• 5MHz Typical Pass Band
• Low insertion loss ripple
• 3RU 19” Rack mount front panel
• PIM rated
• Suitable for Multi-Carrier Operations
Specifications:
| Return Loss dB | 18 (typ.) |
| Insertion Loss dB | 1.5 (typ.) |
| Power Rating Watts | 500W |
| Operational Temperature Range | – 30 C to 60° C / – 22° F to 140° F |
| Connector | 7-16 DIN(F) |
| Frequency Range | 450 – 470 |
| Dimensions | 133x483x270mm |
| Brand | RFI |
| Component Type | Milled Filter |
