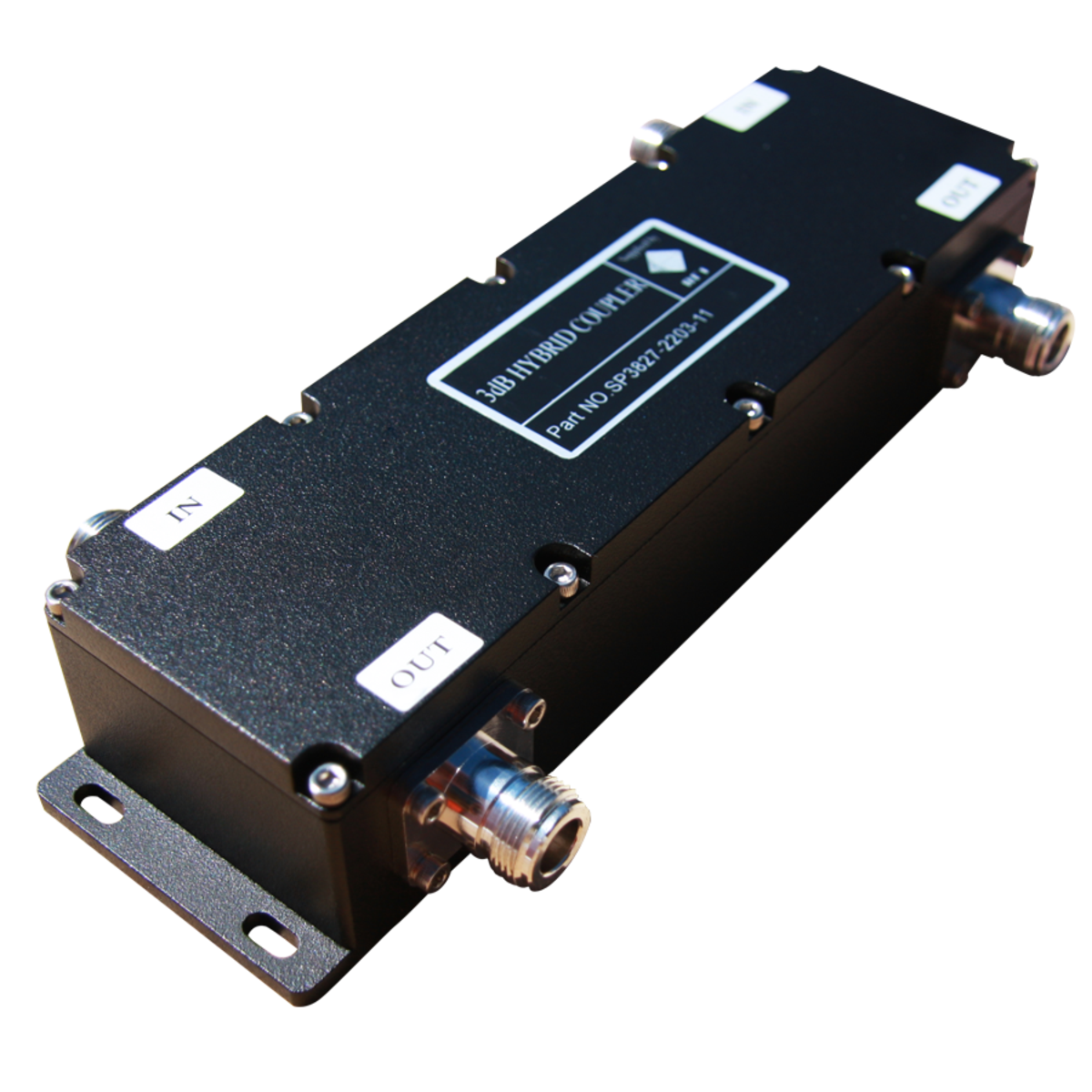

RFI 4-Port 3dB 380-2700MHz 200W Hybrid Coupler With N(F) Connectors
RFI 4-Port 3dB 380-2700MHz 200W Hybrid Coupler With N(F) Connectors - Image 2
RFI 4-Port 3dB 380-2700MHz 200W Hybrid Coupler With N(F) Connectors - Image 3

RFI 4-Port 3dB 380-2700MHz 200W Hybrid Coupler With N(F) Connectors

The 4-Port 3dB Hybrid Coupler covers UHF PMR and cellular bands from 380-2700MHz with a low Passive Inter- Modulation, high Peak Instantaneous Power and high environmental IP rating. Typically used to combine either in-band carriers or carriers across multiple bands to be fed into antenna feeders or In-Building leaky feeder or in-building Distributed Antenna Systems. Designed to IP65 the Hybrid Coupler can be used in both indoor and outdoor applications.

$498.95

Category: Tag:

Description

Features:

-Broadband 380-2700MHz covering UHF PMR and cellular bands.
-Low Insertion Loss
-High Isolation (Ports 1 & 2) across full bandwidth >23dB
-Suitable for use in high power multi-carrier transmission systems
-Manufactured to a low PIM ? -150dBc rating (3rd Order 2x43dBm carriers).
-PIP Rating of 3kW
-Average Power rating of 200W
-Environmental IP 65 rating



Specifications:

PIM 3rd Order 2x43dBm ≤ – 150dBc
Finish Black – Painted
Impedance 50 Ohms
Return Loss dB 18dB (min)
Power Rating Watts 200
Operational Temperature Range -40°C to +60°C / -40°F to +140°F
Connector N(F)
Frequency Range 380 – 2700
Brand RFI
Component Type Hybrid Coupler
