Description
Features:

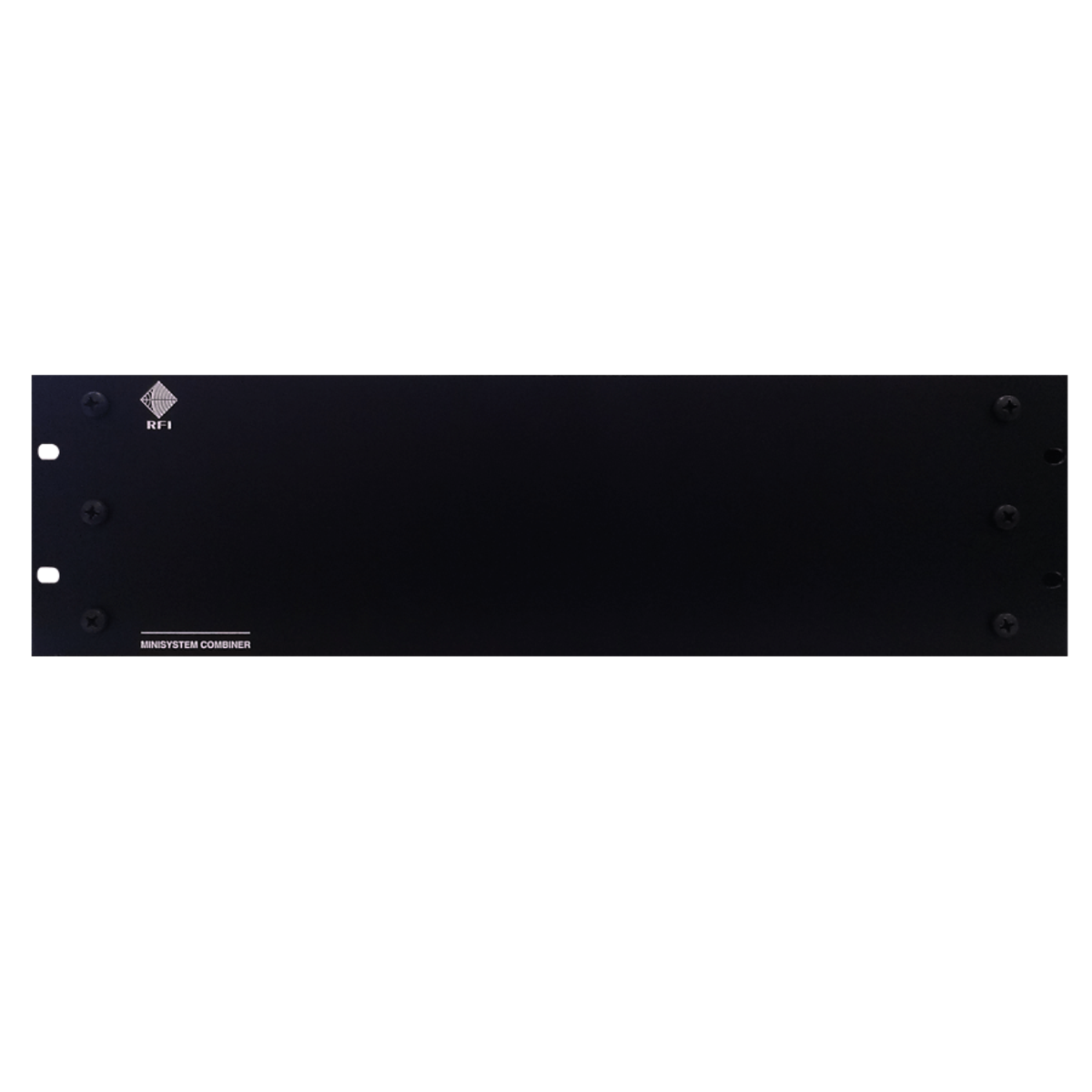

The MiniSystem Combiner (MSC) comprises a transmitter combiner using dual-stage isolators and innovative hybrid combining techniques to provide excellent Tx-Tx isolation and to minimize intermodulation (IM). The MiniSystem Combiner (MSC) also features an integral receiver splitter.
The integrated high-quality bandpass duplexer provides Rx preselectivity and Tx-Rx system isolation performance.
• 4 channel capacity
• 50W Tx input power (per channel)
• Integrated duplexer for single Tx / Rx antenna operation
• 100% Tx Duty Cycle
• Open-circuit antenna port VSWR protection
• Compact 19in rack mounting
Specifications:
| Return Loss dB | 20 (typ.) |
| Insertion Loss dB | 9dB (typ) |
| Power Rating Watts | 50W per channel |
| Operational Temperature Range | – 30 C to 60° C / – 22° F to 140° F |
| Frequency Range | 400 – 430 |
| Dimensions | 133x483x430mm |
| Brand | RFI |
