Description

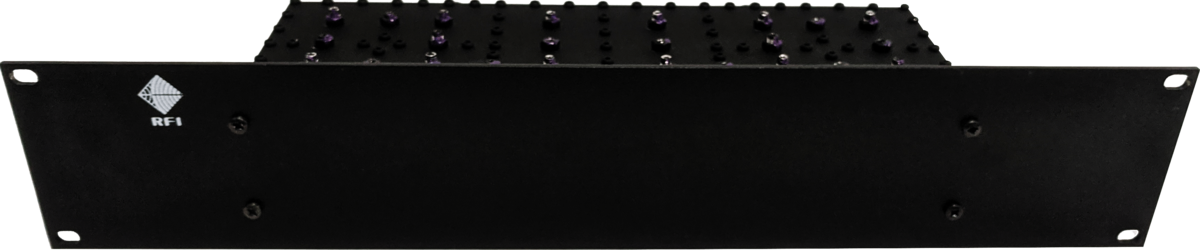

RFI’s range of compact multi-resonator milled aluminum bandpass duplexers are ideal for use where space is restricted or at a premium. The broad pass band characteristic, good duplex port to port isolation, high power and multi-carrier capability make these ideal duplexers for either single carrier or combined multicarrier systems. The temperature stable resonators provide a wide operational temperature range ensuring important electrical specifications such as insertion loss and Tx port to Rx port isolation are maintained.
Features:
- Compact temperature-stable design
- 1.5MHz Passband Low & High ports
- 100W (CW) Power rating
- Low insertion loss ripple
- 2RU 19” Rack mount front panel
- 4 to 5MHz Tx to Rx Duplex split
- PIM and PIP rated
Specifications:
| Pass bandwidth | 1.5 |
| Minimum Separation MHz | 4 |
| Return Loss dB | 20(min) |
| Insertion Loss dB | 1.7(max) |
| Power Rating Watts | 100 |
| Operational Temperature Range | -30 to +60 C / -22 to +140 F |
| Connector | N(F) |
| Frequency Range | 380 – 400 |
| Dimensions | 88.9x483x107mm |
| Brand | RFI |
