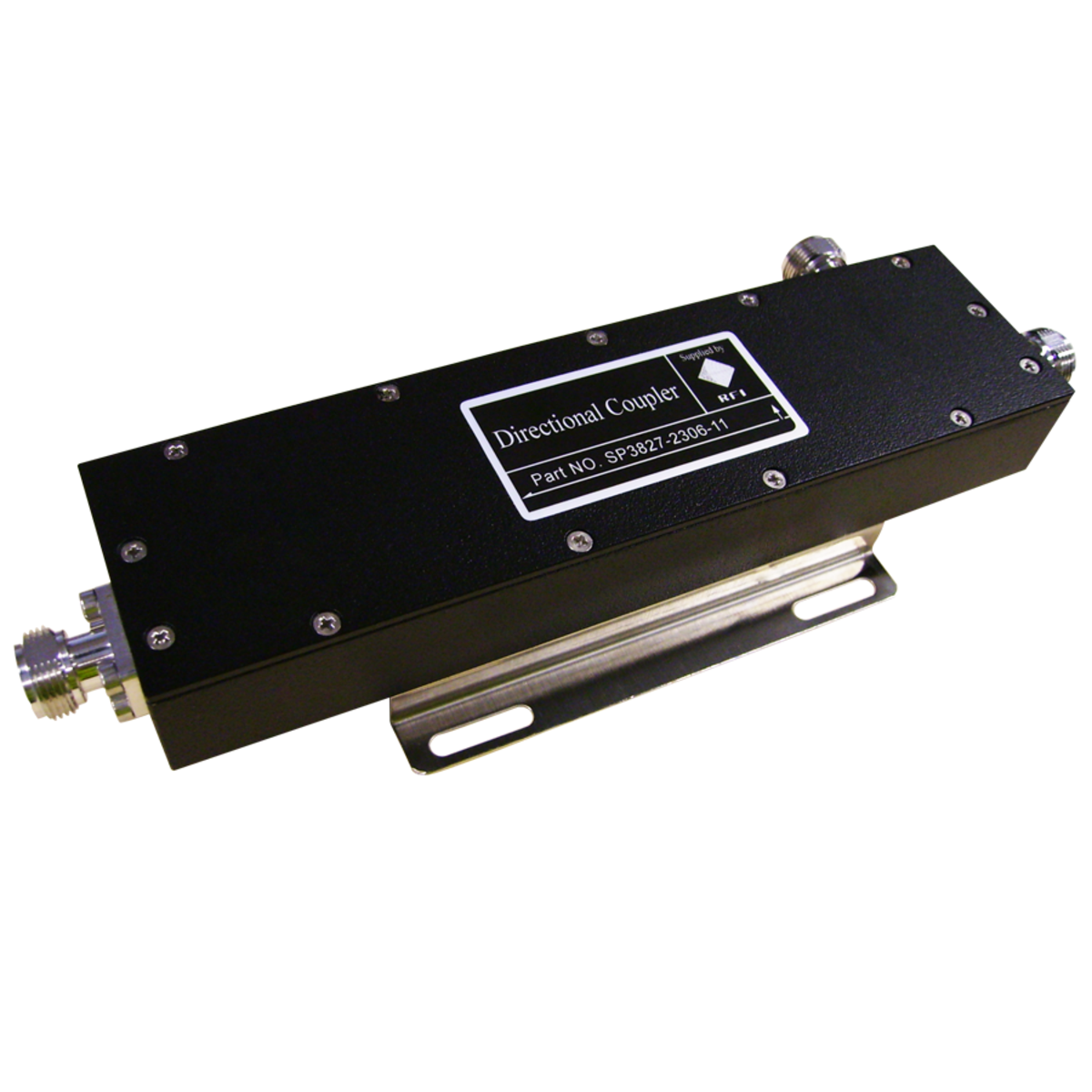

RFI 3-Port 30dB 380-2700MHz 200W Directional Coupler With N(F) Connector

RFI 3-Port 30dB 380-2700MHz 200W Directional Coupler With N(F) Connector

RFI 3-Port Directional Couplers are used in a variety of RF combining, sampling and power splitting applications, typically used in DAS (Distributed Antenna Systems) for sampling RF for fiber-fed systems and distributing power throughout feeder cable networks. Using directional couplers suitable for covering UHF to high-end cellular frequencies saves on the cost of upgrades when public safety radio coverage may have to be accommodated on a DAS designed for cellular coverage. The RFI multiband directional couplers are available in a range of coupling values which gives the network designers and planners the ability to optimize and balance RF levels throughout a DAS network.

$202.71

Available on backorder

Description

Features:

• Multi-Band 380-2700MHz covering UHF and Cellular bands.
• Low PIM ≤ -150dBc (3rd Order 2x43dBm carriers).
• Primarily used for optimizing feeder cable signal distribution.
• Suitable for use with simplex and duplex channels, analog or digital radio communications.
• Optional 7.16DIN Termination Connector SP3827-23xx-DIN range available.
• Suitable for use in multi-carrier environments.
• Wide range of coupling values.
• Environmental IP 67 Rating.
• Includes S/S Mounting bracket.



Specifications:

Impedance 50 Ohms
Power Rating Watts 200
Operational Temperature Range -30 to +60 C / -22 to +140 F
Connector N(F)
Frequency Range 380 – 2700
Brand RFI
Component Type Directional Coupler
