Description

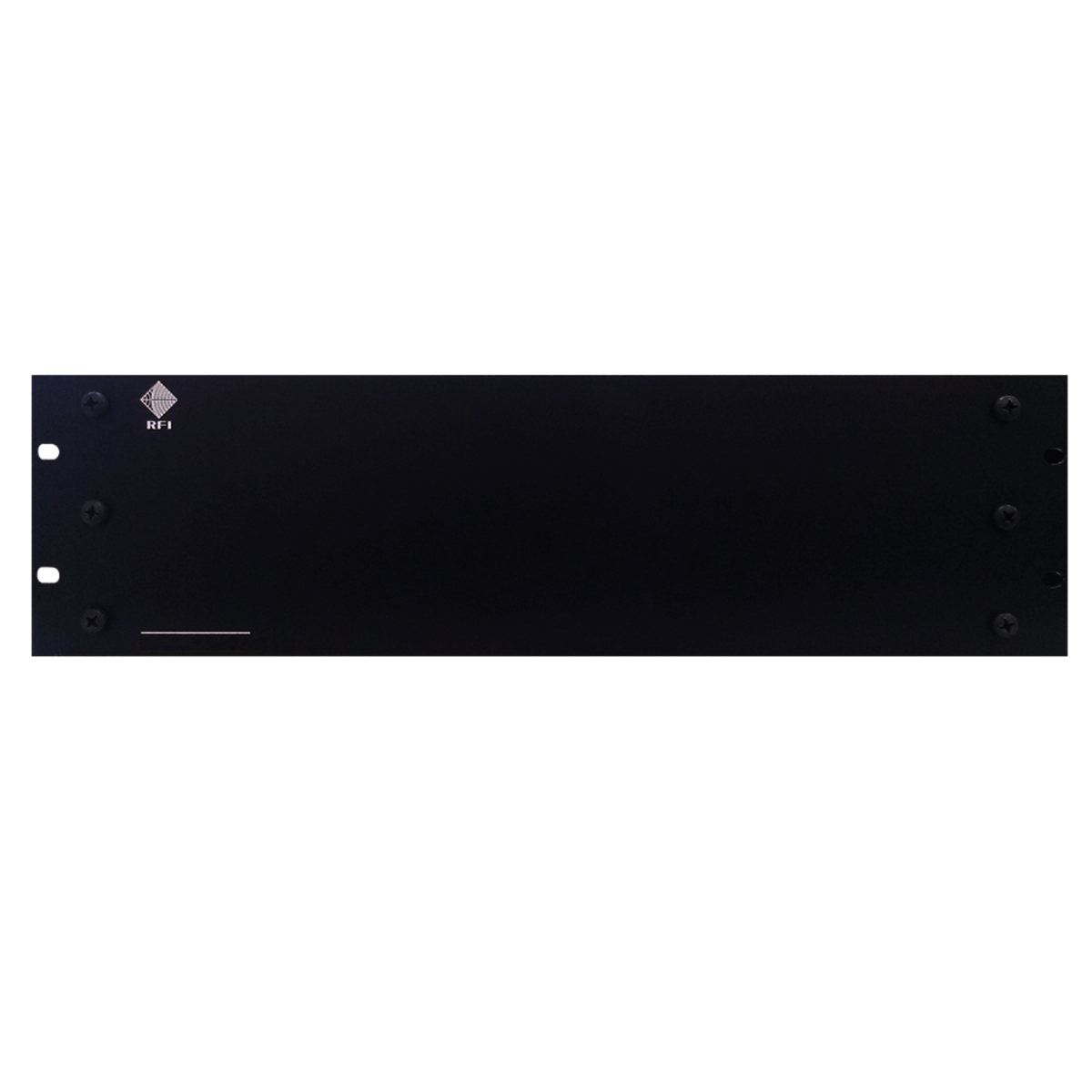

Transmitter Hybrid Combiners cater for most standard frequency sub-bands and channel spacings. The Tx combiner uses dual-stage isolators and hybrid combining techniques to provide excellent Tx-Tx isolation and to minimize intermodulation (IM)impacts.
Features:
– 2 to 9 channel capacities
– 50W or 100W Tx input power (per channel)
– 100% Tx Duty Cycle
– Open-circuit antenna port VSWR protection
– Compact 19in rack mounting
Specifications:
| Isolation | Tx-Tx: 70dB(typ) / Ant-Tx:60dB(typ) |
| Impedance | 50 Ohms |
| Return Loss dB | 20 (typ) |
| Insertion Loss dB | 6 (typ) |
| Operational Temperature Range | -30 to +60 C / -22 to +140 F |
| Connector | N(F) |
| Frequency Range | 450 – 470 |
| Dimensions | 133x483x430mm |
| Mounting | 19″ Rack Mount |
