Name: RFI 2.4 & 5.0 GHz Compact WiFi Directional Panel Antenna With Integrated N(F) - Digital Sydney Communications
Price: 66.28 AUD
Availability: InStock
Rating: 5.00 (1 reviews)

RFI 2.4 & 5.0 GHz Compact WiFi Directional Panel Antenna With Integrated N(F)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

This is a compact 12 dBi directional antenna designed to provide extended coverage for both 2.4 GHz & 5.8 GHz wireless networks. The directional design of the PA-WIFI-N offers increased wireless signal coverage in a specific direction allowing for improved data throughput at further distances.

$66.28

Description

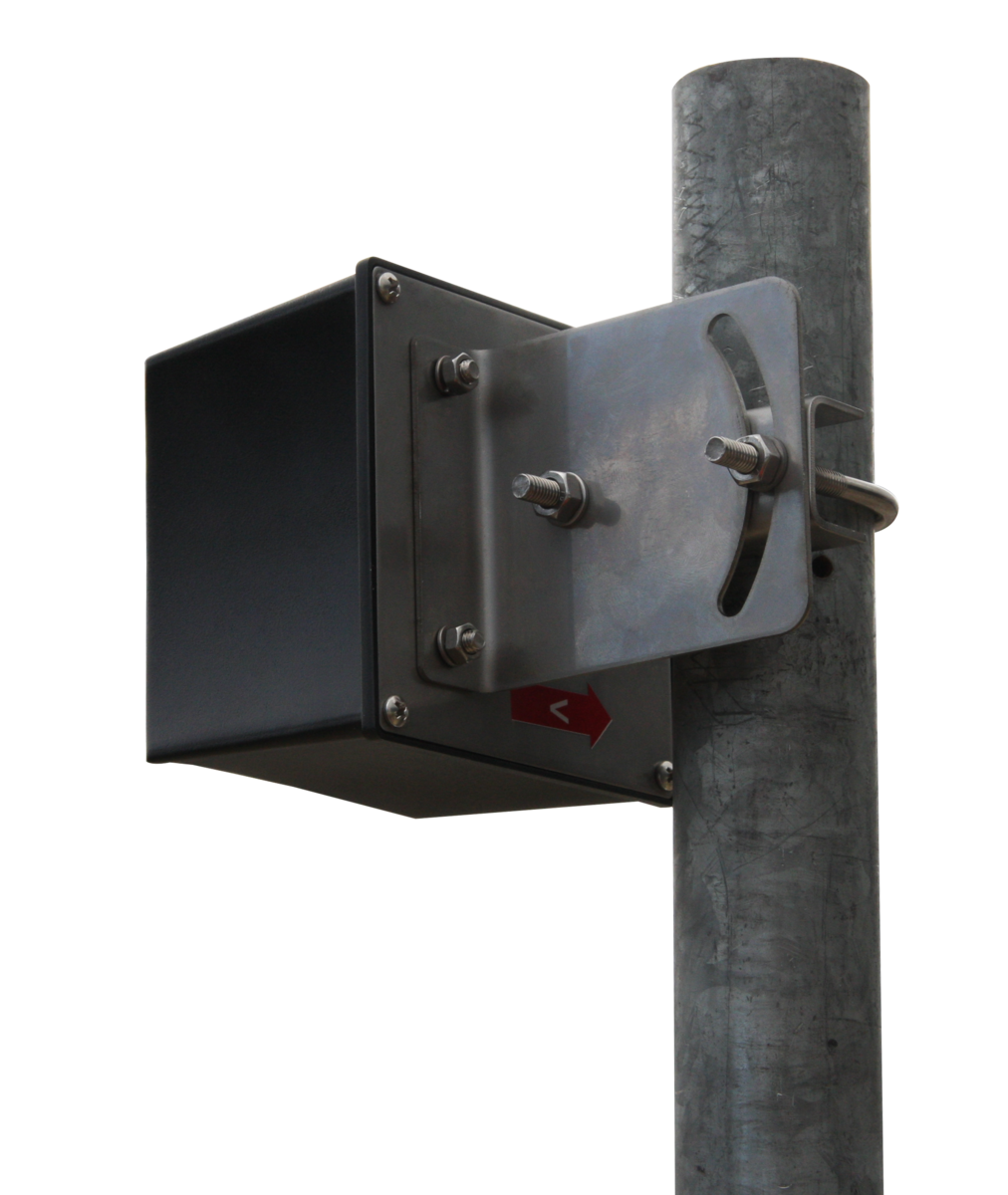

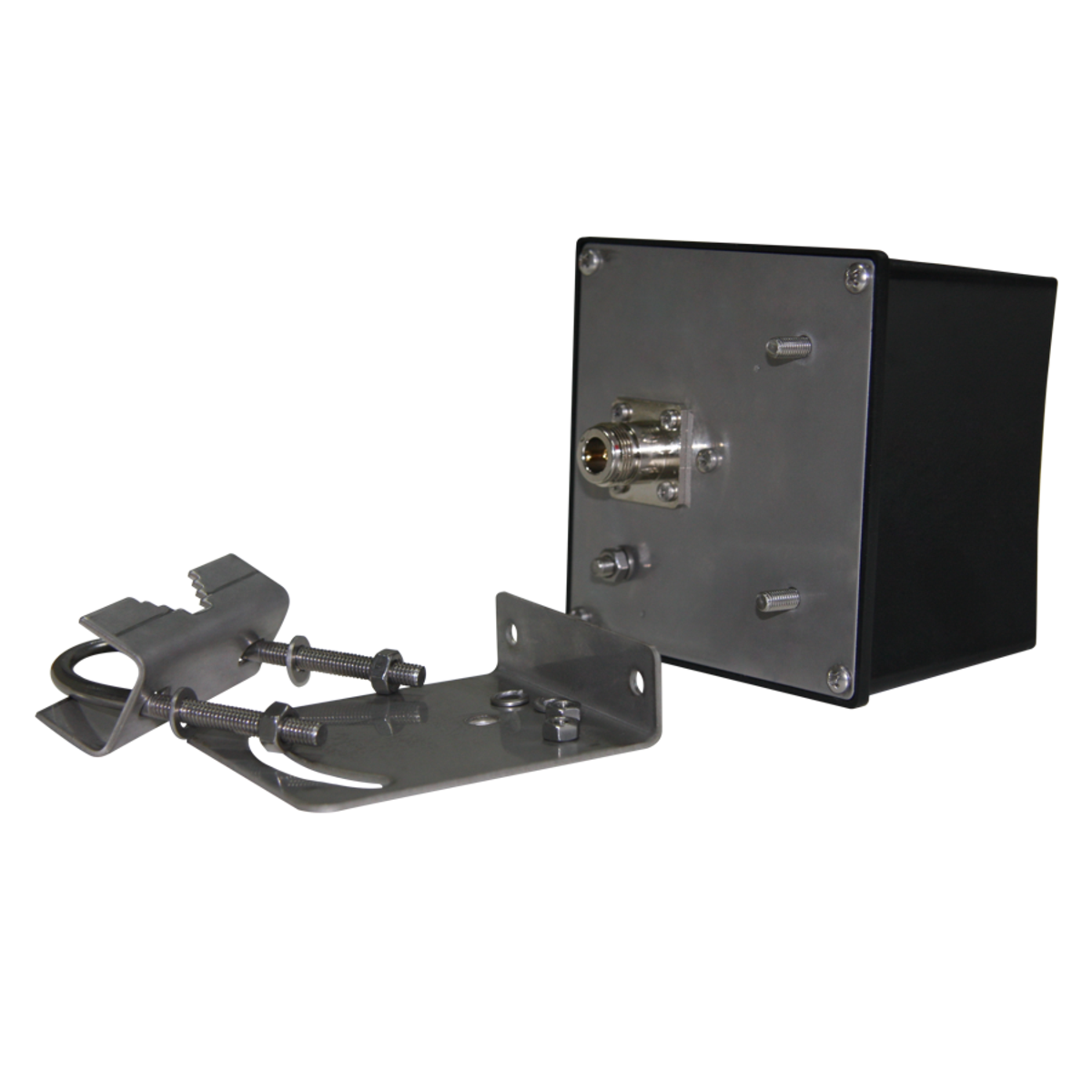

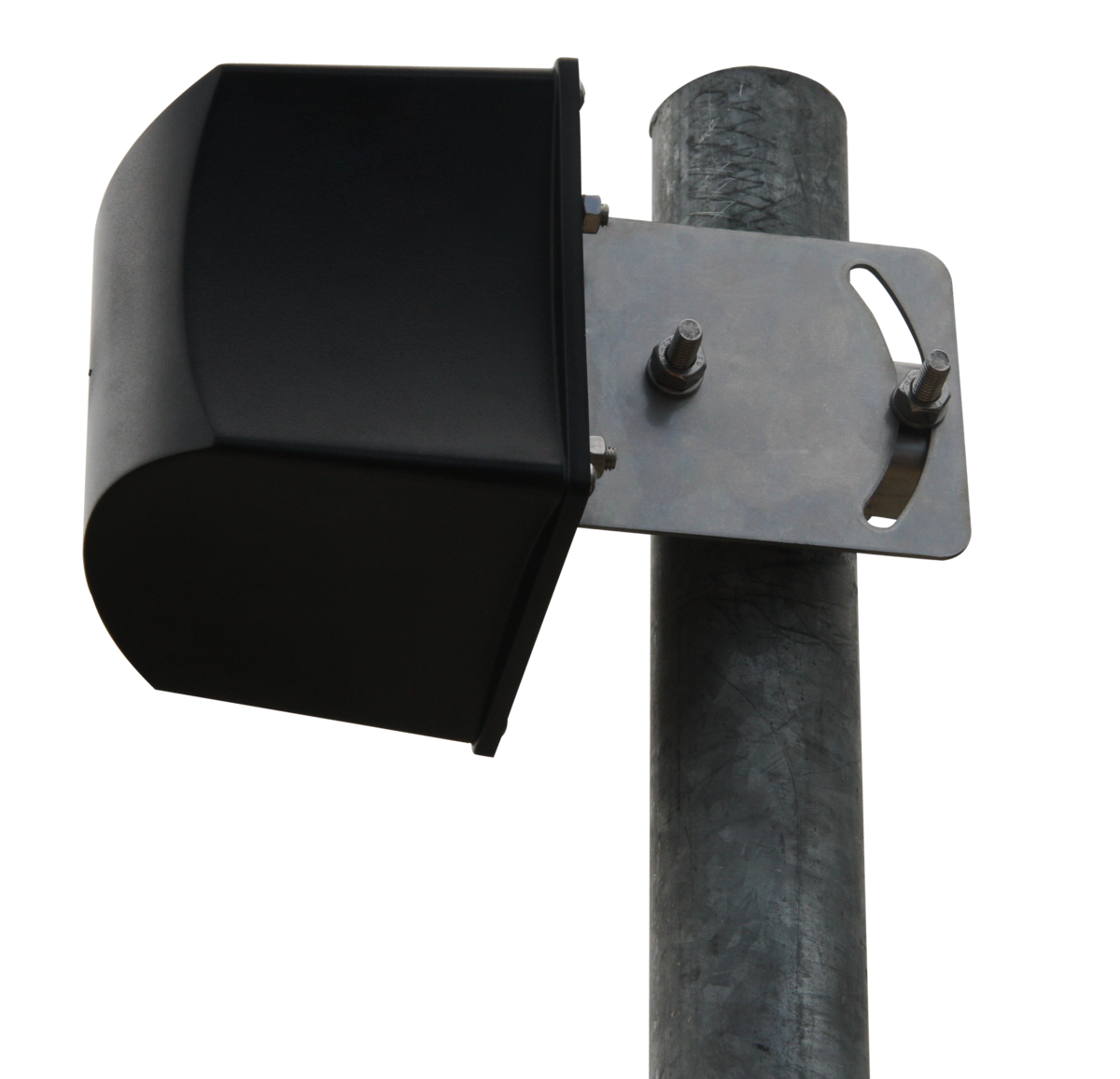

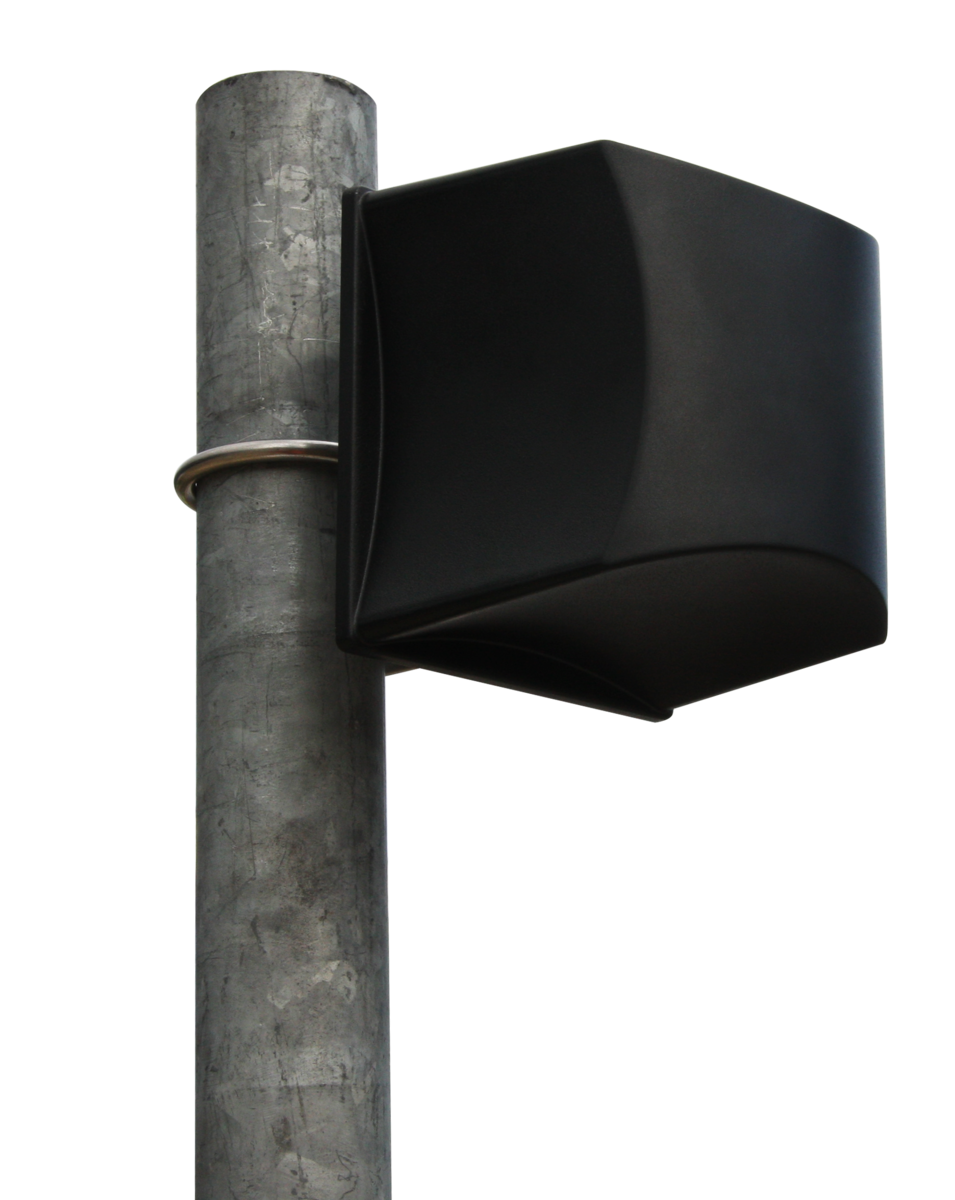

This includes a pole mount which includes angle adjustment focusing signal in a specific direction. It has an integrated N type female connector on the back of the unit which allows customer cable installation.

Features:
– Compact radome
– Rugged construction
– Easy installation
– Adjustable pole mount bracket (45mm max. / 23mm min.)

Specifications:

Packaging	Carton
Cable And Connector	Integrated N female connector
Band	WiFi
Nominal impedance	50
Power w	25
Nominal Gain Dbi	12
Dimensions	104 x 104 x 174
VSWR	<3.0:1
Termination	Integrated N-type female
Construction	ABS black radome with stainless steel back plate
Tuned bandwidth	Full. No tuning required
Horizontal Beamwidth	40
IP Rating	IP65
Brand	RFI
Weight [kg]	0.484
