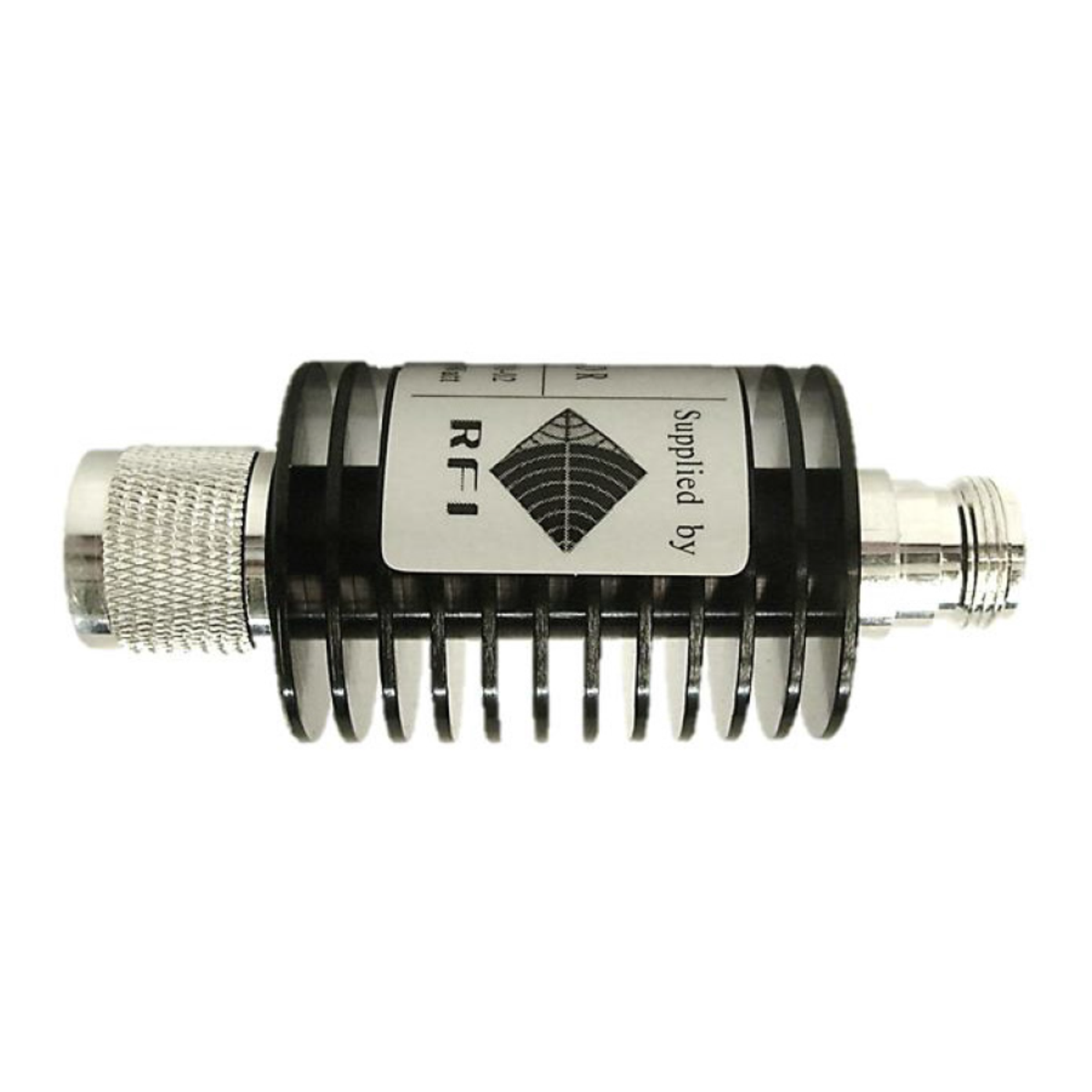

RFI 15dB DC-2.5GHz 10W Coaxial in-Line Attenuator With N (M/F) Connector

RFI 15dB DC-2.5GHz 10W Coaxial in-Line Attenuator With N (M/F) Connector

RFI has a wide range of 50 Ohm RF Coaxial In-Line Attenuators in various fixed dB values, power ratings and connector types. Used primarily in multicoupling and bench test and measurement applications. The full range of in-line attenuators are air-cooled through natural convection with conservative power to heatsink surface area power density factors.

$122.35

Category: Tag:

Available on backorder

Description

– 10Watt power rating
– DC to 2.5GHz Frequency Range
– Available in 2, 3, 6, 10, 15, 20, and 30dB attenuation values
– Good VSWR / Return Loss across full DC to 2.5GHz bandwidth.



Specifications:

Termination connectors N ( M/F )
Attenuation value 15dB
Attenuation accuracy +/- 1.1dB
Power Rating Maximum 10W
Finish Painted Black
Impedance 50 Ohms
Power Rating Watts 10W
Operational Temperature Range -40° C to +50° C / -40° F to +122° F
Connector N(m/f)
Frequency Range DC – 2500
Dimensions L 85 x Dia 40mm / L 3.3” x Dia 1.57”
Brand RFI
Component Type Attenuator
