Description
Features:
As a global supplier of RF Multi-coupling equipment, RFI caters to a number of duplexer filtering characteristics, passbands, port to port isolation, power ratings and physical size constraints to mention a few of the important technical considerations.
• High Power 150 W
• Tx / Rx reversible on Lo / Hi ports
• Typical 4 to 6 MHz Tx to Rx split
• Low insertion loss
• Very high >90 dB Lo to Hi port isolation

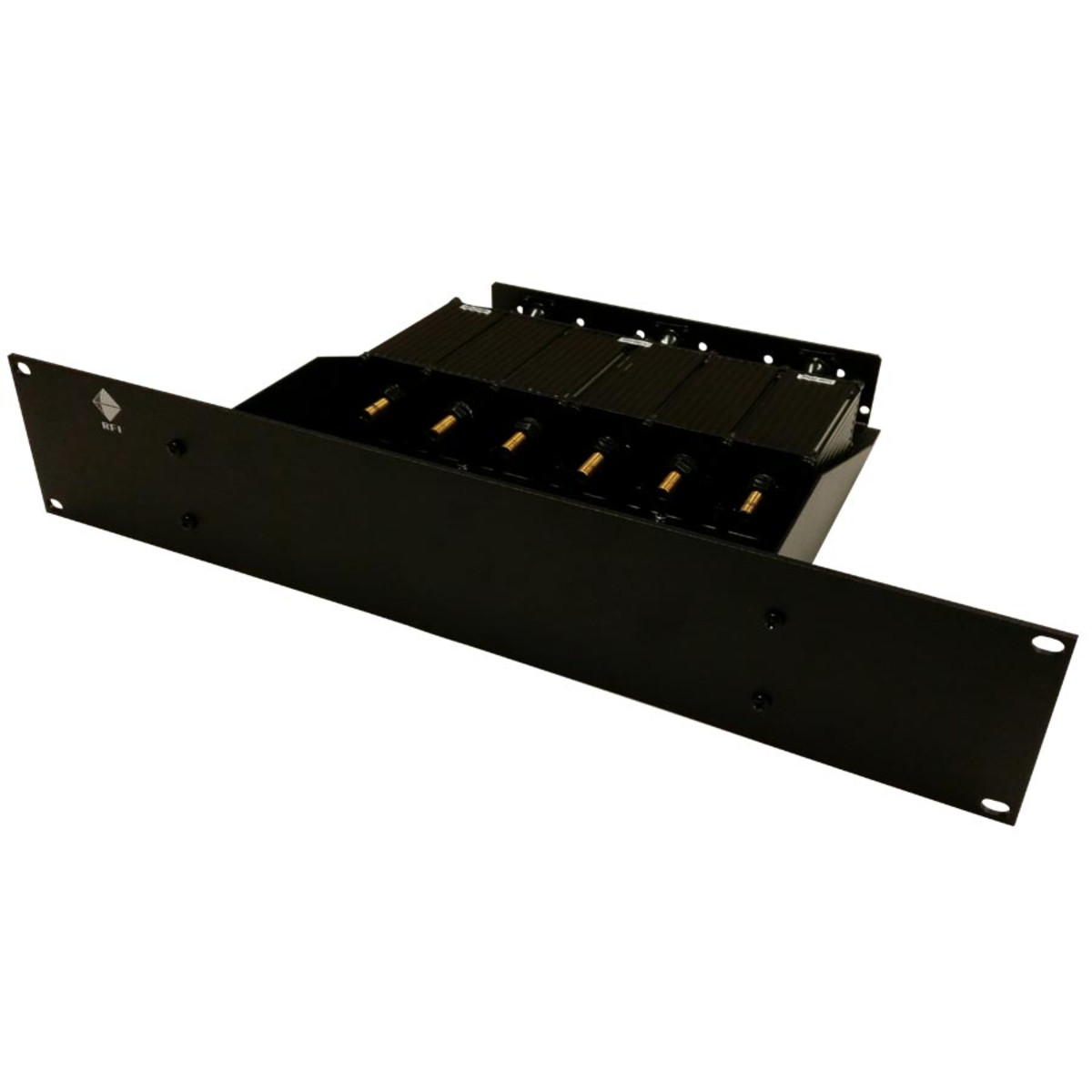

• 2RU 19” rack mounting
Specifications:
| Input Power CW Max | 150 W* |
| Return Loss VSWR | 20 dB (min) / 1.22:1 |
| Minimum Separation MHz | 5 |
| Impedance | 50 ohms |
| Band | 145-175 MHz |
| Operational Temperature Range | -30°C to 60° C / -22°F to 140° F |
| RF Connectors | N female |
| Frequency Range | 144 – 174 |
| Dimensions | 89.5 mm x 483 mm x 295 mm / 3.52 in x 19 in x 11.6 in |
| Construction | Painted Black with 2RU powder coated front panel |
| Brand | RFI |
