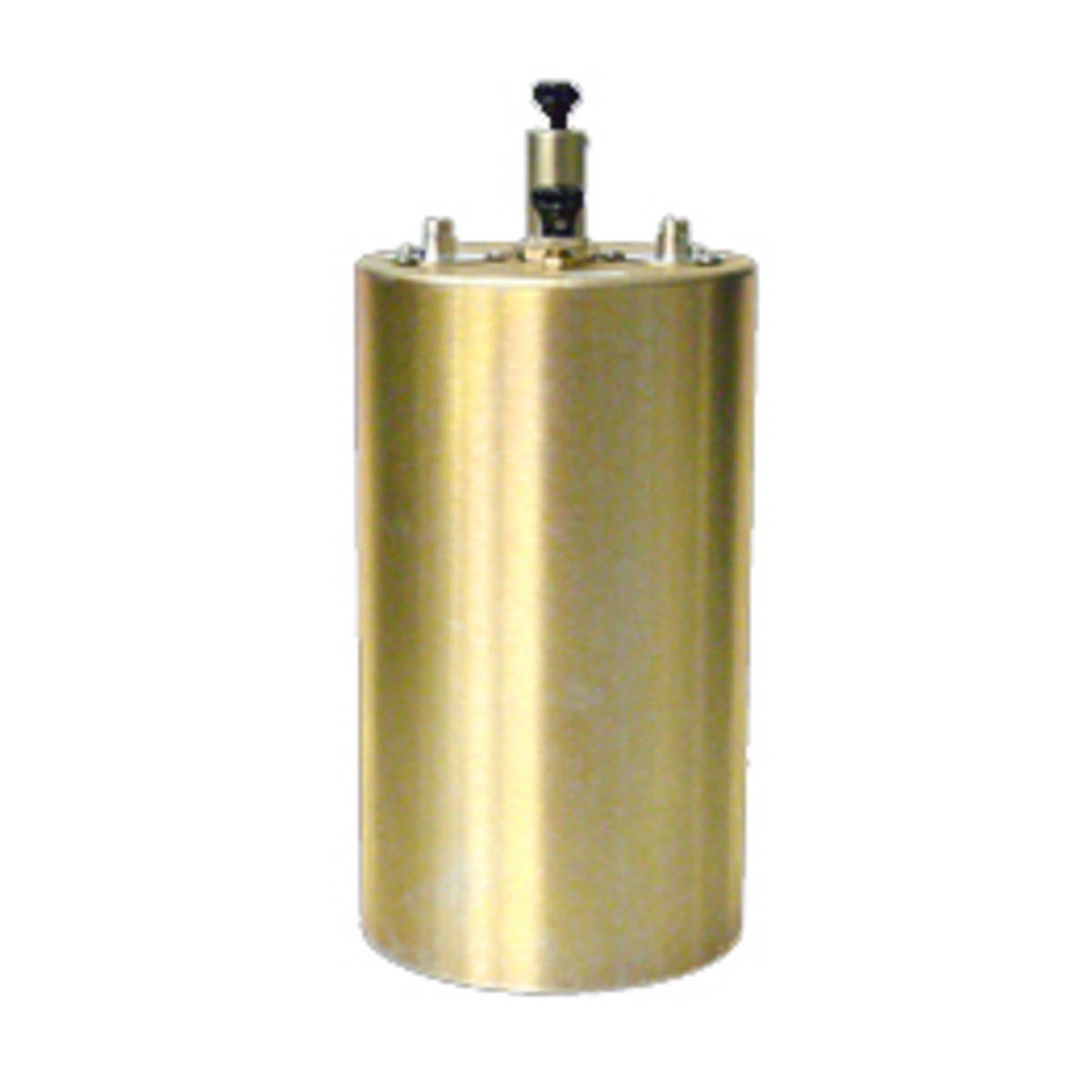

RFI 144-174MHz 1/4 W 6″ Bandpass Filter

RFI 144-174MHz 1/4 W 6″ Bandpass Filter

The Band Pass configured cavity passes one narrow band of frequencies at the cavities frequency of resonance and symmetrically attenuates frequencies with increasing attenuation above and below the pass frequency.  The selectivity is adjustable by symmetrically rotating the loops. Higher selectivity trades off on higher insertion loss. Power handling is influenced by the insertion loss setting.

$879.67

Category: Tag:

Available on backorder

Description

Features:

-Suits VHF, PMR, Data, Trunking and Paging applications
-Suits analog and digital technologies
-A range of response styles for different applications
-Temperature-compensated
-Rugged reliable construction
-Can be cascaded to provide enhanced characteristics



Specifications:

Cavity Filter Type Band Pass
Cavity diameter 6 Inch
Wavelength 1/4 Wave
Impedance 50
Insertion Loss dB 0.5 – 3.0
Power Rating Watts 125 – varies with insertion loss setting
Frequency Range 144 – 174
Component Type Cavity Filter
