Description
This crossband coupler may be used to separate VHF and UHF frequencies to or from a common RF path. Applications include connecting separate VHF and UHF antennas to a multi-band mobile two-way radio, or to combine VHF and UHF frequencies to broadband antennas or radiating cable (DAS) systems.

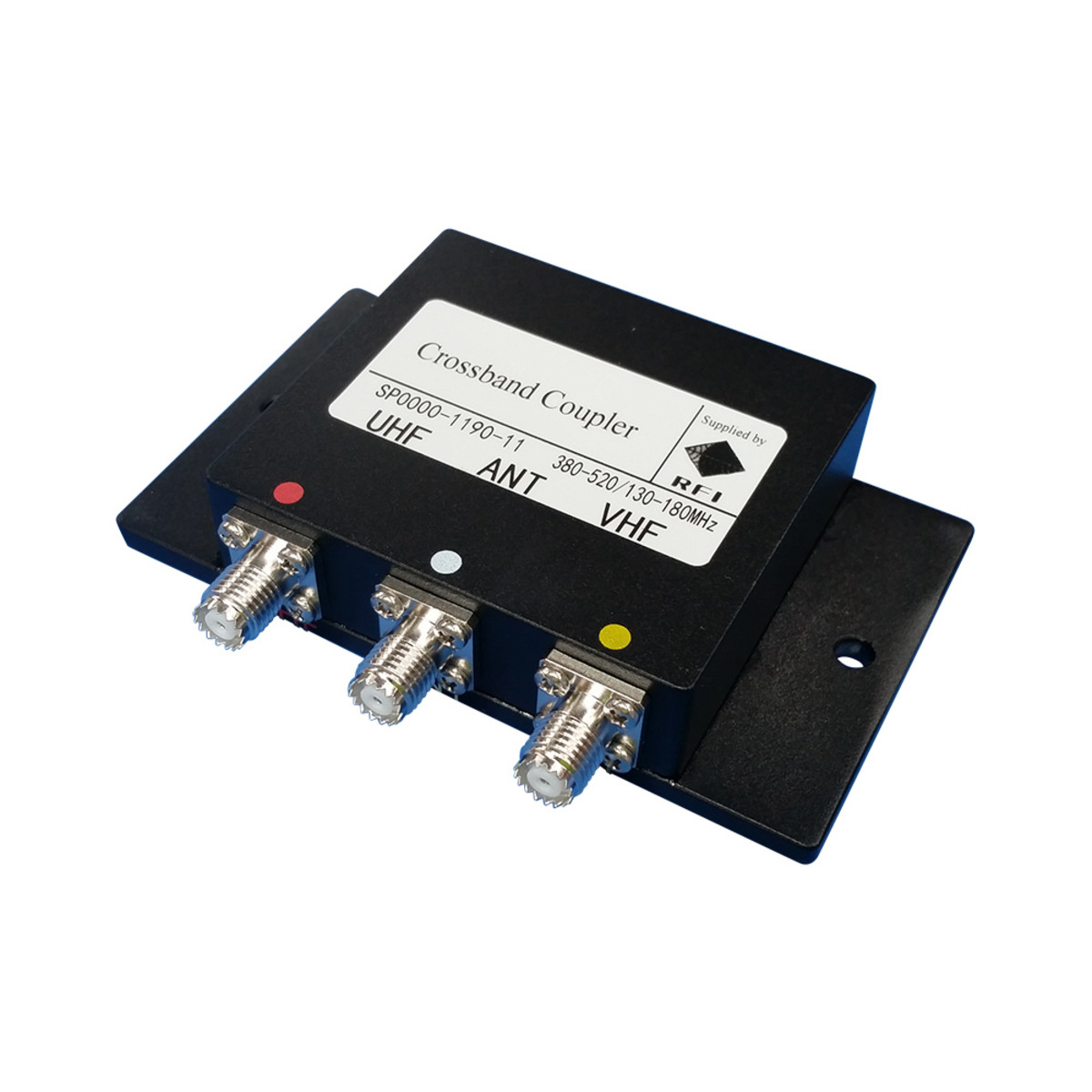

This product features excellent specifications in space-efficient housing that is designed for ease of installation. Rugged construction and a broad operating temperature range particularly suit in-vehicle applications. This product is supplied in a housing format using color-identifiers for ease of connection orientation, and with mini-UHF female connectors on all RF ports.
Specifications:
| Isolation | 50dB (min) |
| Impedance | 50 Ohms |
| Return Loss dB | 20dB (min) |
| Insertion Loss dB | 0.6 (typ) |
| Power Rating Watts | 50 |
| Operational Temperature Range | -20 to +60°C / -4 to +140°F |
| Connector | N(F) |
| Frequency Range | 50 – 520, 750 – 2500 |
| Dimensions | H=23 W=95 L=118 / H=1 W=3.7 L=4.6 |
| Construction | Milled aluminum, painted black |
| Frequency MHz | 50-520/750-2500 |
| Brand | RFI |
| Component Type | Crossband Coupler |
