Description
Features:

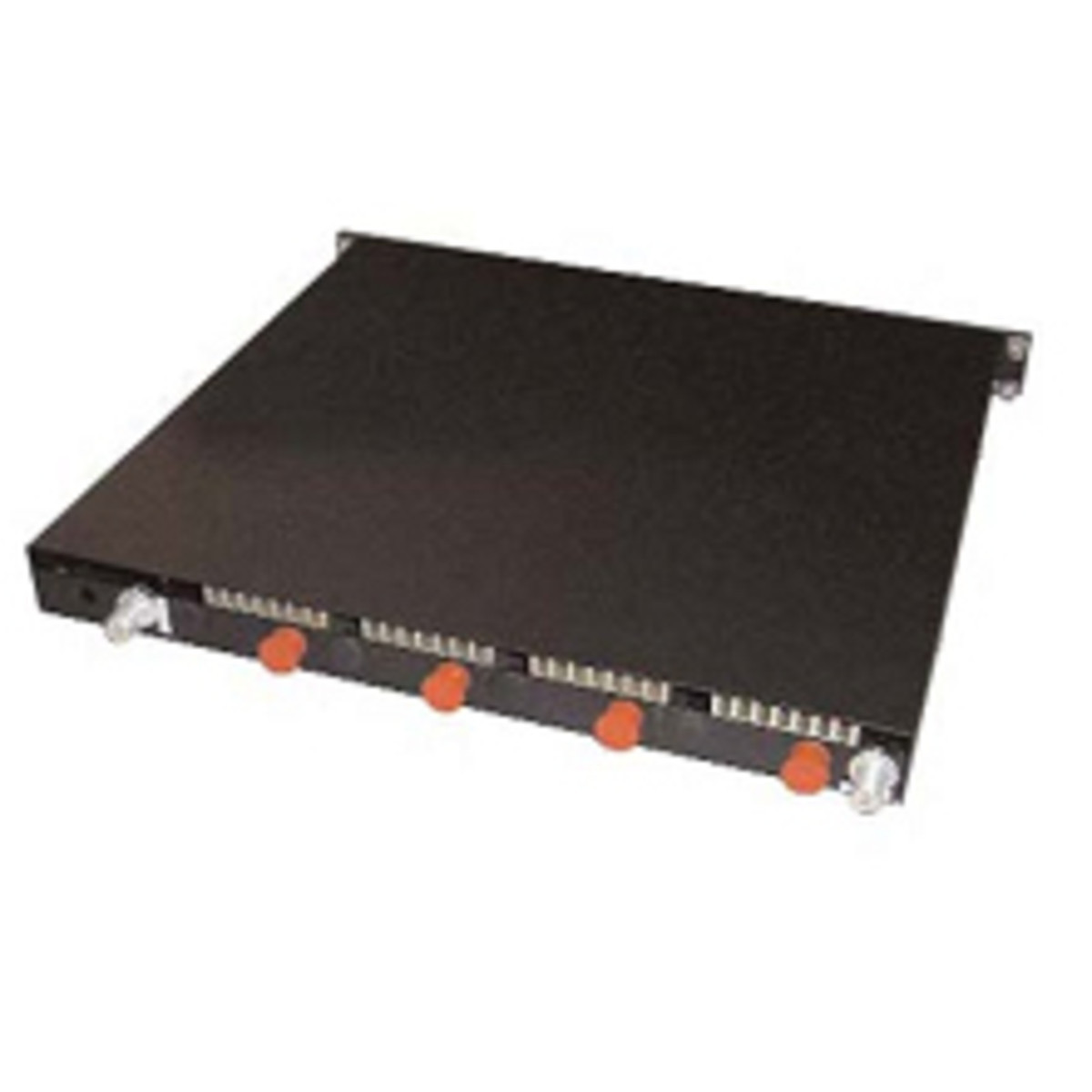

Single antenna-port mobiles may be connected to these combiners to provide operation on two-antenna configurations (one Tx and one Rx), or through a duplexer to a single antenna (i.e. Tx/Rx). These capabilities can significantly reduce tower clutter and loading, and simplify cabling installation at Control Centre facilities.
Models are available in the 132-150MHz, 150-174MHz, 380-450MHz, 400-470MHz, 450- 520MHz, 746-869MHz, 806-870MHz and 896-960MHz bands in standard configurations for 4, 8, 12, 16, and 32 capacities. Other frequency bands and higher channel capacities are also available upon request.
• Low Profile for Space Efficient Installation
• Frequency Agile with Predictable Isolation
• Analogue and Digital Compatible
• Models available to suit dual-port radios and full-duplex operation
• High power and integral Rx Pre-Amp
Specifications:
| Return Loss dB | 15dB(typ) |
| Insertion Loss dB | 15dB(typ) |
| Operational Temperature Range | -30° C to +60° C / -22° F to 140° F |
| Connector | N(F) |
| Frequency Range | 746 – 869 |
| Brand | RFI |
