Description

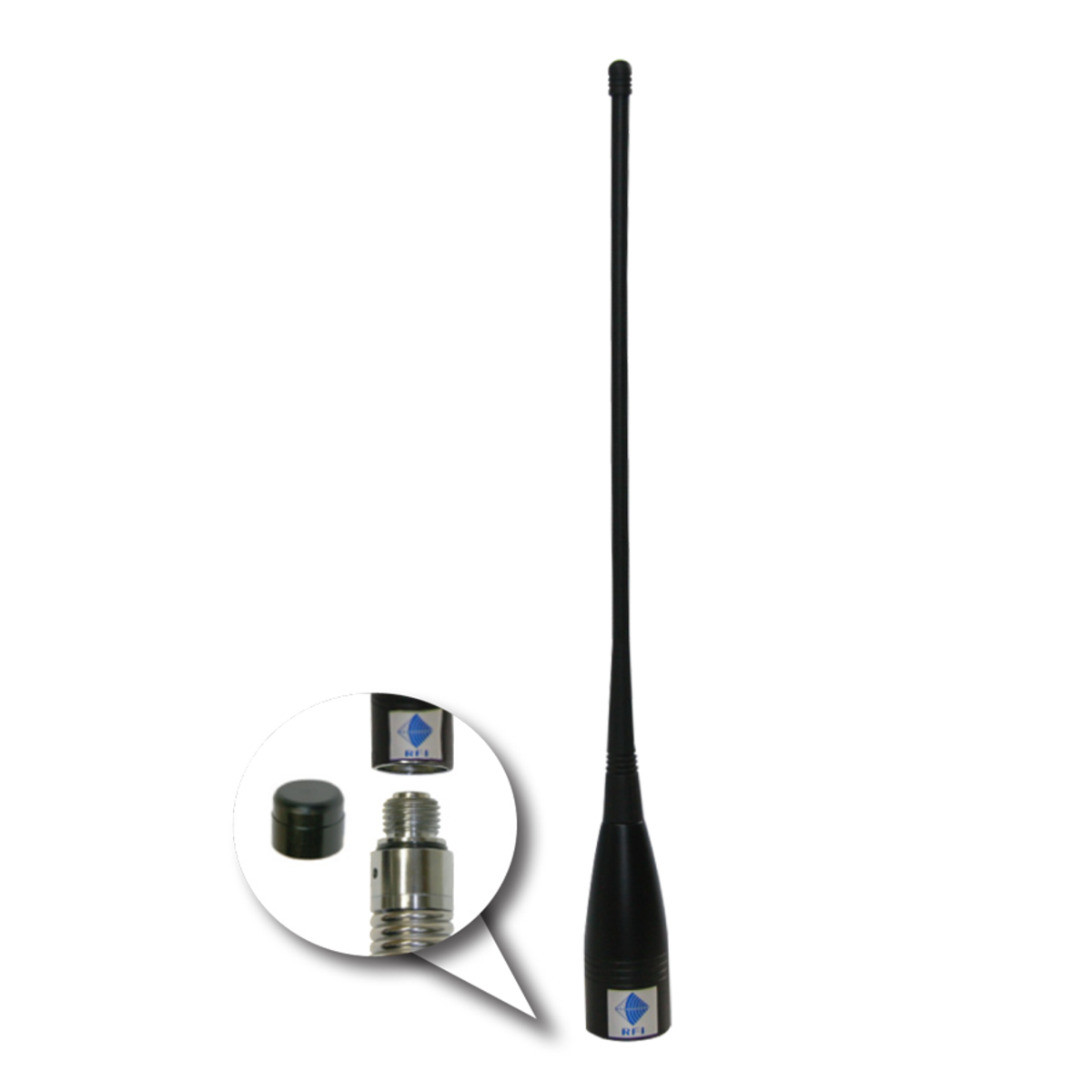

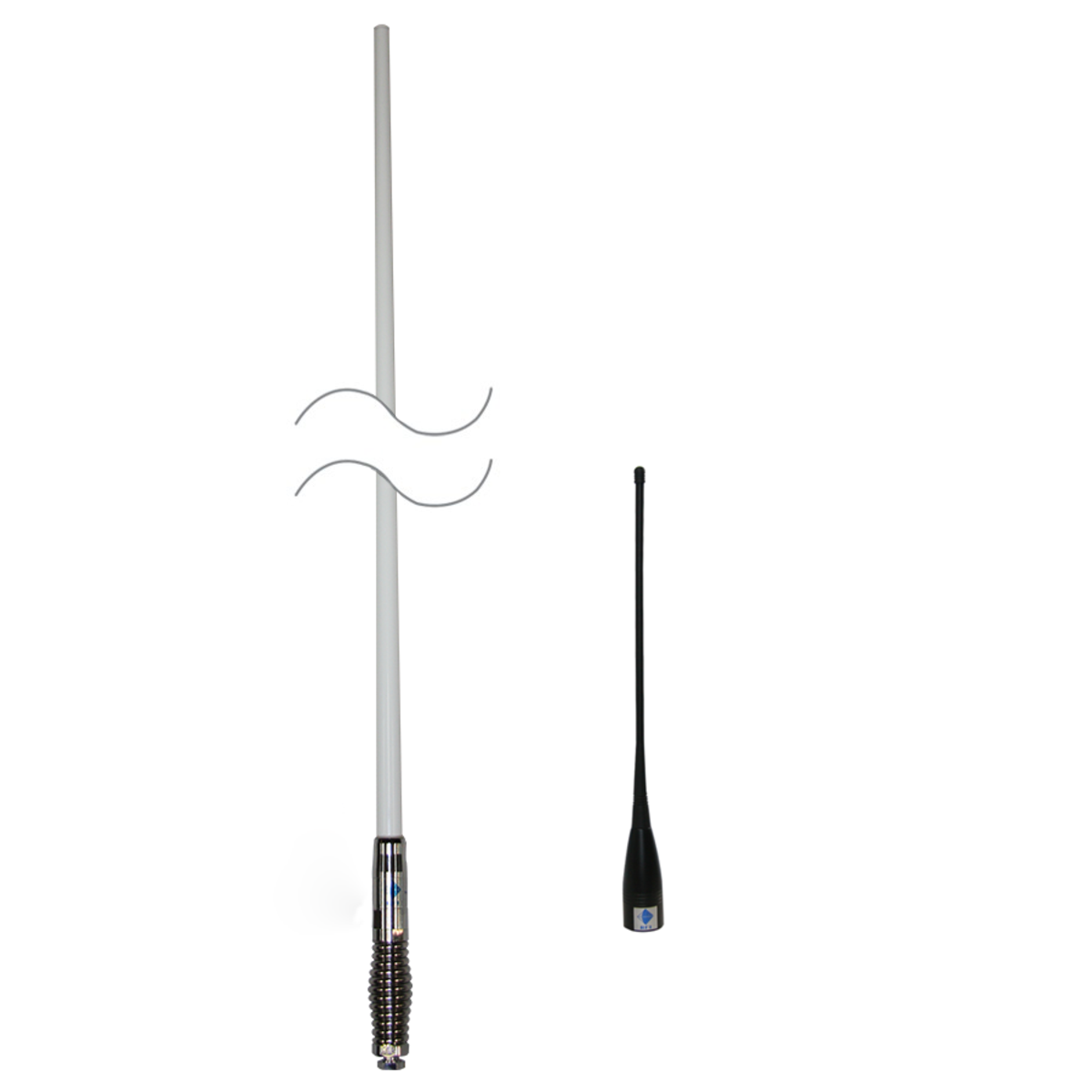

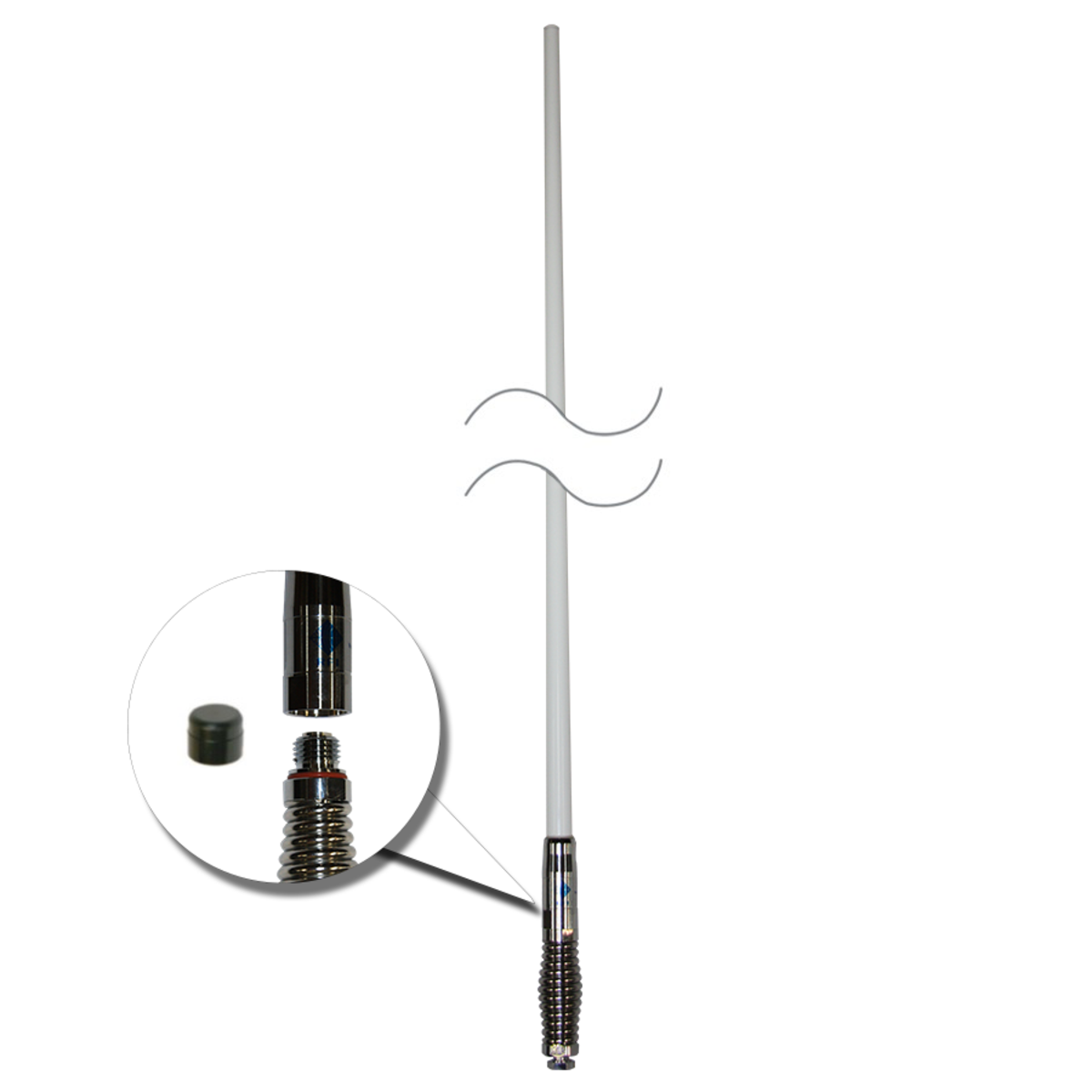

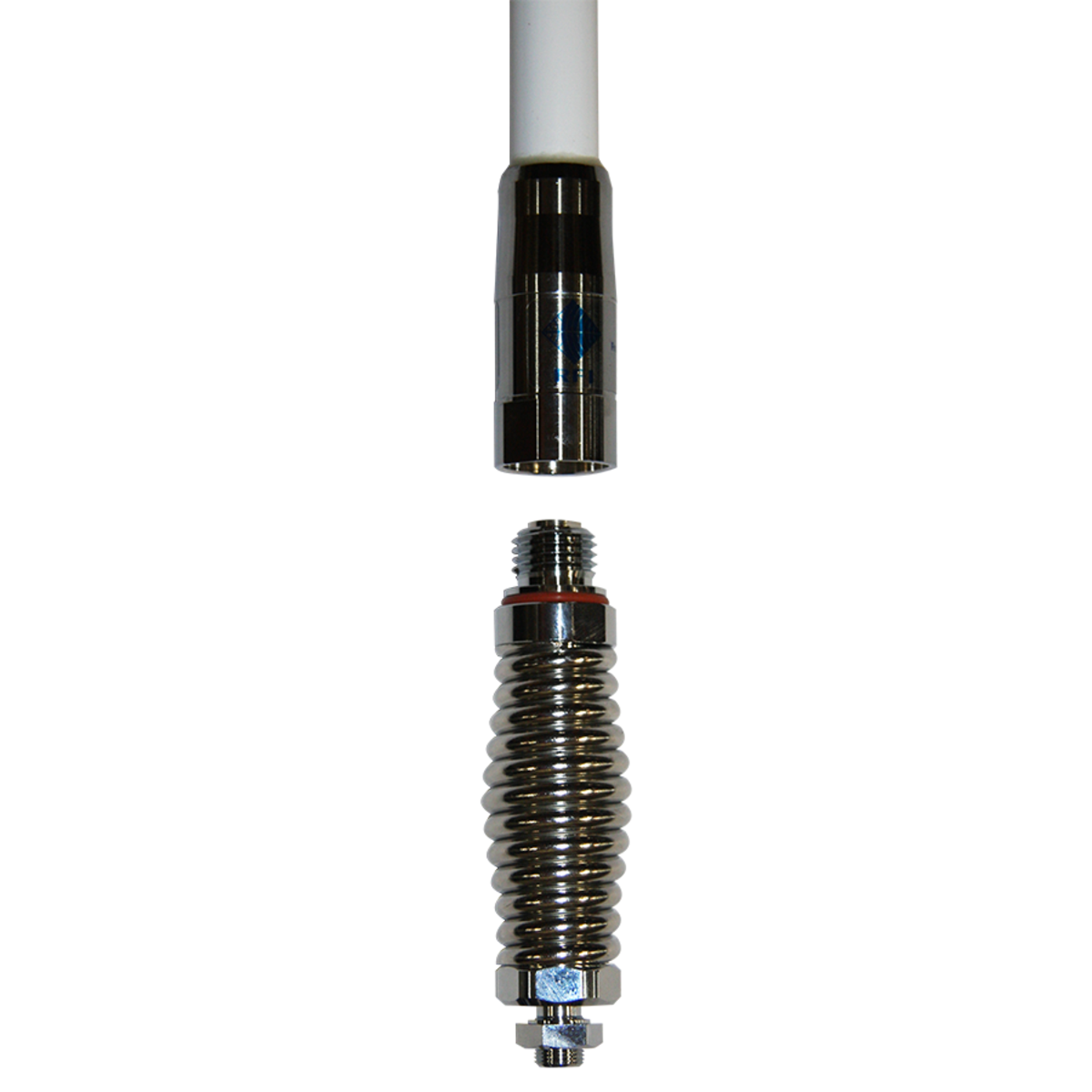

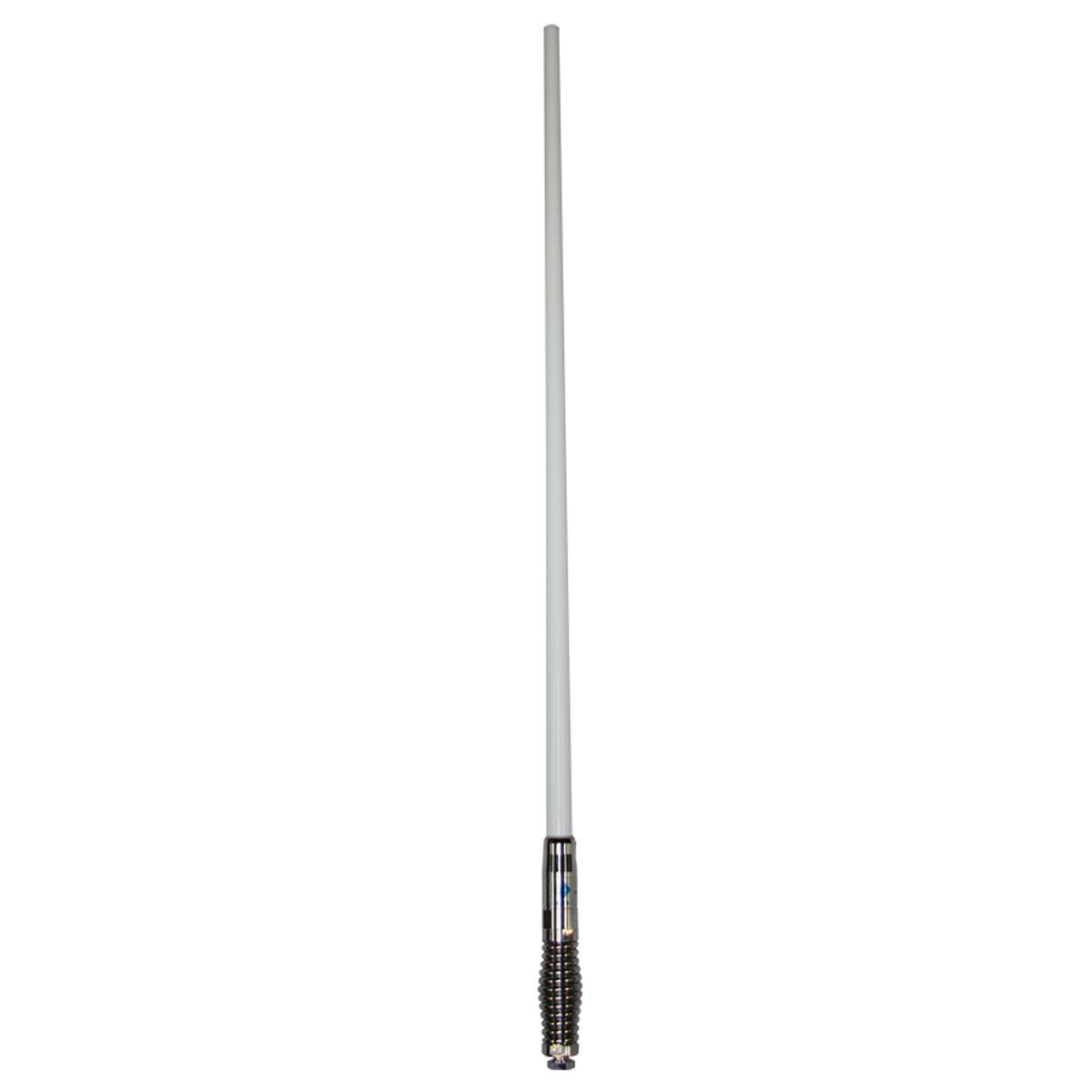

Features: The CDQ5000 & CDQ8000 employ the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed. With a heavy-duty electro-polished stainless steel spring, the CDQ5000 and CDQ8000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four-wheel drives and trucks. Features: -Patented PCB-based Meander™ collinear design offering the ultimate in pattern and gain stability. -5 dBi (CDQ5000) and 8 dBi (CDQ8000) gain across the full 477 MHz UHF CB band. -Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
Specifications:
| Packaging | Cardboard tube |
| Whip Material | PCB radiating element housed in tapered high impact fiberglass |
| Cable And Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Tuning | Supplied pre-tuned |
| Band | 477MHz |
| Frequency Range | 470 – 490 |
| Power w | 25 |
| Nominal Gain Dbi | 8-Apr |
| VSWR | <1.5:1 |
| Radome Diameter Mm | 22.5 – 15.6 |
| Tuned bandwidth | Full. No tuning required |
| Frequency MHz | 477 |
| Length [mm] | 2080 |
| Brand | RFI |
