Description

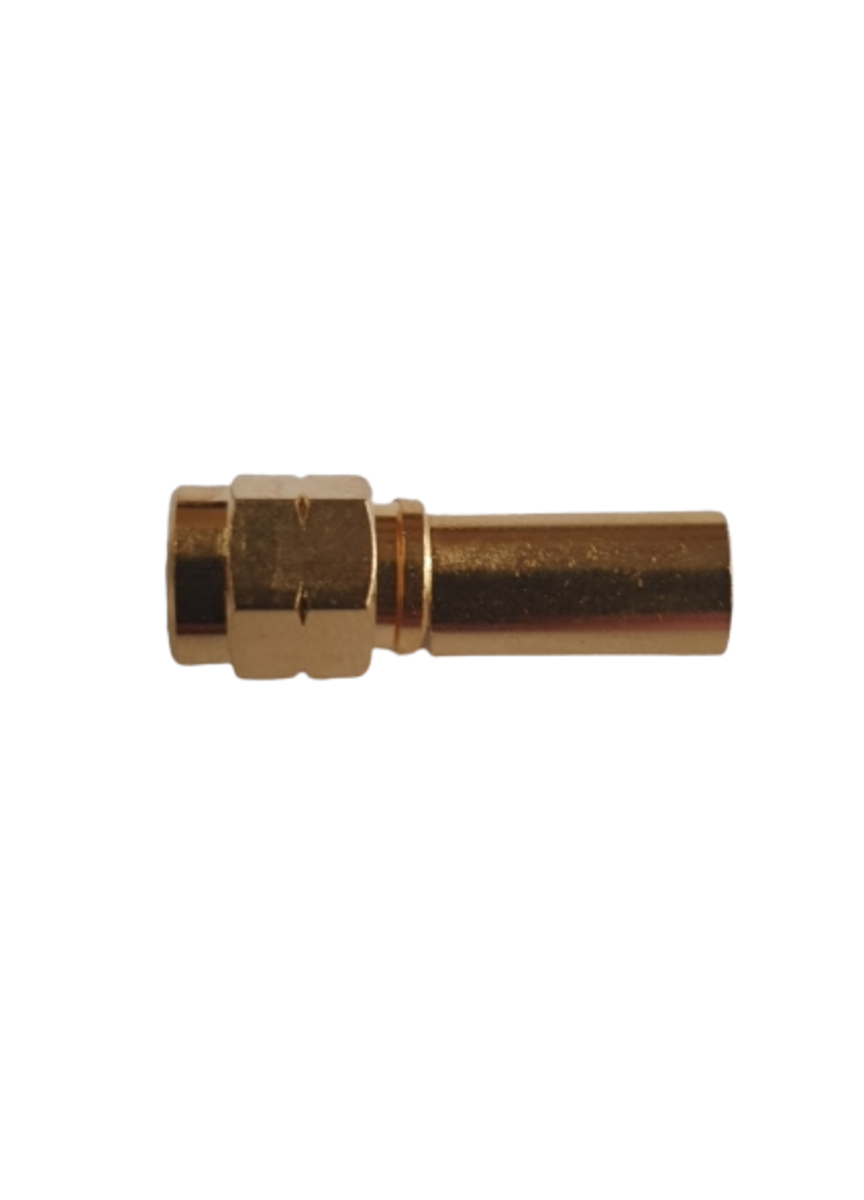

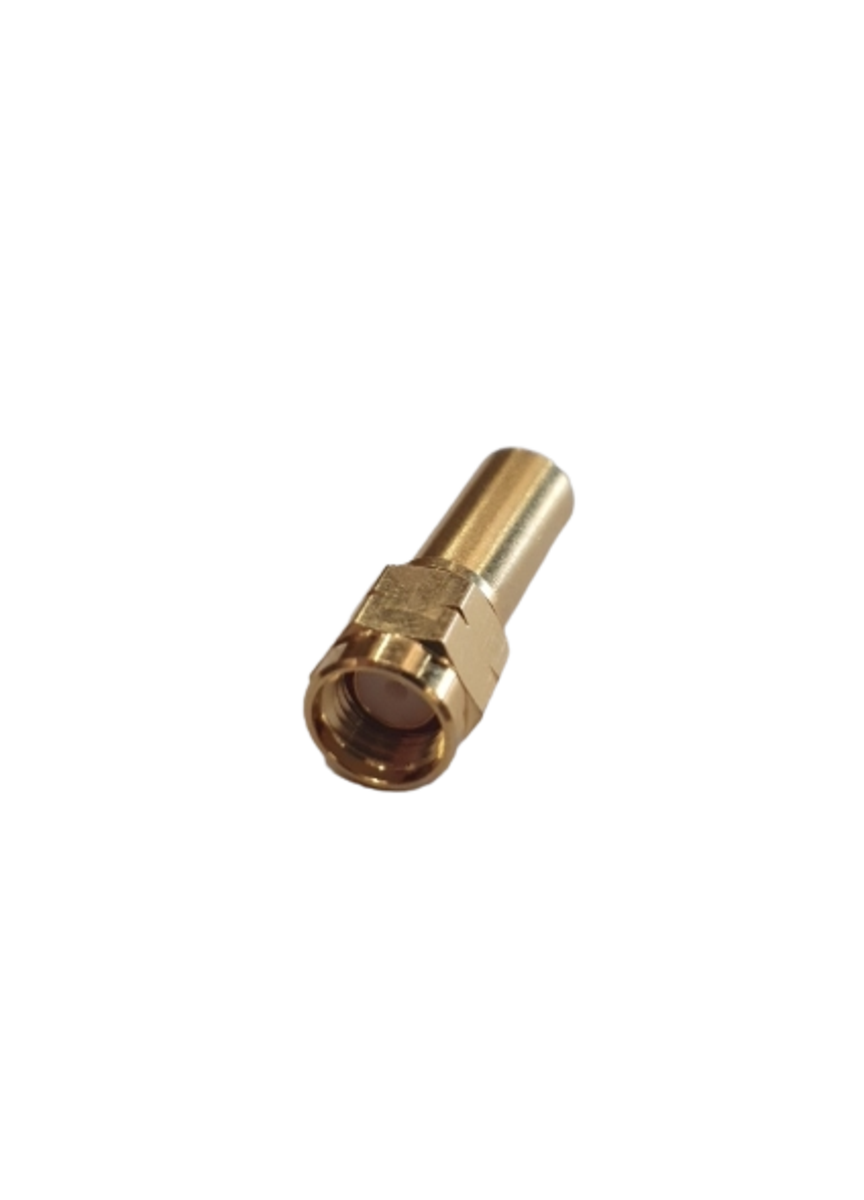

PULSE® SMA Series coaxial connectors are semi-precision, sub-miniature devices that provide repeatable electrical performance from DC to 12.4GHz with flexible cable. Semi-rigid cabling extends the frequency range of the device to 18GHz.

These devices offer broadband performance with low reflection and constant 50ohm impedance. These properties, along with minimum attenuation and low VSWR have made SMA extremely popular in the microwave community.

SMA design parameters have incorporated the considerations of balancing cost, size, weight and performance to yield the best value in your microwave system.

Among typical applications are components such as dividers, mixers, amplifiers, trimmers and attenuators. SMA connectors are also used to provide interconnections from printed circuit board striplines to coaxial cable.

Specifications:
