Description

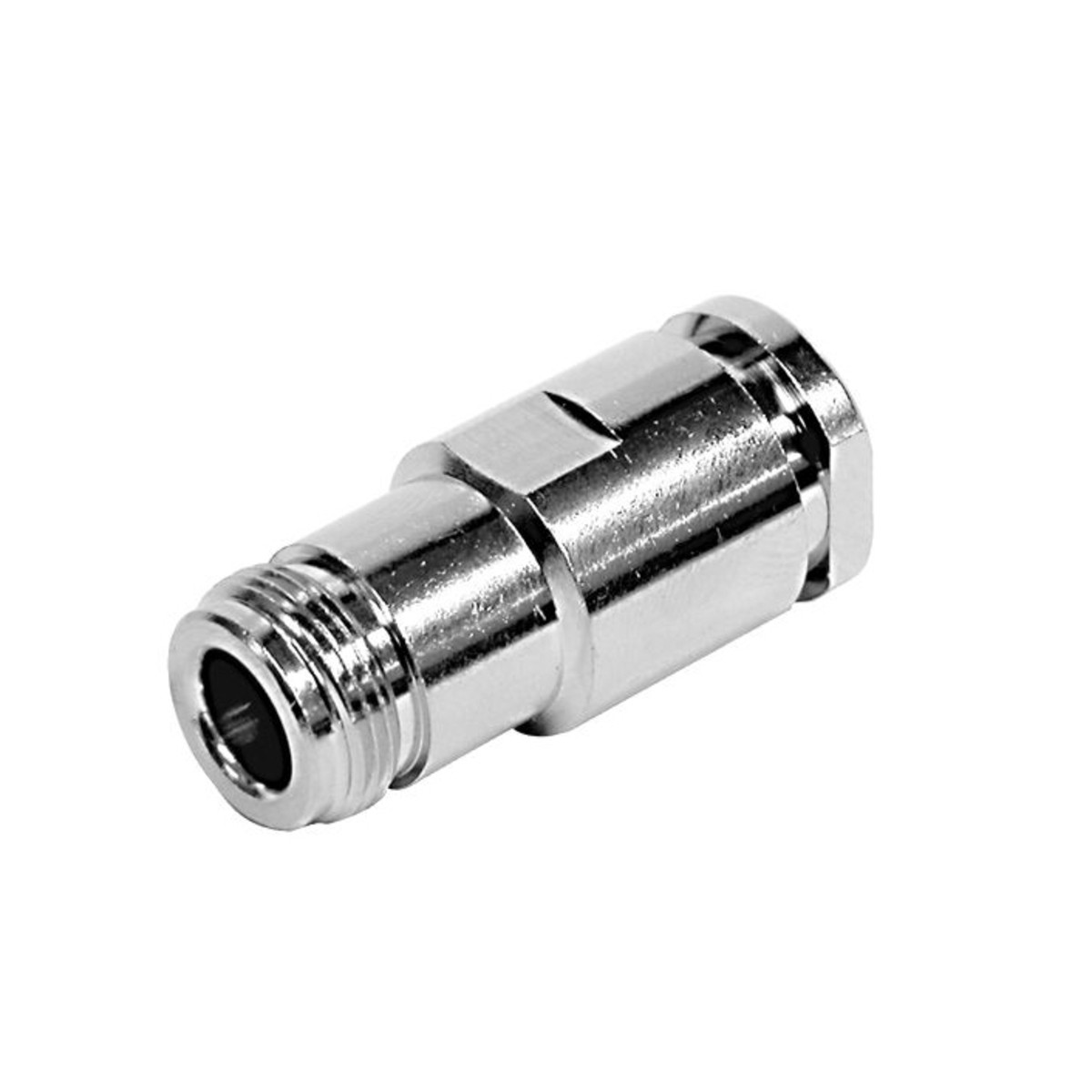

Features: * All listed N connectors feature the standard 50 Ohm interface dimensions. 75 Ohm interface dimensional connectors and an expanded range of other N connectors are available. N-28 – Clamp – Nickel
Specifications:
| Cable Type Connectors | RG213 , RG214 |
| Thermal Shock | MIL-STD-107 Test Cond B |
| Salt Spray | MIL-STD-101 Test Cond B |
| Cable Retention | 40 lbs min |
| Coupling Nut Retention | 100lbs Max |
| Durability | 500 matings |
| Mating | 5/8″ – 24 threaded coupling |
| Outer Contact | Clamp |
| Centre Contact | Brass, Plating Gold |
| Vibration | MIL-STD-202 Test Cond B |
| Impedance | 50 |
| Crimp Set or Tool | CST-213 |
| Centre Conductor | Solder |
| Cable Type | RG213, RG214 |
| Operational Temperature Range | -65°to 165°C |
| Connector | N(F) |
| Brand | Pulse |
| Component Type | Connector |
