Description

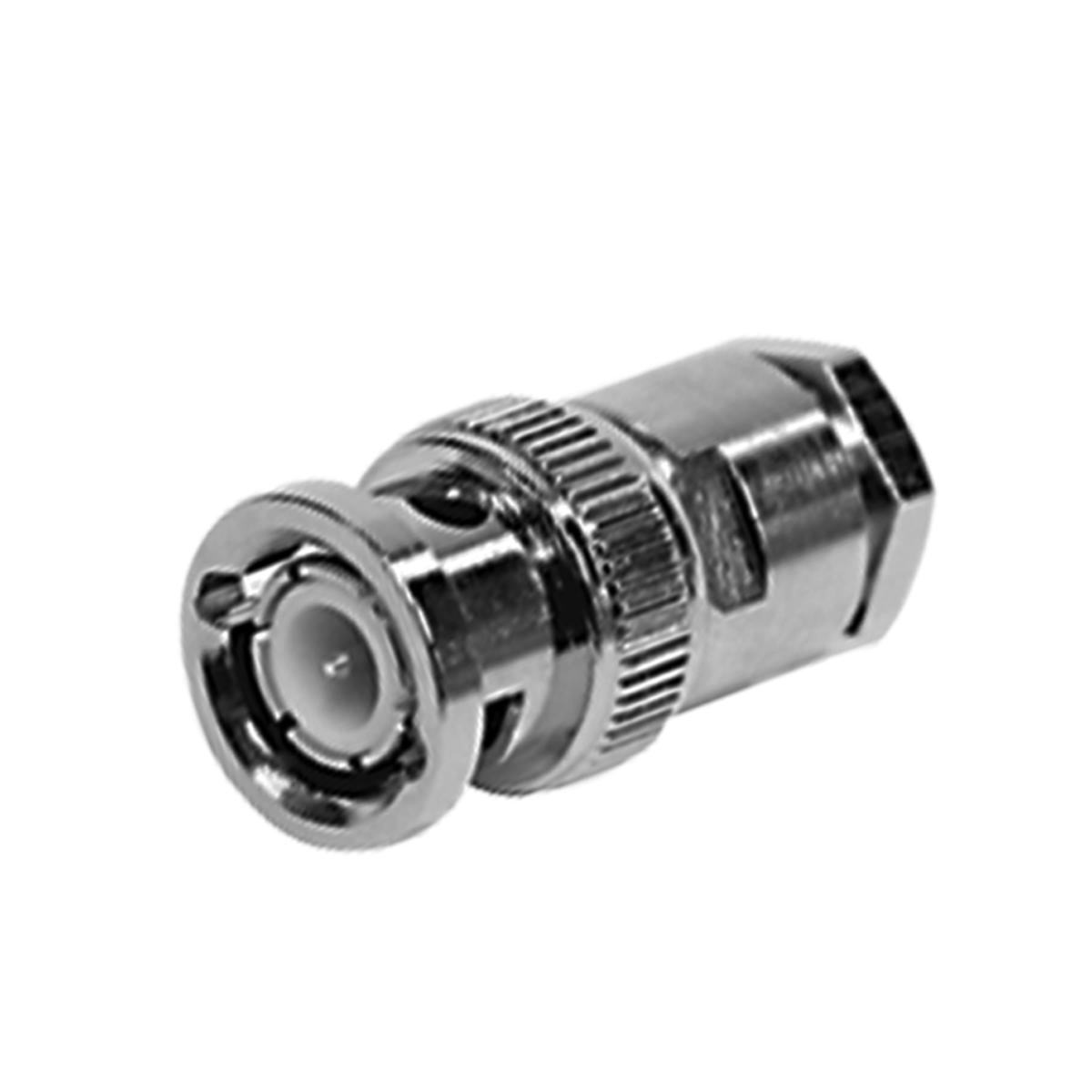

PULSE® BNC Series coaxial connectors are one of the world’s most popular RF connectors. They are miniature, light-weight and can operate satisfactorily up to 11GHz. The BNC is typically used in applications from DC to 4GHz and yields a low VSWR in this frequency range.
Cable terminations are available in crimp, clamp, solder and jacket quick-twist configurations. The two-stud bayonet lock coupling provides ease of connecting and disconnecting and is ideally suited for applications such as test equipment where this feature is notably significant.
BNC connectors are most prevalent in computer networking, audio, data processing and telecommunications equipment because of their size and relatively low cost.
Specifications:
| Max Frequency | 4 GHz |
| Cable Type Connectors | RG58 |
| Thermal Shock | MIL-STD-107 Test Cond B |
| Salt Spray | MIL-STD-101 Test Cond B |
| Cable Retention | 40 lbs min |
| Coupling Nut Retention | 100lbs Max |
| Durability | 500 matings |
| Mating | Two stud bayonet coupling |
| Outer Contact | Clamp |
| Centre Contact | Solder |
| Vibration | MIL-STD-202 Test Cond B |
| Impedance | 50 Ohm |
| Cable Type | RG58 |
| Operational Temperature Range | -65°to 165°C |
| Connector | BNC(M) |
| Brand | Pulse |
| Component Type | Connector |
