Description

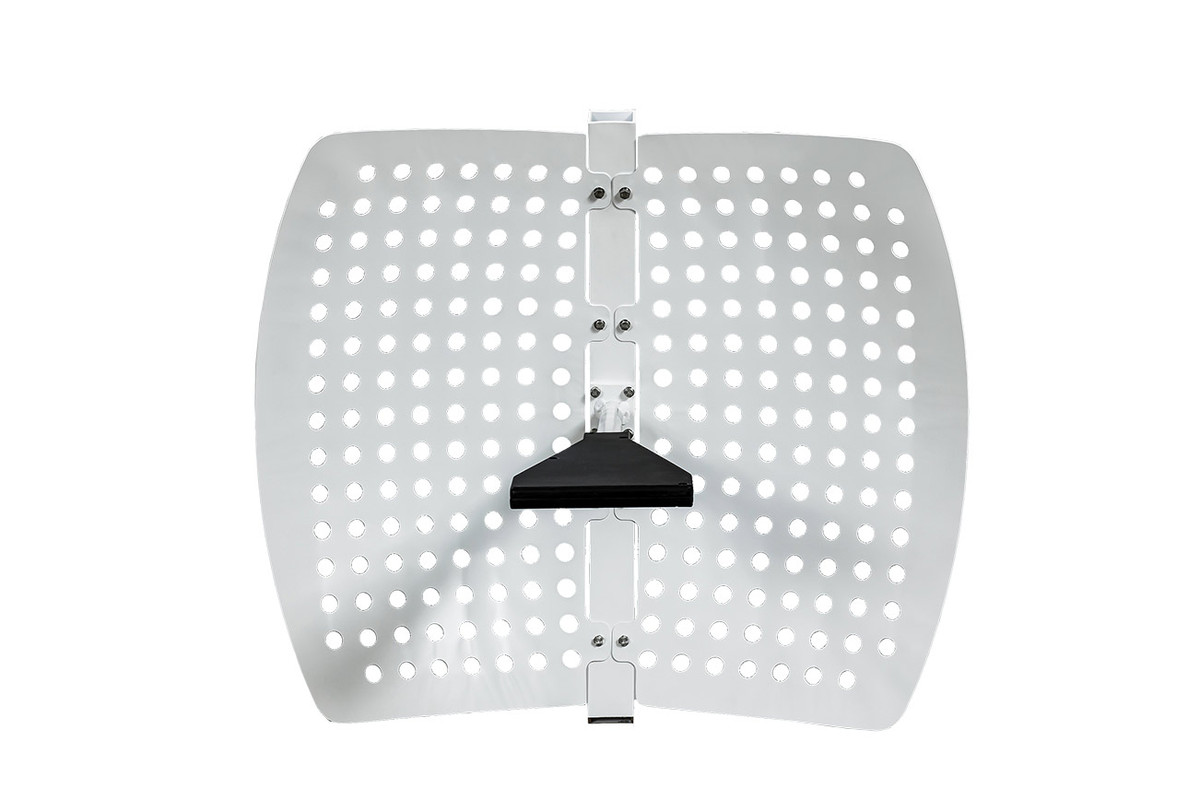

This mesh mini-grid is a lightweight yet ruggedized parabola grid providing highly reliable point-to-point communication.
Utilizing PCB manufacturing techniques, this grid offers best in class reliability and performance, with Low PIM performance, high reliability as well as pattern stability and more importantly, repeatability.
Although highly durable in design, wind loading and weight have been reduced, through respective design elements, including tubular aluminum, and lightweight, UV stabilized ABS radome and PCB element.
The integrated mounting clamp offering full articulation and polarisation adjustment; offering more assistance and reduction in time during installation.
Features:
- Full band solution, 698-3800MHz coverage
- Vertical, Horizontal or ±45 linear polarisation
- Easy installation
- Clamp options available
- Lightweight yet durable design
Specifications:
| Power Rating Watts | 50 |
| Connector | 4.3-10(F) |
| Frequency Range | 694 – 3800 |
| Wind Load (Thrust) @ 160km/h N | 240 |
| Power w | 100W |
| Nominal Gain Dbi | 10/21/24 |
| Dimensions | 670 x 670 x 400 |
| Polarisation | Linear |
| VSWR | 2.0:1 |
| Termination | 0.5 meters RG142 cable terminated with 4.3-10 female |
| Construction | Aluminum |
| Passive IM 3rd Order (2x20W) dBc | -140 |
| Horizontal Beamwidth | 27/13/9 |
| Front Back ratio dB | 15/30/30 |
