Description

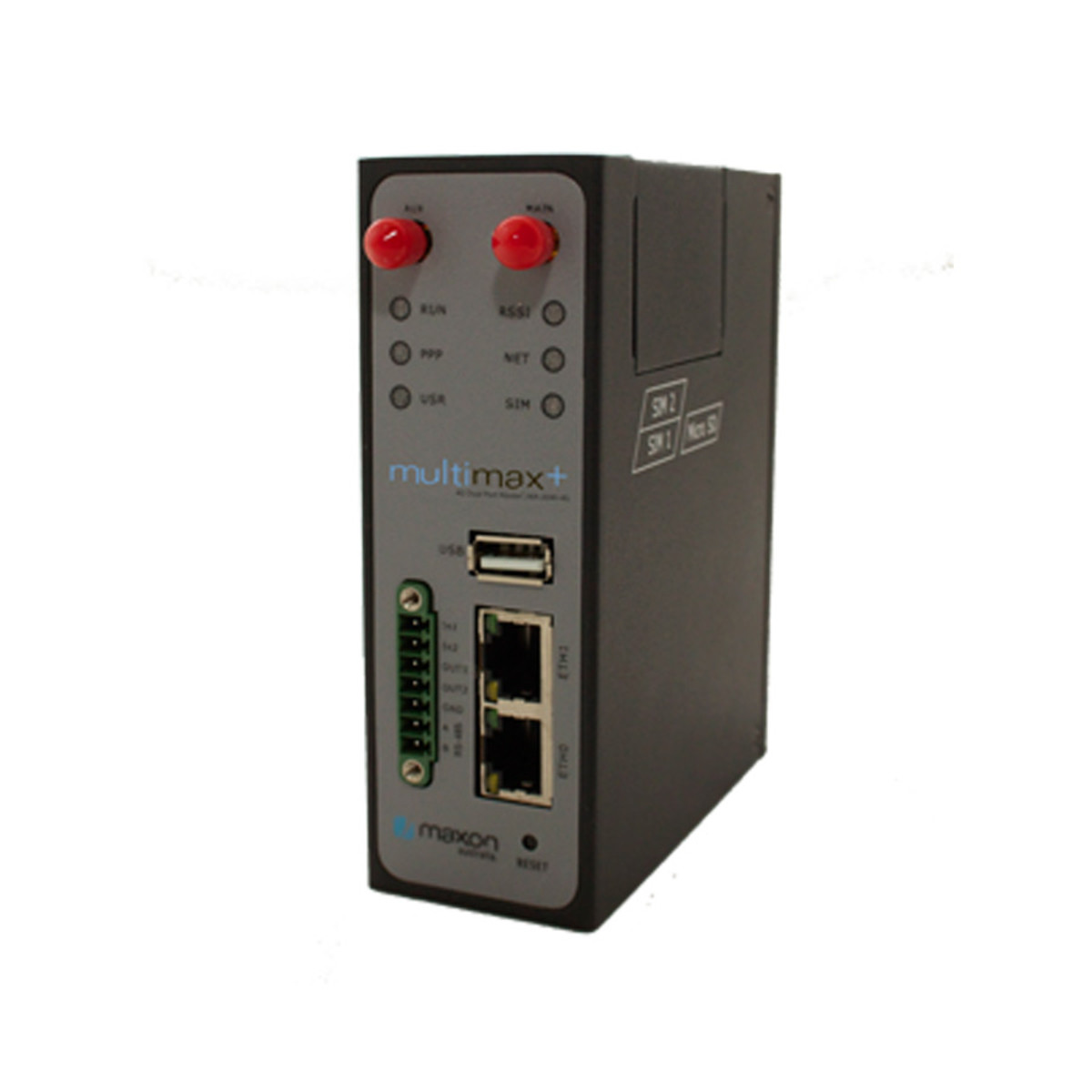

RFI’s Maxon brand of industrial modems are the perfect solution for your next IoT or M2M application.
Key Features:
- Band 28 – 150 Mbps Downlink, 50 Mbps Uplink
- Dual-SIM redundancy
- 2 x Configurable Ethernet ports (LAN+LAN or LAN+WAN backup)
- 1 x RS232, 1 x RS485, 1 x USB 2.0 host
- 2 x digital inputs, 2 x digital outputs
- Supports FOTA
- Supports DDNS
- Supports SMS Remote Control
- Supports SSH, TCP Server, TCP Client, UDP Server, UDP Client, FTP Client
- Built-in IP stack
- 6 x LEDs – 2 x SMA Antenna (Main and Diversity)
- Robust metal enclosure with flexible mounting options
- Supports Modbus/RTU to Modbus/TCP gateway
- Wide Input Voltage Range (9-60V)
Kit includes:
1 x (MA-2040-4G) Modem
2 x (ANT-SMA(M)) Antenna
2 x (CON-4225) Phoenix (7 Pin) Connector
1 x (CON-4235) Phoenix (3 Pin) Connector
1 x (CAB-5620) Ethernet Cable
1 x Phoenix (7 Pin) Connector to DB9 (Female) Serial Cable
1 x (MA-5825) Wall Mounting Kit OR (MA-5725) DIN Mount
Kit Note: For external PSU please refer to PWR-4315 (not supplied in Kit)
Specifications:
| Power Input | 9~60 VDC |
| Humidity Non-Condensing | 5-95% |
| RF Connectors | SMA Female |
| Frequency | LTE FDD: B1(2100MHz), B2(1900MHz), B3(1800MHz), B5(850MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B28(700MHz) DC-HSPA+/HSPA+/HSPA/WCDMA: B1(2100MHz), B2(1900MHz), B5(850MHz),B8(900MHz) EDGE/ GPRS/GSM: B2(1900MHz), B3(1800MHz), B8 (900MHz), B5(850MHz) |
| Dimensions | 125x108x45mm |
| Operating Temperature Range [°C] | -35°C – 75°C |
| IP Rating | IP30 |
| Brand | Maxon |
| Weight [kg] | 0.57 |
