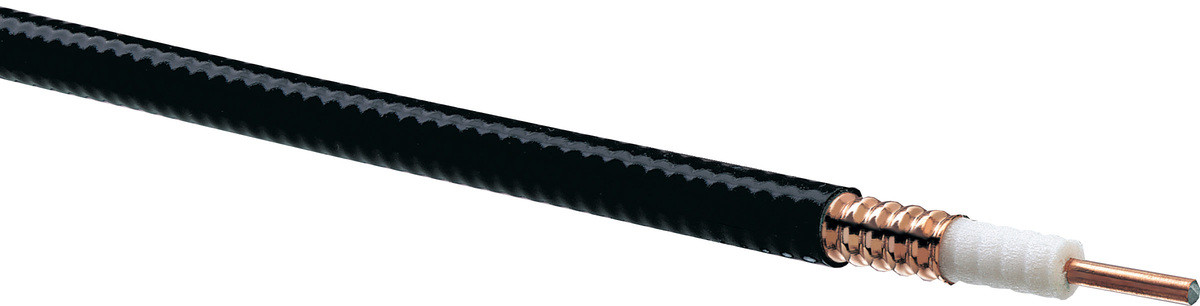

Description
Flexibility: Standard
Jacket Color: Black
Diameter Over Dielectric: 12.954 mm | 0.51 in
Diameter Over Jacket: 16.002 mm | 0.63 in
Inner Conductor OD: 4.826 mm | 0.19 in
Outer Conductor OD: 13.97 mm | 0.55 in
Nominal Size:1/2″
Cable Impedance: 50 ohm ±1 ohm
Capacitance: 75.8 pF/m | 23.104 pF/ft
dc Resistance, Inner Conductor: 1.48 ohms/km | 0.451 ohms/kft
dc Resistance, Outer Conductor: 2.69 ohms/km | 0.82 ohms/kft
dc Test Voltage: 4000 V
Inductance: 0.19 µH/m | 0.058 µH/ft
Insulation Resistance: 100000 MOhms-km
Jacket Spark Test Voltage (rms): 5000 V
Operating Frequency Band1 – 8800 MHz
Peak Power40 kW
Velocity 88%
Specifications:
| Cable Type | 1/2″ |
| Brand | Commscope |
| Component Type | Cable |
