Description

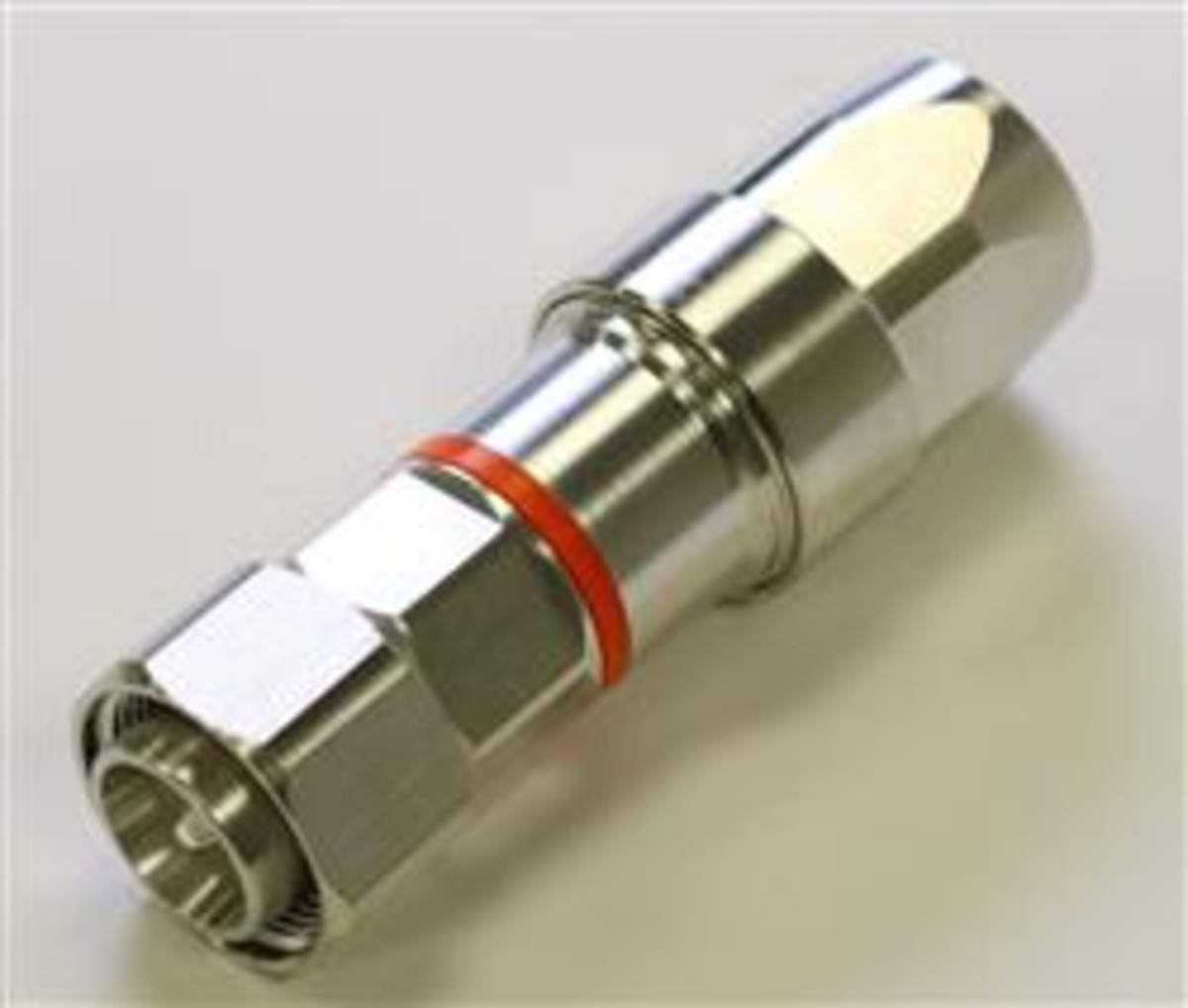

General Specifications Interface 4.3-10 Male Body Style Straight Mounting Angle Straight Ordering Note CommScope® standard product (Global) Electrical Specifications Connector Impedance 50 ohm Operating Frequency Band 0 – 8800 MHz Average Power at Frequency 600.0 W @ 900 MHz Cable Impedance 50 ohm 3rd Order IMD Dynamic Test Method Two +43 dBm carriers 3rd Order IMD, typical -116 dBm @ 910 MHz RF Operating Voltage, maximum (vrms) 884.00 V dc Test Voltage 2500 V Outer Contact Resistance, maximum 1.00 mOhm Inner Contact Resistance, maximum 1.00 mOhm Insulation Resistance, minimum 5000 MOhm Peak Power, maximum 22.50 kW Insertion Loss, typical 0.05 dB Shielding Effectiveness -110 dB

Specifications:
