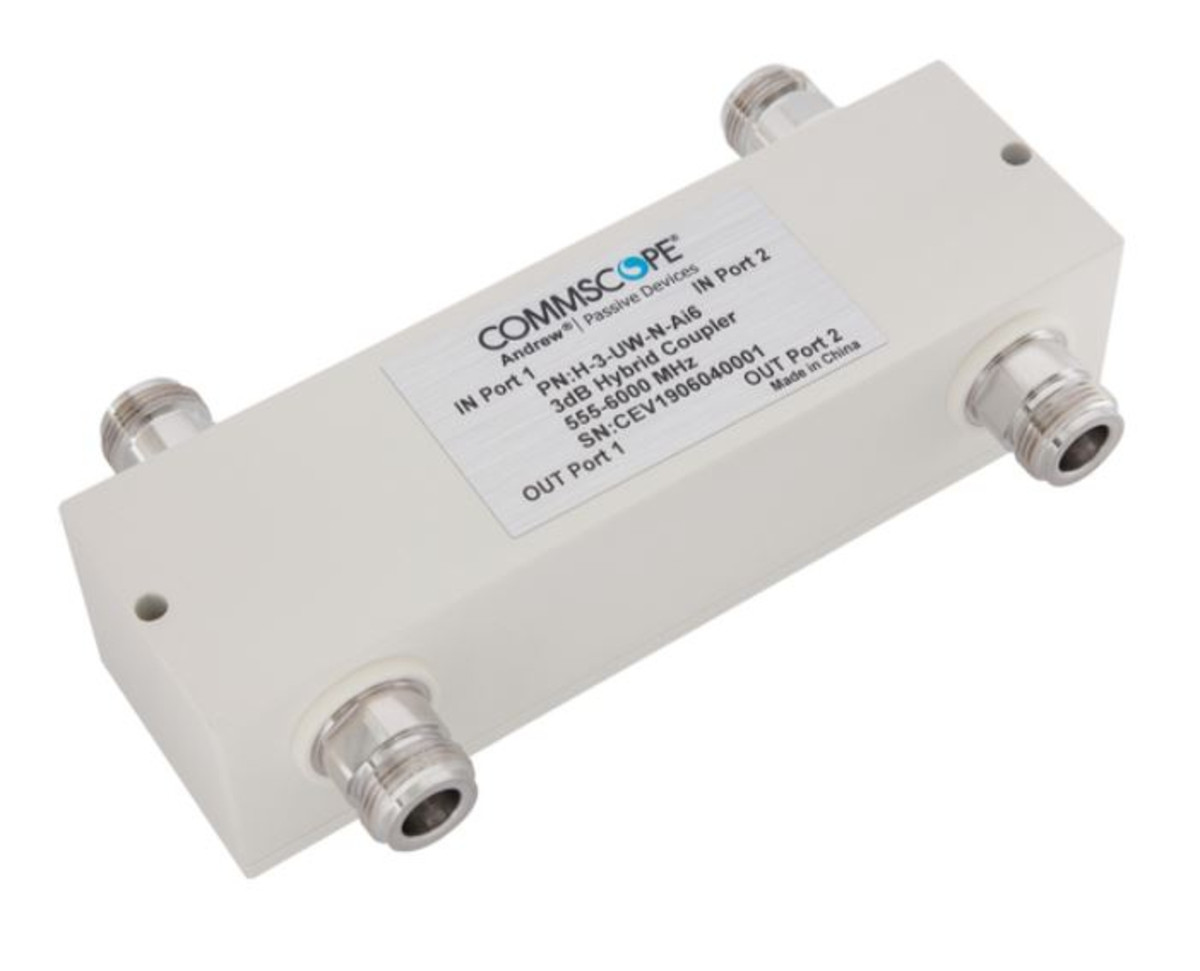

Description
General Specifications
Device Type:Hybrid
Application:Indoor/Outdoor
Colour:White
Inner Contact Plating:Silver
Interface:N Female
Outer Contact Plating:Trimetal
Dimensions
Height:36 mm
Width:79 mm
Length:145 mm
Electrical Specifications
3rd Order IMD:-163 dBc
3rd Order IMD Test MethodTwo +43 dBm carriers
Average Power, maximum200 W
Coupling3.1 dB
Coupling Tolerance±0.7dB @ 610-6000 MHz | ±1.1dB @ 555–610 MHz
Impedance50 ohm
Isolation Between Bands20 dB
Operating Frequency Band555 – 6000 MHz
Peak Power, maximum1 kW
Reflected Power, maximum200 W
VSWR1.25
Specifications:
| Band | 555-6000 |
| Connector | N(F) |
| Brand | Commscope |
| Component Type | Hybrid Coupler |
