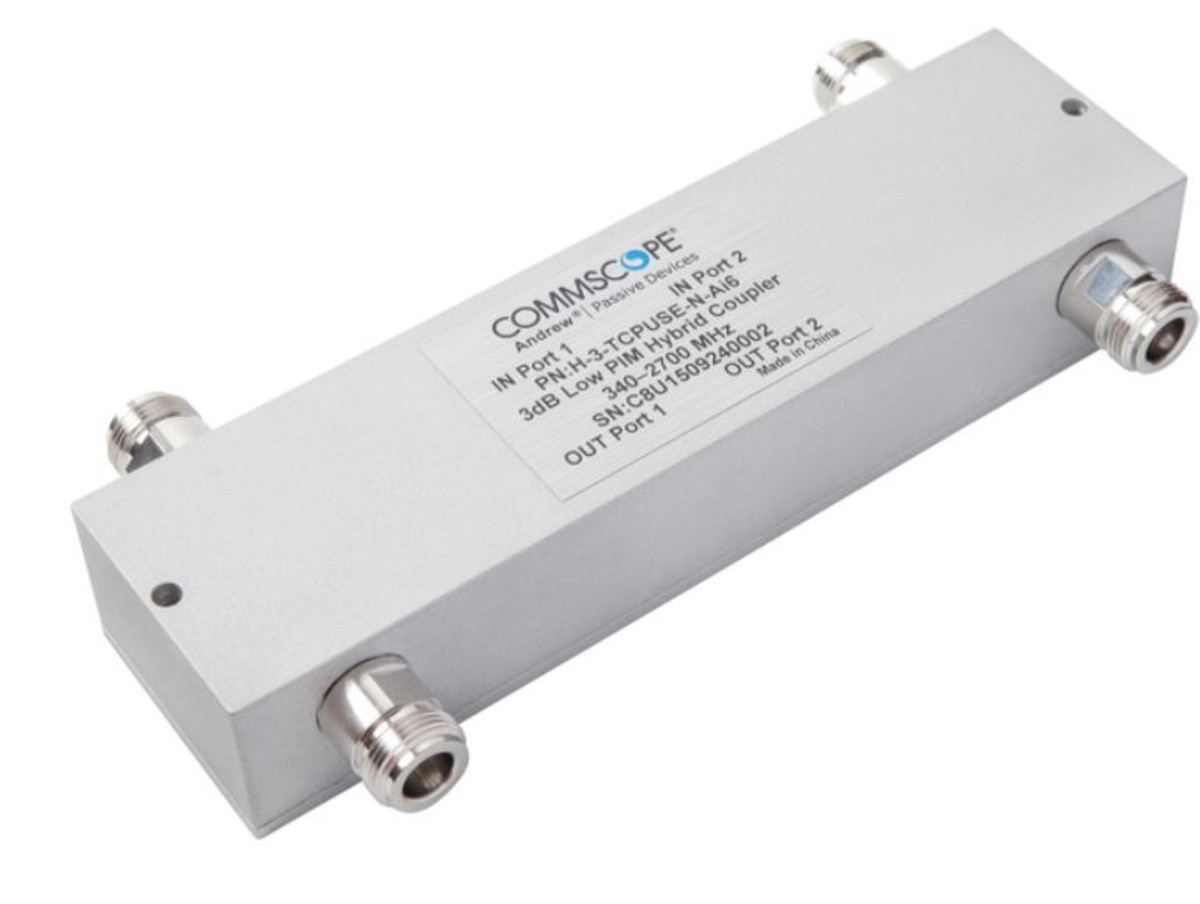

Description

General Specifications Device Type Hybrid Application Indoor/Outdoor Color Silver Inner Contact Plating Silver Interface N Female Outer Contact Plating Trimetal Dimensions Height 32 mm | 1.26 in Width 85 mm | 3.346 in Length 184 mm | 7.244 in Electrical Specifications 3rd Order IMD -160 dBc 3rd Order IMD Test Method Two +43 dBm carriers Insertion Loss at Frequency Band 0.3 dB @ 340“2700 MHz Return Loss, minimum 20.8 dB Average Power, maximum 200 W Coupling 3.1 dB Coupling Tolerance ±1.4dB @ 340“380 MHz | ±0.9dB @ 380“2700 MHz Impedance 50 ohm Isolation at Frequency Band 23 dB @ 340“2700 MHz Operating Frequency Band 340 “ 2700 MHz Peak Power, maximum 1 kW Reflected Power, maximum 200 W VSWR 1.2
