Description

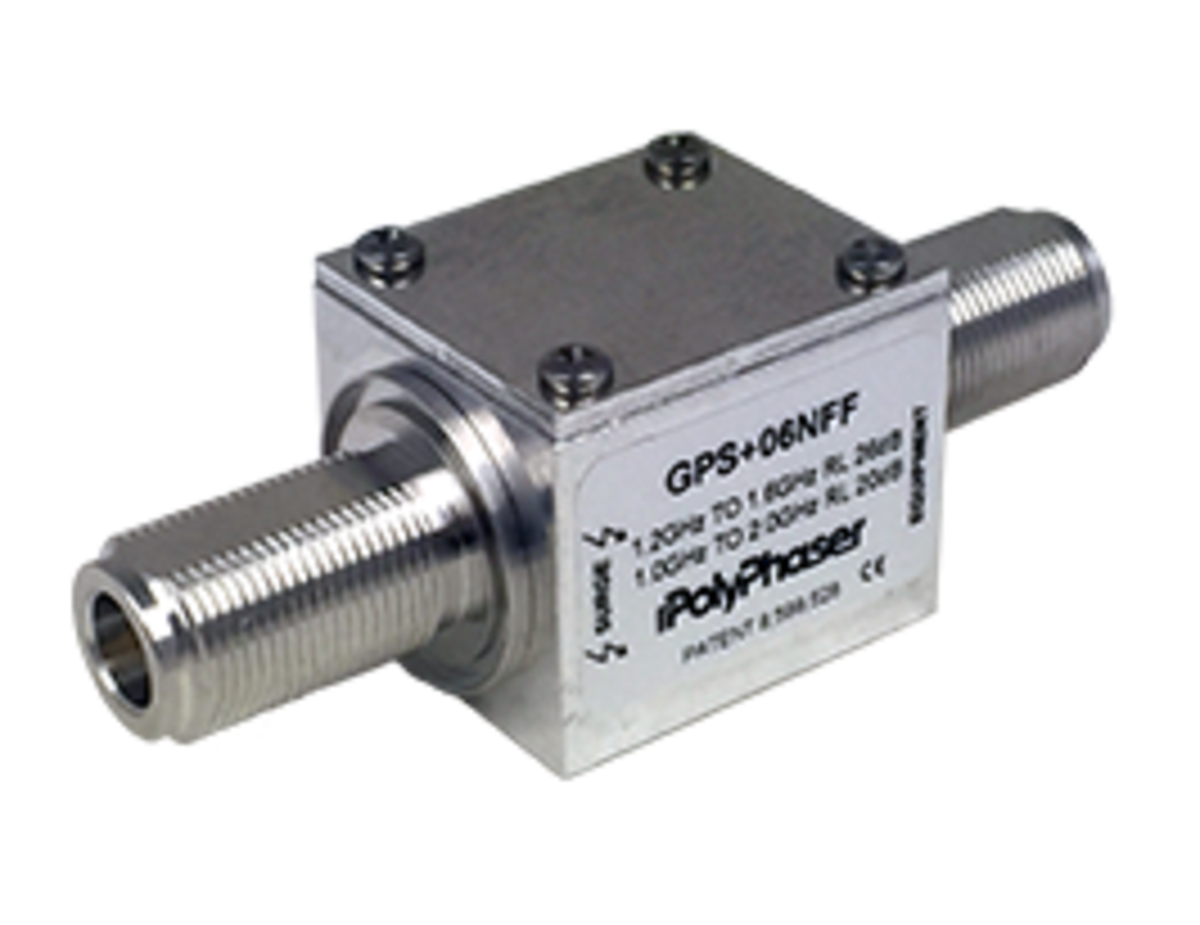

This utilizes best-in-class SASD surge technology within this family of DC Pass GPS surge protectors, ensuring dependable and repeatable lightning protection without degradation. The GPS+06 series is Bi-directional with multiple connector options including SMA option, packaged in an IP67 weatherized housing with bulkhead mount. This family can handle 4A current, 10W power, with very low insertion loss, and a 10kA multiple strike capability. Kit includes 1 x GPS+06NFF 1 x silicone O-Ring 019 1 x washer 5/8 410SS 1 x nut 5/8-24 303 Hex SS 1 x ring term 5/8 stud 6AWG
Specifications:
| Insertion Loss dB | ? 0.1 dB |
| Operational Temperature Range | -50°C to +85°C |
| Frequency Range | 1200 – 1600 |
| Dimensions | 88.1 x 31.8 x 33.1 mm (LxWxH) |
| VSWR | ? 1.1:1 |
| Brand | PolyPhaser |
