Description
Pulse Hybrid Couplers offer a low-cost solution for hybrids covering cellular bands from 694 to 2700MHz, with low loss Passive Inter-Modulation performance and high isolation. Typically used to combine either in-band carriers or carriers across multiple bands to be fed into antenna feeders or in-building Distributed Antenna Systems.

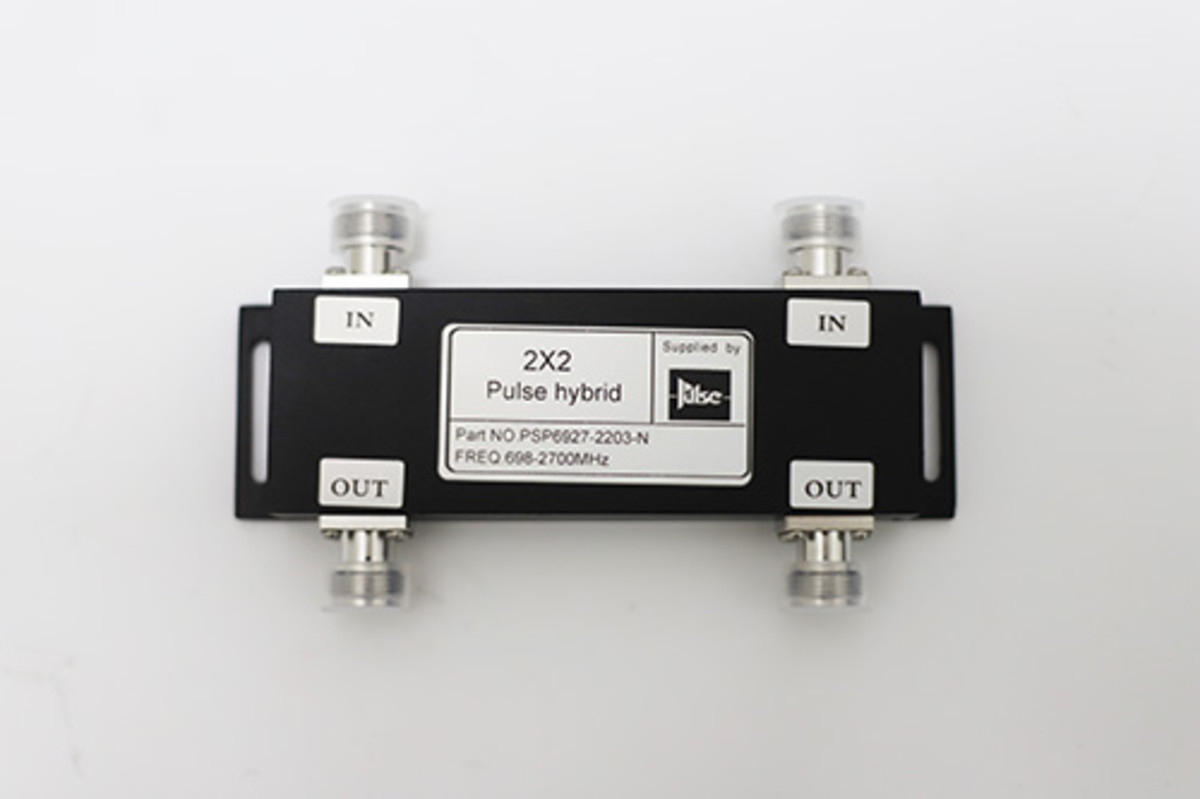

PSP6927-2203-N Features: -Broadband 698-2700MHz covering all cellular bands.
-4 port, 2×2 hybrid coupler -Low Insertion Loss -Good isolation (Ports 1 & 2) across full bandwidth >23dB -Suitable for use in high power multi-carrier transmission systems -Manufactured to a low PIM ‰¤ -150dBc (3rd Order 2x43dBm carriers) rating -100W per port power rating -4×4 option available
Specifications:
| Finish | Black – Painted |
| Connector Types All Termination Ports | N (F) |
| Power Rating Watts | 100W per port |
| Operational Temperature Range | -40° C to +60° C / -40° F to 140° F |
| Connector | N(F) |
| Frequency Range | 698 – 2700 |
| Weight [kg] | 0.75 |
| Component Type | Hybrid Coupler |
